Glass vertical drilling machine is controlled by computer. In actual operation, Just put the glass on the transmission belt, input drilling position data, and press the start button the machine will automatically position itself and finish all drilling operation, and automatically stop when the work is completed. It featuring high drilling efficiency and accurate position, suitable for the processing of building glass and furniture glass.

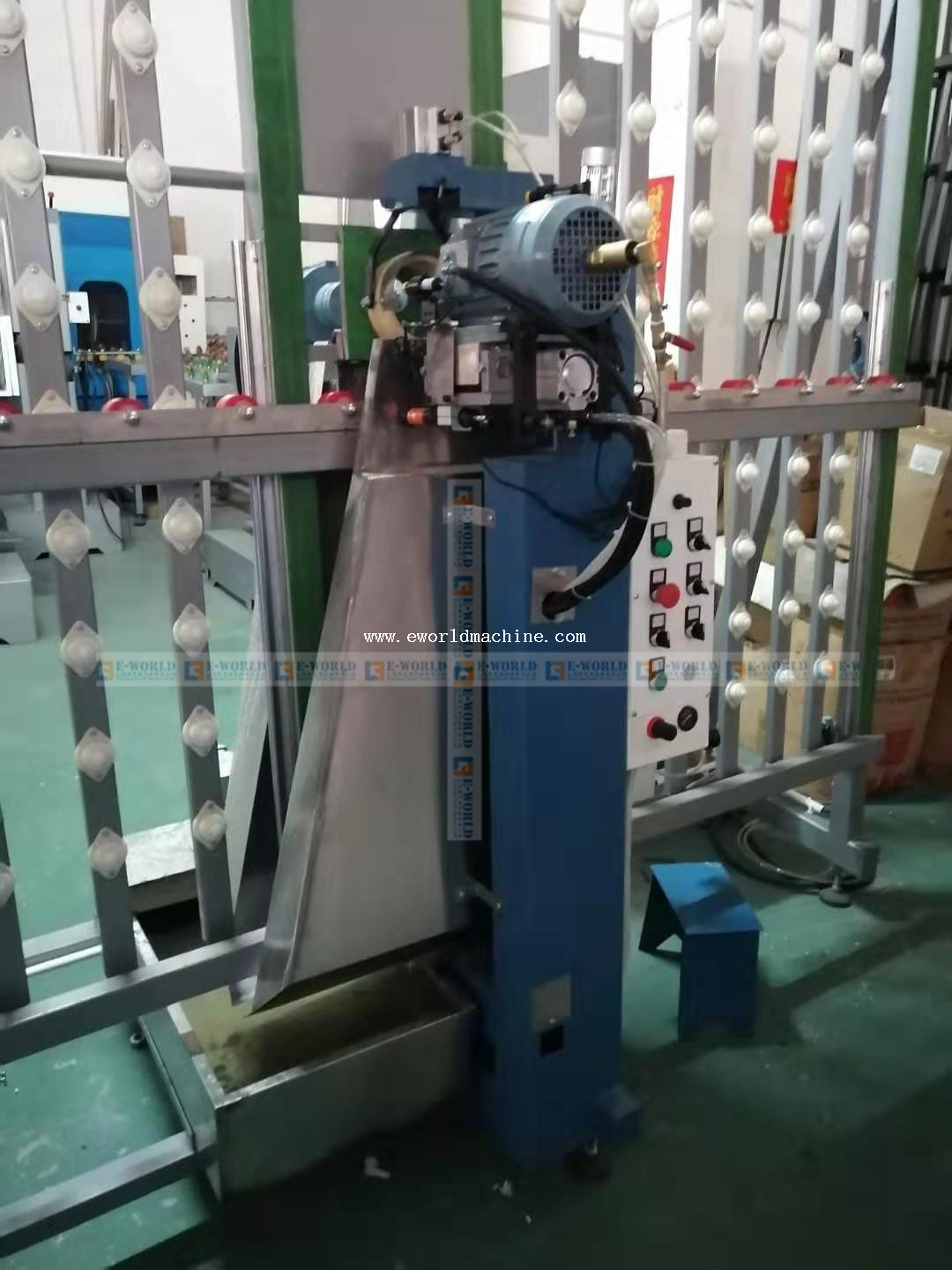

Vertical Glass Drilling Machine
1. Power supply: 3-Phase, Voltage: 415V/380/220V, Frequency: 50/60Hz, as required Total installed power: 5.75 kW
2. Air pressure: 0.6MPa-0.8MPa
3. Max. Glass height: 2500mm
4. Min. Glass size: 500mm× 200mm (horizontal loading)
5. Glass thickness: 3-25mm
6. Drilling hole diameter: Φ 4mm-Φ 60mm
7. Glass moving (X-axis) speed: 6.0m/min
8. Drills moving (Y-axis) speed: 6.0m/min
9. Drilled hole distance accuracy: Not less than ± 0.5 mm (L not more than 1000mm)
10. Glass inlet and outlet conveyor: Timing belt (Can drill the bottom corner hole)
11. Drills structure: 60° Taper and G1/2"screw combined diamond drills
12. Operation method: Manual loading glass then input X-axis and Y-axis parameter then start the button, glass positioning automatically then hole drilling automatically. After drilling finish, glass move out to the outlet conveyor and machine stop automatically
13. Control system: PLC and servo system with roller screw, L/M guide rail and timing belt structure
14. Touch screen: Is for setting, controlling and displaying the drilled parameter.
15. Overall dimension: 7000mm× 2000mm× 3700mm
16. Total weight: 2500kg
*20years factory production experience*3 years machine warranty
*156 exported country experience
*20000 square meters Glass machine&upvc windows machine factory
*Shandong Eworld Machine Co., Ltd.
Shandong Eworld Machine Co., Ltd. is one of the famous and big manufacturers of glass equipment, windows equipment, CNC equipment.
Since its inception in 2002, and after many years of development and growth, the company is now playing a leading role in glass machinery and windows door machine inChina Eworld group has 2 factories, which are located in Jinan City. Advanced products, exquisite techniques, solid working, and cordial services
About glass deep processing machines, we are professional and have full set certificates.For every glass cutting machine, we have
serious quality control for every machine and every parts before it leaves our factory.
We went to many exhibitions in China to expand our reputation.
Welcome to visit our factory!If you have plan to come to China and see our machines, please contact us at least 15 days in advance
then we can arrange our
schedule and arrange to treat you.
No matter which transport method you choose, we will pick up you.
If you have any questions, please feel free to contact us.
24*7, we always be here !
FAQ
Question:Are you manufacture?
Answer:Yes,we are the professional manufacture which have more than 5 workshops.
Question: How about the service ?
Answer:
1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour
2).deliver max. days within 15 days
3).24 hours for after -sale serive
4).more than 12 years experience in this kind machine field
5).fluent english ,communication barrier free
Question:What’s the guarantee ?
Answer:
1).Our guarantee for 18 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).2 year quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.
Q: Do you provide equipment operation training?
Answer:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. Allof our engineers have passport.
Question:if our price is higher than another company or factories ?
Answer:please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts,sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous andreliable parts for the machines inside.
Question:How long is the delivery time ?
Answer:For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
Question: What is the payment ?
Answer:Any payment method you want,such as L/C,T/T,D/P,West-union and so on.
