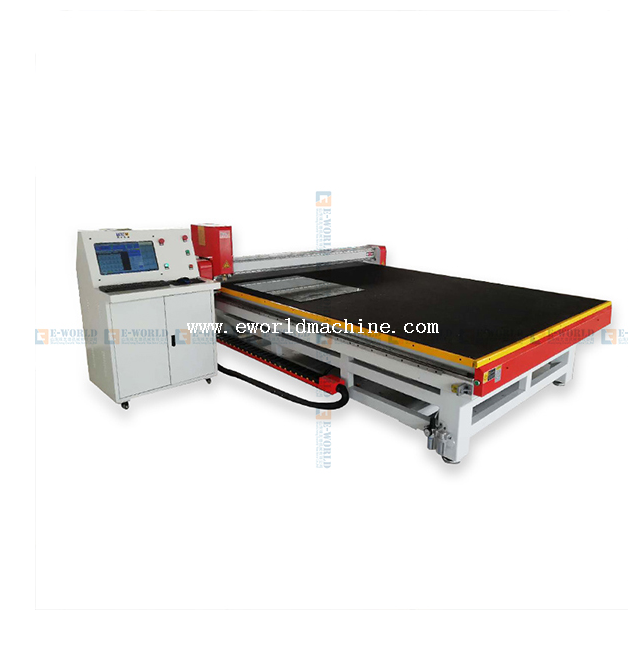

Flat, Curved, Shaped Glass CNC Cutting Machine

Overview

Quick Details

Applicable Industries: Manufacturing Plant

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location: None

Showroom Location: None

Condition: New

Machine Type: Glass Cutting Machine

Production Capacity: 100%

Place of Origin: Shandong, China

Brand Name: Eworld Machine

Voltage: 380v Or As request

Power: 15KW

Dimension(L*W*H): 4000*3200*1100mm

Weight: 2TONS

Certification: ce

Warranty: 1 Year

After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Key Selling Points: High-accuracy

Glass Thickness: 3-25mm

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Marketing Type: Ordinary Product

Warranty of core components: 1 Year

Core Components: Pressure vessel, Motor, Bearing, Gear, Engine, Gearbox, CNC

Name: Glass Cutting Table

Brand: Eworld Machine

Usage: Cut Glass

Electrical parts: Top configuration

Cutting optimization: Customers' Request

Cutting speed: 0-180M/min(Can adjust)

Seaport: Qingdao Seaport

Service: After-sales Service Provided

Automation range: CNC

Material: Stainless Steel

Supply Ability

Supply Ability: 5 Set/Sets per Month

Packaging & Delivery

Packaging Details: This one needs a 1*20' container

Port: Qingdao

Picture Example:

Lead Time:

Quantity(Sets)	1 - 3	>3
Est. Time(days)	25	To be negotiated

Product Description

Automatic High-Quality Glass Cutting machine

We are the manufacture of glass cutting machine. We have many kinds of glass cutting machines.

include manual glass cutting machine, T cutter,

Semi-automatic glass cutting machine,

NC glass cutting machine, CNC glass cutting machine,

CNC integrated glass loading cutting breaking machine,

CNC glass cutting line and so on.

This one is one type of CNC glass cutting machine.

Eworld Machine, Only gives high-quality machines to our customers.

Brief Introduction

CNC2620 is a high intelligence machine, which core components(Motors) all are designed and imported from Japan. Under sensor-controlled, glass automatically finds the glass edge in the X and Y directions.

Cutter will move to coordinate origin, and automatically start to cut according to the preinstall graph.

The operator can edit the glass size for cutting with the computer. The computer can optimize the cutting size(We provide an optimization system), and give out the data for processing.

Feature

1. Bed using thick wall pipe welding and become the high-temperature tempering treatment, ensure that the deformation is small, rigid good, the intensity is big.

2. The X, Y-axis adopt reliable motor drive(Two motors), selected pairing, ensure the smooth movement.

3. Using high precision level gear rack drive, high precision, speed and strength.

4. Adopts imported linear guide square, high precision, long life.

5. Mechanical and electrical full excellent design, selection of all kinds of electrical accessories, the failure rate drop

6. Software compatibility: compatible type3 / Artcam/Castmate/wentai and so on.Many kinds of CAD/CAM design software.

7. Performance worry about: a breakpoint renewal carving, power-off recovery, processing time prediction, and other functions, the real human nature design.

Eworld Machine, Only gives the best glass processing machinery to our customers.

Equipment

1. Equipped with imported cutter wheels and a set of setting tools.

2. A set of stability voltage power supply.

3. A set of best-optimized software.

4. A set of computer operating system (including a set of computer and cutting software)

Technical Parameters

1. The cutting thickness: 2~19mm(the thickness of 2~6mm and 8~19mm are different. The cutter wheels should be replaced and the pressure should be adjustable)

2. The cutting accuracy: Parallelism:≤±0.20mm catercorner:≤±0.2mm

3. The cutting speed: 0~180m/minute(can be adjustable)

4. The outline size: 4000×3200×1100mm; The tabletop size:2600×2100mm

5. The max cutting size:2440×1830mm

6. Transmission system: The X, Y, Z-Axis are equipped with a Yaskawa JAPAN servo motor made in Japan and THK precision gears.

7. The cutter block: It adopts pneumatic and spring at the same time. the cutter holder can rotate by 360°degree, and cut the glass up and down. (It can cut any shape)

8. The oiling supply method: Auto oiling.

9. The transportation device: It adopts a Flotation device which makes it convenient to move the sheet glass.

10. The positioning system: Pneumatic positioning system.

Bohle cutter, channel steel, air float system, imported gear and rail

Big Size CNC Glass Cutting Machine For Floating Glass And Low E Glass

*20years factory production experience*3 years machine warranty

*156 exported country experience

*20000 square meters Glass machine&upvc windows machine factory

*Shandong Eworld Machine Co., Ltd.

Shandong Eworld Machine Co., Ltd. is one of the famous and big manufacturers of glass equipment, windows equipment, CNC equipment.
Since its inception in 2002, and after many years of development and growth, the company is now playing a leading role in glass machinery and windows door machine inChina Eworld group has 2 factories, which are located in Jinan City. Advanced products, exquisite techniques, solid working, and cordial services

埃瓦德工厂大门

2620-有皮带4 2620-有皮带5

About glass deep processing machines, we are professional and have full set certificates.For every glass cutting machine, we have
serious quality control for every machine and every parts before it leaves our factory.

2620-有皮带6

We went to many exhibitions in China to expand our reputation.

2620-有皮带7

Welcome to visit our factory!If you have plan to come to China and see our machines, please contact us at least 15 days in advance
then we can arrange our
schedule and arrange to treat you.
No matter which transport method you choose, we will pick up you.
If you have any questions, please feel free to contact us.
24*7, we always be here !

2620-有皮带8

FAQ

Question:Are you manufacture?

Answer:Yes,we are the professional manufacture which have more than 5 workshops.

Question: How about the service ?

Answer:

1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour

2).deliver max. days within 15 days

3).24 hours for after -sale serive

4).more than 12 years experience in this kind machine field

5).fluent english ,communication barrier free

Question:What’s the guarantee ?

Answer:

1).Our guarantee for 18 months.

2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).2 year quality guaranty for the machine (excluding the consumables)

5).We will provide the consumable parts at an agency price

6).24 hours on line service each day, free technical support.

Q: Do you provide equipment operation training?

Answer:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. Allof our engineers have passport.

Question:if our price is higher than another company or factories ?

Answer:please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts,sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous andreliable parts for the machines inside.

Question:How long is the delivery time ?

Answer:For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.

Question: What is the payment ?

Answer:Any payment method you want,such as L/C,T/T,D/P,West-union and so on.

Eworld Machine produces high-quality machines, also pays attention to the package. The machines will be packed with steel pallets and standard export wooden cases, to make sure customers will receive the machines they ordered Intact.

Big Size CNC Glass Cutting Machine For Floating Glass And Low E Glass

1. Our Goal

Eword Machine strives to find a balance between quality and price so that customers can buy the best machine and we can win-win. Eworld Machine provides full set services and high-quality but low-price products. We are always looking for long-term cooperation, not a one-time deal.

2. Pre-sale

Eworld provides 24 hours high-quality service. When clients contact Eworld and ask for products, E-World answers at once, except our clerk's sleep, which condition we answer within 10hours. Eworld understands how important it is for the customers to choose a suitable machine, we are ready to come up with the best solution for customers.

3. On-sale

For all your requests, we will supply the best solution to you as soon as possible. If you have any inquiries or problems, please contact us with E-mail, skype, Alibaba, WhatsApp, phone, etc.

Eworld welcome customers to visit the factory, we will pick you up from the airport or train station. Eworld location is so convenient to welcome clients because of next to the train station.

4. After-sale service

When customers buy the glass cutting machine, E-World promises that the machine will be delivered in 25-35 days after deposit.

E-World arranges commodity packages suitable for the shipment of sea.

E-World provides English instruction about manual guides and video technical support. Any problems please let us know, and we will give you detailed support and advice.

E-World promises worry-free repair of one whole year after installation, the original fault parts damaged, be free of any charges.

When a serious breakdown and big fault happens, E-World has engineered and they can fly there to solve it.

CNC Automatic Glass Cutting Machine Glass Cutting Line

Our Corporation

Shandong Eworld Machine Co., Ltd. founded in 2002, has been a high and new technology enterprise specializing in developing, empoldering, and selling a series of automatic glass machines, laser engraving machines, CNC router machines, window machines, and door machines for many years.

Main products: Automatic Laminated glass (various shapes and low-E) production lines, automatic insulating glass production line, glass washing and drying machines, Automatic glass cutting machines, glass engraving machines, laser engraving machine, CNC router machine, CNC Woodworking machine, CNC Advertising machine, PVC window machine, PVC door machine, PVC window, and door machine, PVC bending machines, PVC and Aluminum welding machine, PVC and Aluminum cutting saw corner cleaning machine and other related products.

Advanced products, exquisite techniques, solid working, and cordial services all give birth to the unique culture of EWORLD today. EWORLD always keeps step on the latest technology and is committed to providing the most advanced products for our customers. Moreover, EWORLD always emphasizes the training and quality of our staff.

During recent years, our company has taken "customer the highest, technique the first, service following" as our notion, "to be the most customer-oriented and service-aware" as our task and "let customer fully know and select the product they need, provide the customer the best solutions they need" as our responsibility. Constantly, our company provides high-quality services and products for customers. That's why our company receives unanimous trust and good comments from our clients.

Shandong Eworld Machine co., Ltd, hopes to set up resplendence with wise people by superior quality products and high efficient services.

CNC Automatic Glass Cutting Machine Glass Cutting Line

Product case:

Certificate:

Frequently Questions

1. Question: Are you manufacture?

Answer:

Yes, we are professional manufacture which has more than 5 workshops.

2. Question: How about the service?

Answer:

1). reply it at once if from Ali-trademanager if by email, it replies it within 12 hour

2). deliver max. days within 15 days

3). 24 hours for after-sale service

4). more than 12 years experience in this kind of machine field

5). fluent English, communication barrier-free

3. Question: What’s the guarantee?

Answer:

1). Our guarantee for 18 months.

2). 24 hour’s technical support by email or calling

3). English manual and video tutorial

4). 2-year quality guaranty for the machine (excluding the consumables)

5). We will provide the consumable parts at an agency price

6). 24 hours online service each day, free technical support.

4. Question: Do you provide equipment operation training?

Answer:

A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.

5. Question: if our price is higher than another company or factories?

Answer:

please check, what is the difference of the machine parts, service and guarantee, especially the machine inner electric parts, sometimes, if machines have a breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.

6. Question: How long is the delivery time?

Answer:

For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to the client's specific requirements, it would be 15 to 30 days.

7. Question: What is the payment?

Answer:

Any payment method you want, such as L/C, T/T, D/P, West-union and so on.
