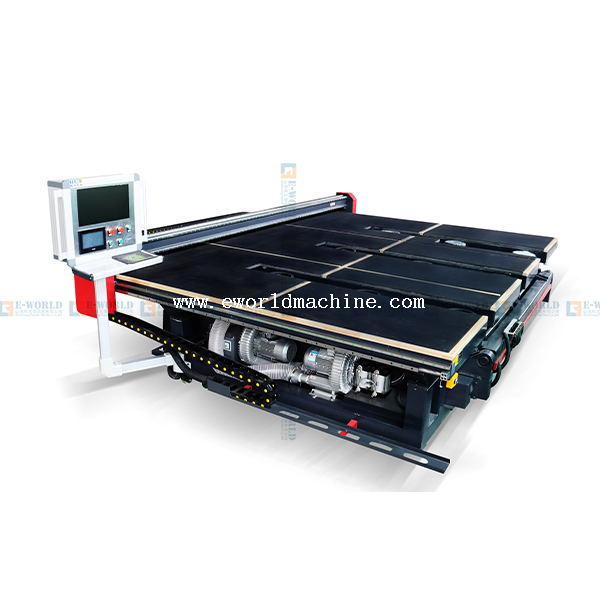

Full Automatic Cutting Line Shaped Glass Cutting Machine

Full Automatic Cutting Line Shaped Glass Cutting Machine,This set of equipment is the latest development , which is including loading, taking glass, straight cutting, shape cutting, air flotation, breaking, automatically move and walk (around), remote control. It is currently the most advanced automatic glass cutting system, instead of the traditional automatic glass cutting line(loading table, cutting machine, breaking table).It is significantly reduce the labor intensity of workers, with convenient operation, low investment and benefit advantages, greatly reducing the cost, it is the best choice for small and medium enterprise.
Quantity:
  • CNCL-3726
  • Eworld

Overview


Quick Details

Applicable Industries: Manufacturing Plant

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location: None

Showroom Location: None

Condition: New

Machine Type: Glass Cutting Machine

Production Capacity: 5 sets/month

Place of Origin: Shandong, China

Brand Name: Eworld Machine

Voltage: 380v 220v

Power: 21kw

Dimension(L*W*H): 4200*3800*900mm

Certification: ce

Warranty: More than 5 years

After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Key Selling Points: Remote Monitoring

Glass Thickness: 3-25mm

Machinery Test Report: Provided

Video outgoing inspection: Provided

Marketing Type: Ordinary Product

Warranty of core components: 1 Year

Core Components: Pressure vessel, Motor, Other, Bearing, Gear, Pump, Engine, Gearbox

Name: Glass Cutting Table

Usage: Industry field

Function: Multifunction

Color: Customers' Request

Seaport: Qingdao Port

Material: Stainless Steel

Model: Eworld Machine

Service: Full set after-sale services

Type: load, move, cut, and break

Style: High automatic


Supply Ability

Supply Ability: 5 Set/Sets per Month


Packaging & Delivery

Packaging Details: PE Film Seaworthy package

Port: Qingdao China Main Port

Picture Example:

微信图片_20210408152945
微信图片_20210408152959

Lead Time:

Quantity(Sets) 1-1 >1
Est. Time(days) 15 To be negotiated


Product Description


High configuration CNC integrated glass loading cutting machine


1. Brief Introduction

This set of equipment is the latest development, which is including loading, taking the glass, straight cutting, shape cutting, air flotation, breaking, automatically move and walk (around), remote control. It is currently the most advanced automatic glass cutting system, instead of the traditional automatic glass cutting line(loading table, cutting machine, breaking table). It is significantly reduces the labor intensity of workers, with convenient operation, low investment and benefit advantages, greatly reducing the cost, it is the best choice for the small and medium enterprise.

Multi Function High Configuration Three Arms Integrated Automatic Glass Loading Cutting Breaking Machine For Big Glass

Multi Function High Configuration Three Arms Integrated Automatic Glass Loading Cutting Breaking Machine For Big Glass

Multi Function High Configuration Three Arms Integrated Automatic Glass Loading Cutting Breaking Machine For Big Glass

Flexibility: Mobile device inside the machine, which can be moved to any glass location for loading, cutting, breaking.


Security: through a remote control device to operate the device, effectively avoid personal injury and property damage likely to result from, the equipment itself also has a computer to automatically detect electrical protection devices, make the equipment very simple and safe to use.


Economy: it at least needs 4 people for cutting glass with the traditional glass cutting line. Our equipment only needs one person who can complete loading, cutting, breaking, Meanwhile workers through remote control operation without contact glass, completely eliminate this aspect of high-security risks, using flexibility can be applied to different sizes of glass, a piece of equipment has the function of multiple devices.


2. Features:

1. Innovative system is the only one that can guarantee perfect uniformity and constant quality of all the machines that are being built and every single part of machines can be easy to replace if needed, even the felt table surface.

2. Control panel with incorporated independent Computer, software packet with optimization program developed in Multitasking Systems, user graphic interface for the managing of the cutting cycle and machine monitoring, hydraulic tilting surface, air cushion, a ventilator for the movement of the sheet on the surface.

3. Famous imported Electrical components or reliable domestic brands to make high cutting precision and stability, can meet all kinds of shapes of glass cutting.

4. Automatic oil injection and automatic constant pressure regulation functions, effective ways to ensure the stability of the cutting and cutting effect. Simple, easy to manage, no special requirements for operators, easy training to start, unskilled workers will be able to operate it too.

5. Safety of the glass presence:

An automatic sensor is placed on the cutting head, to stop the machine in case of a lack of glass sheets

6. imported cutter wheels and setting tools. stable voltage power supply, English cutting software, instruction, AUTOCAD Designed graph and figure, all cutting are fully CNC Control.


3. Technical Parameters:

1. The cutting thickness: 2-19mm

2. The cutting accuracy: Parallelism:≤±0.15mm/m

3. The cutting speed: 150m/minute(can be adjustable)

4. The outline size:4200*3800*900mm;

5. The max cutting size:3660*2440mm

6. Transmission system: The X,Y, Z-Axis are equipped with a reliable motor.

7. The cutter block: It adopts pneumatic and spring at the same time. the cutter holder can rotate by 360°degree, and cut the glass up and down. (It can cut any shape)

8. The oiling supply method: Auto oiling.

9. The transportation device: It adopts a Flotation device which makes it convenient to move the sheet glass.


4. Mechanical:

1. The tabletop: The smoothness≤±0.2mm/m

2. Rack/Guides: Imported from Japan and Switzerland.

3. Turret: It uses the pneumatic pressure and the spring pressure at the same time to make the cutting best.


Multi Function High Configuration Three Arms Integrated Automatic Glass Loading Cutting Breaking Machine For Big Glass

Multi Function High Configuration Three Arms Integrated Automatic Glass Loading Cutting Breaking Machine For Big Glass


Eworld Machine produces high-quality machines, also pays attention to the package. The machines will be packed with steel pallets and standard export wooden cases, to make sure customers will receive the machines they ordered Intact.

Multi Function High Configuration Three Arms Integrated Automatic Glass Loading Cutting Breaking Machine For Big Glass

1. Our Goal

Eword strives to find a balance between quality and price so that customers can buy the best machine and we can win-win. Eworld Machine provides full set services and high-quality but low-price products. We are always looking for long-term cooperation, not a one-time deal.


2. Pre-sale

Eworld provides 24 hours high-quality service. When clients contact Eworld and ask for products, E-World answers at once, except our clerk's sleep, which condition we answer within 10hours. Eworld understands how important it is for the customers to choose a suitable machine, we are ready to come up with the best solution for customers.


3. On-sale

For all your requests, we will supply the best solution to you as soon as possible. If you have any inquiries or problems, please contact us with E-mail, skype, Alibaba, WhatsApp, phone, etc.


Eworld welcome customers to visit the factory, we will pick you up from the airport or train station. Eworld location is convenient to welcome clients because of next to the train station.


4. After-sale service

When customers buy the glass processing machine, E-World promises that the machine will be delivered in 20-25 days after deposit.


E-World arranges commodity packages suitable for the shipment of sea. E-World provides English instruction about manual guides and video technical support. Any problems please let us know, and we will give you detailed supports and advice.


E-World promises worry-free repair of one whole year after installation, the original fault parts damaged, be free of any charges. When a serious breakdown and big fault happens, E-World has engineered and they can fly there to solve it.


FAQ


1. Question: Are you manufacture?

Answer:

Yes, we are professional manufacture which has more than 5 workshops.


2. Question: How about the service?

Answer:

1). reply it at once if from Ali-trademanager if by email, it replies it within 12 hour

2). deliver max. days within 15 days

3). 24 hours for after-sale service

4). more than 12 years experience in this kind of machine field

5). fluent English, communication barrier-free


3. Question: What’s the guarantee?

Answer:

1). Our guarantee for 18 months.

2). 24 hour’s technical support by email or calling

3). English manual and video tutorial

4). 2 year quality guaranty for the machine (excluding the consumables)

5). We will provide the consumable parts at an agency price

6). 24 hours online service each day, free technical support.


4. Question:  Do you provide equipment operation training?

Answer:

A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.


5. Question: if our price is higher than another company or factories?

Answer:

please check, what is the difference of the machine parts, service and guarantee, especially the machine inner electric parts, sometimes, if machines have a breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.


6. Question: How long is the delivery time?

Answer:

For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients' specific requirements, it would be 15 to 30 days.


7. Question: What is the payment?

Answer:

Any payment method you want, such as L/C, T/T, D/P, West-union, and so on.

Multi Function High Configuration Three Arms Integrated Automatic Glass Loading Cutting Breaking Machine For Big Glass


Eworld Machine's product

Eworld, best supplier in China.


In the 2001 year we started to do trade in the domestic market, 11 years of international trade experience, 2014 year we have Shandong Eworld Machine CO., LTD. Now we have mature experience and booming develop.  For example, Just from the 2019 year to the 2020 year, we have 180 transactions,  2.5 Million Us dollar turnover. This is our official English website: eworldmachine.com.


We have been a high and new technology enterprise specializing in developing, empoldering, and selling a series of CNC automatic glass machines, glass deep processing machines, window machines, and door machines for many years.



Main products: automatic insulating glass production line, glass washing and drying machines, Automatic glass cutting machines, Glass edging machine,  Glass lifting machines, Automatic EVA/PVB Laminated glass production lines, CNC processing center, Glass drilling machine, Glass sandblaster,  Glass screen printing machine, Aluminum/PVC UPVC profile window door machines.



Advanced products, exquisite techniques, solid working, and cordial services all give birth to the unique culture of EWORLD today. EWORLD always keeps step on the latest technology and is committed to providing the most advanced products for our customers. Moreover, EWORLD always emphasizes the training and quality of our staff.



During recent years, our company has taken "customer the highest, technique the first, service following" as our notion, "to be the most customer-oriented and service-aware" as our task and "let customer fully know and select the suitable glass processing machines they need.

Multi Function High Configuration Three Arms Integrated Automatic Glass Loading Cutting Breaking Machine For Big Glass

Multi Function High Configuration Three Arms Integrated Automatic Glass Loading Cutting Breaking Machine For Big Glass

Multi Function High Configuration Three Arms Integrated Automatic Glass Loading Cutting Breaking Machine For Big Glass
