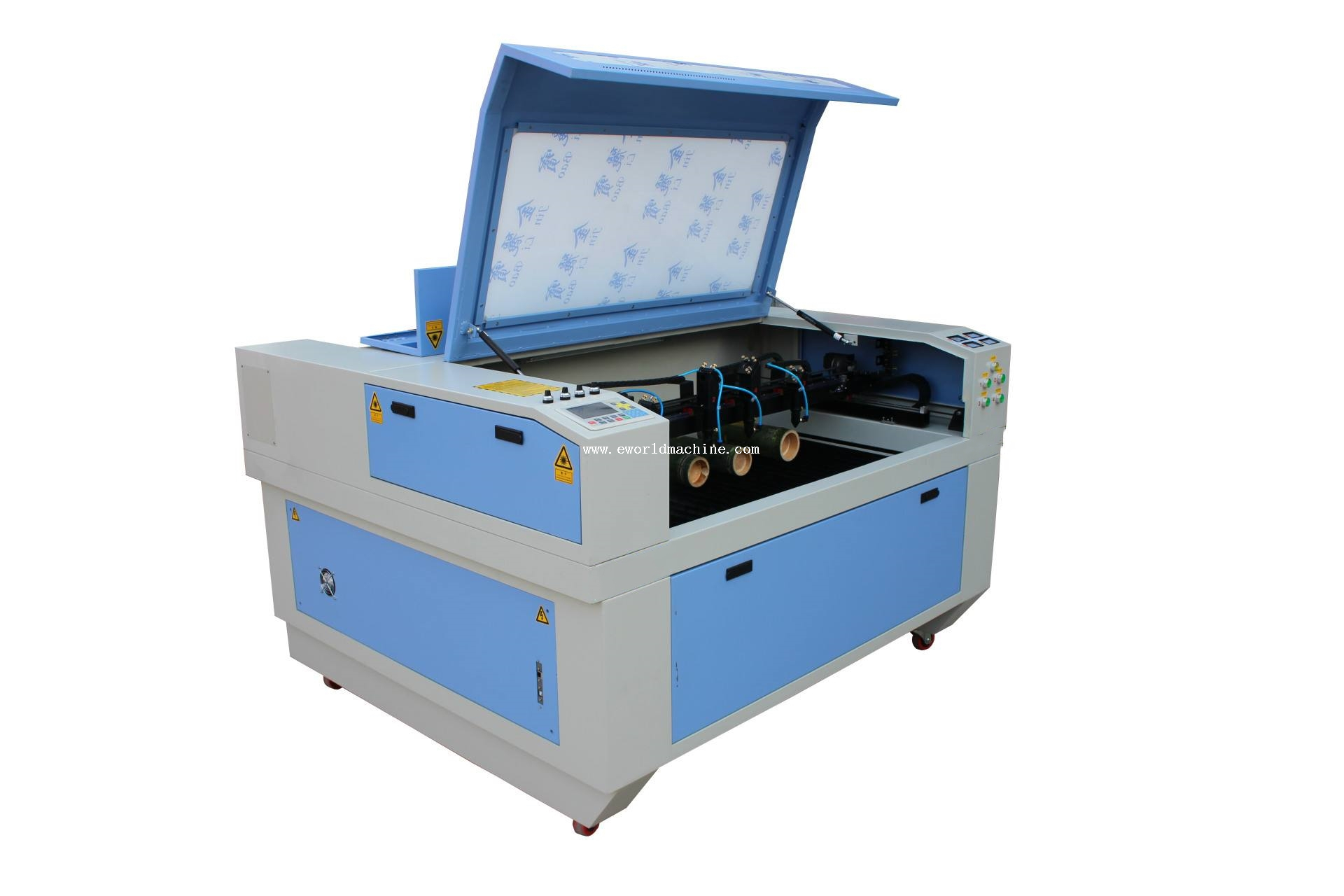

60W 80W 100 W Laser Cutter Plotter Machine

High performance. Extreme precision. Solid reliability. Safe and easy to use. Remarkably versatile. Very affordable..
Availability:
Quantity:
  • 1325,6090,1212,1218

  • Eworld

  • 8475291900

60W 80W 100 W Laser Cutter Plotter Machine

High performance. Extreme precision. Solid reliability. Safe and easy to use. Remarkably versatile. Very affordable.

• Easy operation via PC and software - AI, BMP, PLT, DXF and DST files data formats can be processed.
 • No pre- or post-processing - The cutting edge has a very good surface finish and the top side is free of scratches.
 • Minimal influence on the material - no-contact processing allows no force effects. The zone influenced through heat is minimal and the material structure remains.
• No tooling costs are incurred, as there is no wear and tear on the laser point.
 • Waste and noise levels are much lower than at most conventional machines.

%YS0[BUWY[M9J_35@%UW2FM


Accessories included: (Included in the total price)

(1)1 water chiller for cooling laser tube
 (2)1 air compressor for the laser head
 (3)1 exhaust blower
 (4)1 Honeycomb Vaccum Table
 (5)1 Laser software (english version)
 (6)User Manual (english version)
 (7)1 communiation cable
 (8)1 pcs laser tube
 (9)3 reflect optics
 (10)1 focus optic

Applicable materials:

Big size laser engraver mainly for cloth and leather cutting/engraving.

laser 12

Process advantage:


• Easy operation via PC and software - AI, BMP, PLT, DXF and DST  formats can be processed.
 • Minimal set-up time - There is no need to clamp the piece you are working on. Time-consuming positioning is a thing of the past!
 • No pre- or post-processing - The cutting edge has a very good surface finish and the top side is free of scratches.
 • Minimal influence on the material no-contact processing allows no force effects. The zone influenced through heat is minimal and the material structure remains.

Transparent costs:
The cost of maintenance per year for the components does not normally exceed 1-1.5% of the investment cost. No tooling costs are incurred, as there is no wear and tear on the laser point.

Convenient working conditions:
Waste and noise levels are much lower than at most conventional machines.


Specifications:

1) Cutting area: 1300x2500mm,  51"x98" inches

2) Laser power: 100w CO2 laser tube (Standard, suitable for engraving and cutting);   Have 60, 100w tube (Suitable for cutting)

3) Standard Features: Air Assist, Integrated Vector Grid & Vacuum table, Red-dot pointer.

4) Engraving Speed: 50-60000mm/min

5) Max Moving Speed: 60000mm/min

6) Cutting Speed: 50-5000mm/min

7) Resolution User controlled from 75 to 1200 dpi

8) Resetting positioning accuracy: ±0.1mm

9) Speed and Power Controls: High Speed DSP control. Computer or manually     controlled speed and power in 1% increments to 100%. Vector color mapping     links speed and power settings to any RGB color.

10) Interface: PCI card or USB

11) Power supply: AC220-240V/110-120V, 50-60Hz

12) Gross power: <1000W

13) Operating temperature: 0-45 °C

14) Operating humidity: 5-95%

15) Engraving depth: 3mm; Cutting depth: 15~20mm(0.6"-0.8" inches) acrylic
      NOTE: the cutting capability is for reference only and depends on the different      material supply and customer cutting quality requirement
