LBZ2000
Eworld
Overview
Quick Details
Applicable Industries: Manufacturing Plant
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
Showroom Location: None
Condition: New
Machine Type: Glass insulating machine
Production Capacity: 10sets/month
Place of Origin: Shandong, China
Brand Name: Eworld Machine
Voltage: 380V Or 110V
Power: 10kw
Dimension(L*W*H): 20000mm*2500mm*3600mm
Certification: ce
Warranty: 1 Year
After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points: Easy to Operate
Glass Thickness: 3-25mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Pressure vessel, Motor, Bearing, Gear, PLC, Pump, Engine, Gearbox
Name: Insulating Glass production line
Usage: Industry field
Model: LBZ2000
Single piece glass thickness: 3-25mm
Feature: High Reliability
Control system: PLC(Mitsubishi)
Max glass size: 2000mm*2500mm
Insulating Glass Thickness(mm): up to 50mm
Washing speed: 0-8m/min
Air pressure: 1.0Mpa
Supply Ability
Supply Ability: 5 Set/Sets per Month
Packaging & Delivery
Packaging Details: wooden case,seaworthy package
Port: Qingdao, china main port
Picture Example:
Lead Time:
| Quantity(Sets) | 1 - 1 | >1 |
| Est. Time(days) | 20 | To be negotiated |
Product Description
Brief introduction

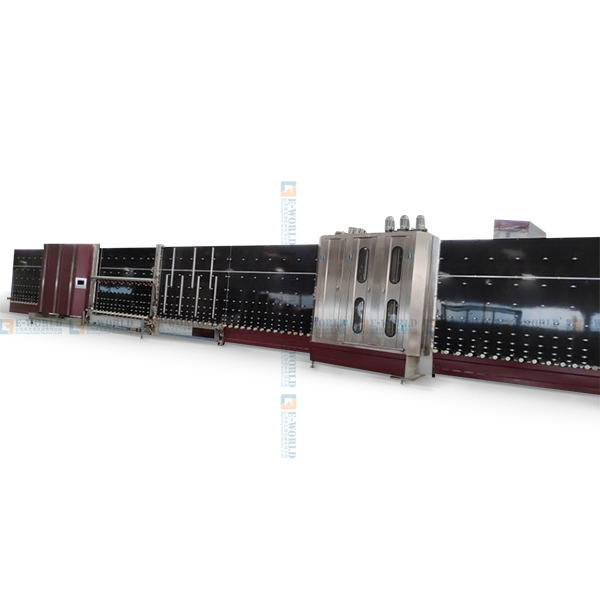

We have an inner combination insulating glass production line(6 sections) and an outer combination insulating glass production line(7 sections). This is 7 sections insulating the glass production line.
The insulating glass production line is the essential machine of insulating glass production line, it can make stepped glass, shaped glass, double layers, and three layers. This Insulating Glass Machine is special equipment for aluminum groove type insulating glass, This can make two-layer and three-layer insulating glasses with equal and unequal glass sheets.
Main Parameter
| Max working size | 2000*2500mm |
| Min working size | 300*500mm |
| Single Glass Thickness | 3-12mm |
| Max IGU thickness | 50mm |
| Washing speed | 0-8m/min |
| Conveyor speed | 45m/min |
| Cycle | 30—40 seconds(900*1200mm) |
| Brusher | 3 pairs |
| Brusher Diameter | Rough: 0.1mm, Fine: 0.06mm |
| Electricity power | 3P 380V/50HZ or 3P 220V/60HZ |
| Dimension | 20000*2500*3600mm |
| Water | 0.5 ton per day |
| Air Exhaust volume | 0.8m3/min |
| Air pressure | 1.0Mpa |
Features
1. Insulating glass line with high automatic level is fully controlled by PLC system, the operation is easy and humanized.
2. Touch screen operation interface. It is easy to transfer between automation and hand-operation.
3. Self-diagnosis system brings much high convenience to the user.
4. Automatically distinguish the film of LOW-E and coated glass.
5. The washing part is completely made of stainless steel, tempered glass door makes the operation inside clearly monitored, Signal switch on the top of the door avoid possible injury to the operator.
6. Energy saving and interrupted system for the washing machine.
7. Unique water nozzle design makes the maintenance easy and fast.
8. Heating system for the water and blowing air. Start it when the ambient temperature no more than 7 degree.
9. Automatic control 6 brushers for Glass.
10. There is a special system for Producing triple insulating glass.
11. Having a system for the wrong operation and automatically wait the second glass following.
12. Automatic assembly inside the press machine.
13. High-class casting and processing of spare parts assure good stability of the line.
14. The key connections use expanded joint instead of common union. This guarantees high adjustment precision and conveying reliability.
*20years factory production experience*3 years machine warranty
*156 exported country experience
*20000 square meters Glass machine&upvc windows machine factory
*Shandong Eworld Machine Co., Ltd.
Shandong Eworld Machine Co., Ltd. is one of the famous and big manufacturers of glass equipment, windows equipment, CNC equipment.
Since its inception in 2002, and after many years of development and growth, the company is now playing a leading role in glass machinery and windows door machine inChina Eworld group has 2 factories, which are located in Jinan City. Advanced products, exquisite techniques, solid working, and cordial services
About glass deep processing machines, we are professional and have full set certificates.For every glass cutting machine, we have
serious quality control for every machine and every parts before it leaves our factory.
We went to many exhibitions in China to expand our reputation.
Welcome to visit our factory!If you have plan to come to China and see our machines, please contact us at least 15 days in advance
then we can arrange our
schedule and arrange to treat you.
No matter which transport method you choose, we will pick up you.
If you have any questions, please feel free to contact us.
24*7, we always be here !
FAQ
Question:Are you manufacture?
Answer:Yes,we are the professional manufacture which have more than 5 workshops.
Question: How about the service ?
Answer:
1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour
2).deliver max. days within 15 days
3).24 hours for after -sale serive
4).more than 12 years experience in this kind machine field
5).fluent english ,communication barrier free
Question:What’s the guarantee ?
Answer:
1).Our guarantee for 18 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).2 year quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.
Q: Do you provide equipment operation training?
Answer:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. Allof our engineers have passport.
Question:if our price is higher than another company or factories ?
Answer:please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts,sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous andreliable parts for the machines inside.
Question:How long is the delivery time ?
Answer:For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
Question: What is the payment ?
Answer:Any payment method you want,such as L/C,T/T,D/P,West-union and so on.
