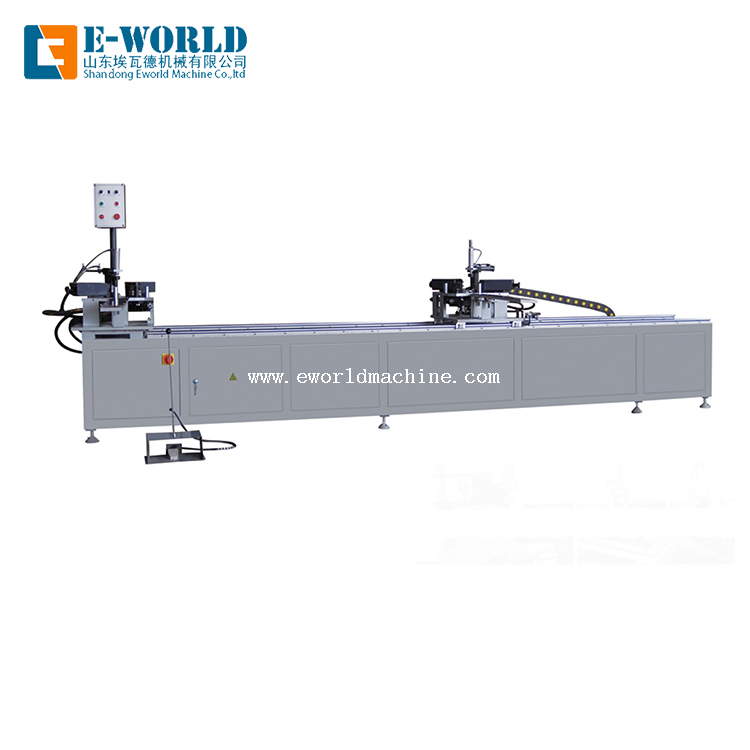

Double Head Aluminum Window Door Corner Combining Machine

Double Head Aluminum Window Door Corner Combining Machine can be used to assemble aluminum doors and windows and can complete punching and riveting connection of two corners in one operation with high production efficiency.

Quantity:
  • LZJ2-100*3500
  • Eworld
  • 8475291900

Double Head Aluminum Window Door Corner Combining Machine

0

1).The machine can be used to assemble aluminum doors and windows and can complete punching and riveting connection of two corners in one operation with high production efficiency.



2).The clamping and positioning device can be adjusted vertically and is applicable to profiles of various sizes and sections with excellent universality, High-precision linear bearing motional pairs are adopted with high precision of corner combining the hydraulic system is adopted with big punching and reveting force and high strength of corner connection.



3).We also have single head combining machine, if your production is not large, in begining you can use the single head combining machine is ok.



4).Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.

IMG_20161023_140107_副本

Technical parameter:

Model number

LZJ2-100*3500

Power supply

380V 50Hz

Rated oil pressure

18Mpa

Operation air pressure

0.4 ~ 0.6Mpa

Air consumption

0.2 L/min

Oil tank volume

40 L

Corner combining cylinder stroke

0 ~ 50mm

Max. processing frame size

3000mm / 1800mm

Min. processing frame size

450×450mm

Profile processing width

≤100mm

Machine weight(about)

600kg

Quick Details:

1.Place of Origin: Shandong, China (Mainland)

2.Model Number:ZJ2-100*3500

3.After-sales Service Provided: Engineers available to service machinery overseas

4.application: Aluminum door window making

5.usage: aluminum profile corner combining

6.certificate: CE&ISO

7.Button and contact: Schneider

8.Machine colour: any colour or as your required

9.Corner combining cylinder stroke:0~50mm

10.Max. processing frame size: 3000mm / 1800mm

11.Min. processing frame size: 450*450mm

12.Profile processing width: ≤100mm
