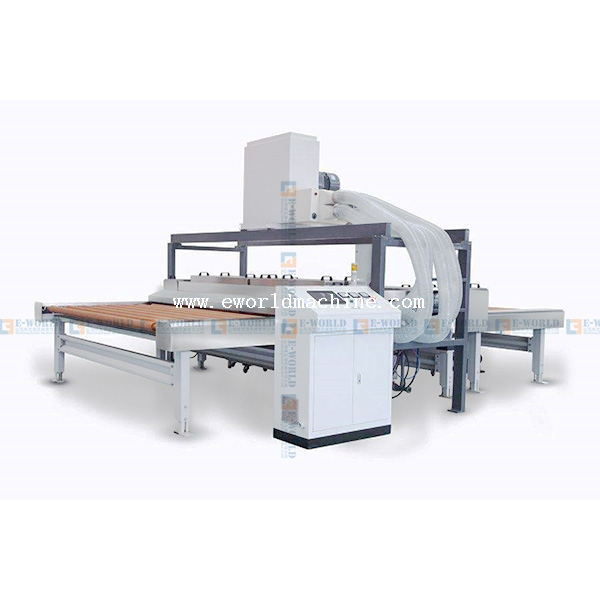

Double glass washing and drying Equipment

Double glass washing and drying equipment is for washing 3-25mm thickness glass

Quantity:
  • BEST-EWD2500
  • Eworld

Double glass washing and drying Equipment

Double glass washing and drying Equipment


Introduction:



Double glass washing and drying Equipment is for washing 3-25mm thickness glass



1. With stainless steel water tank and high pressure spray when in-feed, the rubber roller can wash automatically and improve the washing performance.



2. With 3 section washing structure, the brushes transmit by single chain of the up and down motor.



3. The water tank has automatic water in and out systems.



4.With three washing area,three pairs high quality brushers,two pairs air hot knife(one pair is vertical,one pair tilting structure for better drying)



5. Transmission adopts frequent converter, digital display and convenient operation.



6.Automatic thickness adjusting by motor operation



7. Conic moving gears are made from a special steel alloy



8. The water tank with a heater, Filtered fan for dust-free air expulsion, Air knife supply air powerfully.



9. Using two professionally designed air knives with strong wind force and better impact.



10. washing glass thickness from 3~25mm, adopted auto-cleaning and a hot air drying system.

11. Suitable for coating film, LOW-E Glass mirror clean and washing before toughened/tempered glass.

 Big Size Glass Washing And Drying Machine

II. TECHNICAL SPECIFICATIONS:



TECHNICAL SPECIFICATIONS

voltage

Power

Glass thickness

Feeding speed

380v/50Hz

28 kw

3-25mm

0-8m/min

Max. width

Min. width

Weight

Overall Size(LxWxH)

2500x3500mm

400x400mm

4500kg

5500x3400x2840mm

3 pairs brushers

2 pairs air knives

3 washing structure

Max height: 350mm
