E-WD2000
Eworld
Overview
Quick Details
Applicable Industries: Manufacturing Plant
After Warranty Service: Video technical support, Online support, Field maintenance and repair service
Local Service Location: None
Showroom Location: None
Condition: New
Machine Type: Glass Washing and Drying Machine
Production Capacity: 20Sets/Month
Place of Origin: Shandong, China
Brand Name: Eworld Machine
Voltage: 110v/380v or As request
Power: 28KW
Dimension(L*W*H): 5500*3400*2840mm
Weight: 4500KGS
Certification: CE&ISO
Warranty: 1 Year
After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points: Easy to Operate
Glass Thickness: 3-25mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Pressure vessel, Motor, Bearing, Gear, PLC, Pump, Engine, Gearbox
Max Glass Size: 2000*3000mm
Min glass size: 400*400mm
Application: Clean Glass
Personalize: Acceptable
Usage: Glass Factory
Seaport: Qingdao Port
Components: Stainless Steel And Good Design
After-sale services: A whole set and one year warranty
Difficulty or Easy in use: Easy
Certificate: Can provide
Supply Ability
Supply Ability: 20 Set/Sets per Month
Packaging & Delivery
Packaging Details: Wooden Package Seaworthy Package
Port: Qingdao Port, China Main Port
Picture Example:
Lead Time:
| Quantity(Sets) | 1-1 | >1 |
| Est. Time(days) | 30 | To be negotiated |
Product Description
Technical parameters

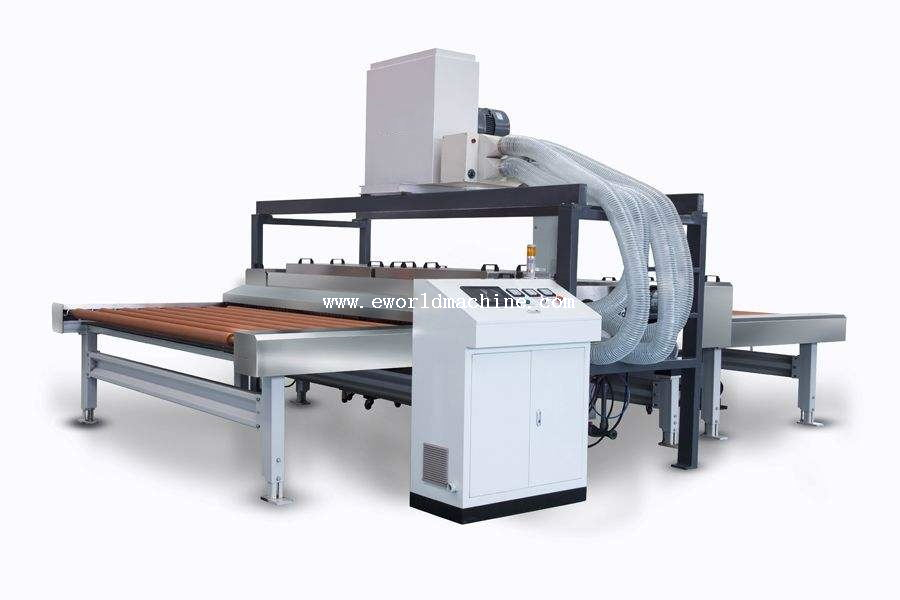

The machine is for washing 3-25mm thickness glass
1. With stainless steel water tank and high-pressure spray when in-feed, the rubber roller can wash automatically and improve the washing performance.
2. With 3 section washing structure, the brushes transmit by a single chain of the up and down motor.
3. The water tank has automatic water in and out systems.
4.With three washing area, three pairs of high-quality brushes, two pairs of air hot knife(one pair is vertical, one pair tilting structure for better drying)
5. Transmission adopts frequent converter, digital display, and convenient operation.
6.Automatic thickness adjusting by motor operation
7. Conic moving gears are made from a special steel alloy
8. The water tank with a heater, a Filtered fan for dust-free air expulsion, Air knife supply air powerfully.
9. Using two professionally designed air knives with strong wind force and better impact.
10. washing glass thickness from 3~25mm, adopted auto-cleaning and a hot air drying system.
11. Suitable for coating film, LOW-E Glass mirror clean and washing before toughened/tempered glass.
II. TECHNICAL SPECIFICATIONS:
| TECHNICAL SPECIFICATIONS | |||
| voltage | Power | Glass thickness | Feeding speed |
| 380v/50Hz | 28KW | 3-25mm | 0-8m/min |
| Max. width | Min. width | Weight | Overall Size(LxWxH) |
| 2000x3000mm | 400x400mm | 4500kg | 5500x3400x2840mm |
| 3 pairs brushes | 2 pairs air knives | 3 washing structure | Max height: 350mm |
*20years factory production experience*3 years machine warranty
*156 exported country experience
*20000 square meters Glass machine&upvc windows machine factory
*Shandong Eworld Machine Co., Ltd.
Shandong Eworld Machine Co., Ltd. is one of the famous and big manufacturers of glass equipment, windows equipment, CNC equipment.
Since its inception in 2002, and after many years of development and growth, the company is now playing a leading role in glass machinery and windows door machine inChina Eworld group has 2 factories, which are located in Jinan City. Advanced products, exquisite techniques, solid working, and cordial services
About glass deep processing machines, we are professional and have full set certificates.For every glass cutting machine, we have
serious quality control for every machine and every parts before it leaves our factory.
We went to many exhibitions in China to expand our reputation.
Welcome to visit our factory!If you have plan to come to China and see our machines, please contact us at least 15 days in advance
then we can arrange our
schedule and arrange to treat you.
No matter which transport method you choose, we will pick up you.
If you have any questions, please feel free to contact us.
24*7, we always be here !
FAQ
Question:Are you manufacture?
Answer:Yes,we are the professional manufacture which have more than 5 workshops.
Question: How about the service ?
Answer:
1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour
2).deliver max. days within 15 days
3).24 hours for after -sale serive
4).more than 12 years experience in this kind machine field
5).fluent english ,communication barrier free
Question:What’s the guarantee ?
Answer:
1).Our guarantee for 18 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).2 year quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.
Q: Do you provide equipment operation training?
Answer:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. Allof our engineers have passport.
Question:if our price is higher than another company or factories ?
Answer:please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts,sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous andreliable parts for the machines inside.
Question:How long is the delivery time ?
Answer:For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
Question: What is the payment ?
Answer:Any payment method you want,such as L/C,T/T,D/P,West-union and so on.
