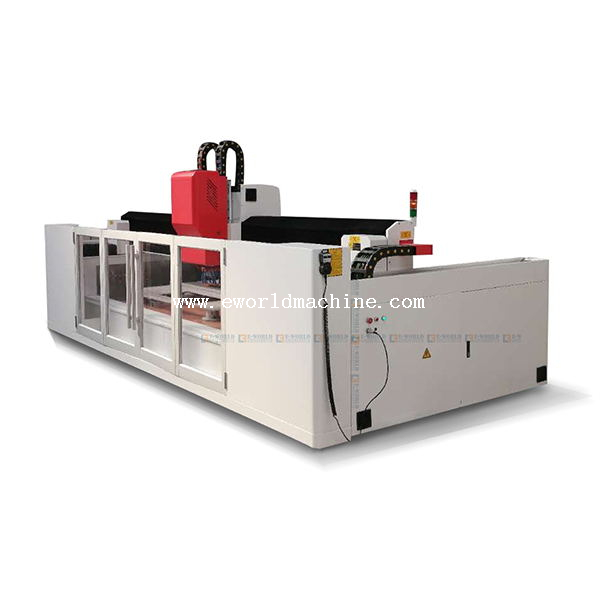

Fully Automatic 3 Axis CNC Glass Shape Edging Machine

Main Application
Drilling, Milling, Internal and External grinding and polishing, Writing, Shaped Notching, Engraving on glass、Marable, stone, quartz and so on
Quantity:
  • WD1830
  • Eworld

Overview


Quick Details

Applicable Industries: Manufacturing Plant

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location: None

Showroom Location: None

Condition: New

Machine Type: Engraving Machine / CNC Router

Production Capacity: 5 Sets/Month

Place of Origin: Shandong, China

Brand Name: Eworld Machine

Voltage: As request

Power: 15KW

Dimension(L*W*H): 4m*2m*1.5m

Weight: 5TONS

Certification: CE&ISO

Warranty: 1 Year

After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Key Selling Points: Energy saving

Glass Thickness: 3-25mm

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Marketing Type: Ordinary Product

Warranty of core components: 1 Year

Core Components: Pressure vessel, Motor, Bearing, Gear, Pump, Engine, Gearbox, Computer

Product Name: CNC Machining Center

Usage: Mill, Grind, Polish, Engraving

Max Glass Size: 1800*3000mm

Working Station: One Or Two

Automatic: 3 Axis

Motor: Servo Motor

The Power Of Main Motor: 5KW

Total Power: 15KW

Brand: Eworld

After-Sale Services: Provide


Supply Ability

Supply Ability: 5 Set/Sets per Month


Packaging & Delivery

Packaging Details: Wooden Seaworthy Package

Port: Qingdao Port, China Main Port

Picture Example:

Lead Time:

Quantity(Sets) 1-1 >1
Est. Time(days) 30 To be negotiated


Product Description


CNC Automatic Glass Working Processing Center For Glass

Brief Introduction

It is a multi-function machine, which can Drilling, Milling, Internal and External grinding and polishing, Writing, Shaped Notching, Engraving on glass with a different head(grinding wheels, diamond cutter, polishing wheel). This machine needs to change the head automatically. If you need mass production, We can add the automatic loading belt, control device, unloading belt, and unloading table.


Mechanic Structure

1. The machine tool and beam adopt welded steel structure. With special heat treatment, the structure is firm and can work for a long time.

2. The machine uses automobile paint which is more rust-resistant.

3. Total weight: about 7 tons (including peripheral accessories and electric cabinet).


Mechanic Transmission

The machine is transmitted through an AC servo motor by a synchronic belt and a synchronic belt wheel-driven spindle. There is an automatic lubricating system for the screw nut and guide-rail slider of the transmitting parts.


Servo System

It adopts Mitsubishi/Hitachi AC servo system

Screw: all the screws are from the KGF series double nut screw (German NEFF)


Worktable

1. There is a multi-location worktable of large size in front of the machine. With the function of automatic rubdown of high precision, users can adjust the flatness of the worktable when needed. This is to keep a flat worktable.

2. There are positioning blocks for the workpiece and vacuum system.

3. There is a tool library with 2 x 5 tools. There is a tool library with 5 tools on both left and right sides of the machine. Users can select different tools and optimize routes according to processing requirements.


Parts of Main Spindle

1. Motor of the main spindle: it adopts an asynchronous speed-adjust sensor motor of high efficiency. Adjusting range of rotating speed: 0 – 9000.

2. The machine equips 10 pieces of IOS 40 handles. The cone part adopts the 7:24 international uniform standard which is easy to be changed. A grinding wheel with an outer diameter of 170 mm can be used.


Electric Cabinet

The distribution of the electric cabinet can be designed according to the customer’s requirements. Each terminal is clearly marked. This is convenient for maintenance in the future.


Drawing Software

With Auto CAD software, users can design any geometrical pattern on a PC with a mouse and keyboard.


Typesetting System

With a combination of CNC engraving systems, the user can set the variable parameter of the processing pattern, and then it will generate G code automatically.


Safety and Reliability of Operation

1. The moving parts are lubricated by an automatic lubricating system.

2. Electric cabinet adopts IP54 industrial standard and equips an air-conditioner.

3. The electric parts inside the electric cabinet are common products in the market which is easily changed.

4. The main fault will be automatically reminded.


Central Lubricating System

It adopts the PDI lubricating system of American BIJUR – DELIMON which can timely lubricate the transmitting parts by separate setting to PLC.


Configure of Machine

1. Handle 10 pieces of IOS 40 handles (it equips 10 pieces of grinding wheels. Amount can be changed according to customer’s requirement).

2. Motor of the main spindle: 6 KW

3. Vacuum pump: vacuum for sucking raw glass

4. Placing of electric cabinet: length-ways/transverse; length-ways


Main technical data

Transverse: axis XX = 3000 mm

Lengthways: axis Y:   Y = 1800 mm


Vertical:

axis Z: Z = 250 mm

Allocating accuracy(X, Y, Z): 0.01*002*0.01

Speed(X,Y): 5m/minute


Running Condition

Power supply: 380 V, 50 Hz, 3 phases

Environment temperature: 0 – 50 ℃

Relative humidity: < 90%

Compressed air: ≥ 0.6 Mpa


CNC Automatic Glass Working Processing Center For Glass

3.1. Our Goal

Eworld Machine provides full set services and high-quality but low-price products. We are always looking for long-term cooperation, not one-time deal.


3.2. Pre-sale

Eworld provides 24 hours high-quality service. When clients contact Eworld and ask for products, E-World answers at once, except our clerk's sleep, which condition we answer within 10hours. Eworld understands how important it is for the customers to choose a suitable machine, we are ready to come up with the best solution for customers.


3.3. On-sale

For all your requests, we will supply the best solution to you as soon as possible. If you have any inquiries or problems, please contact us by E-mail, skype, Alibaba, WhatsApp, phone, etc.

Eworld welcome customers to visit the factory, we will pick you up from the airport or train station. Eworld location is convenient to welcome clients because of next to the train station.


3.4. After-sale service

When customers buy the glass processing machine, E-World promises that the machine will be delivered in 20-25 days after deposit. E-World arranges commodity’s packages suitable for the shipment of sea. E-World provides English instruction about manual guide and video technical support. Any problems please let us know, and we will give detailed supports and advice. E-World promises worry-free repair of one whole year after installation, the original fault parts damaged, be free of any charges. When a serious breakdown and big fault happens, E-World has engineered and they can fly there to solve it.


Shandong Eworld Machine Co., Ltd is one of the most famous and big manufacturers of glass and CNC equipment since its inception in 1995. I am sure that you will be satisfied with our products quality and competitive price. E-World is confident to maintain our business relationship as we are one of the biggest glass equipment manufacturers, which capable of providing quality goods, competitive price and fast delivery, quick response at the same time.


CNC Automatic Glass Working Processing Center For Glass

CNC Automatic Glass Working Processing Center For Glass

CNC Automatic Glass Working Processing Center For Glass

CNC Automatic Glass Working Processing Center For Glass

CNC Automatic Glass Working Processing Center For Glass


1. Question: Are you a manufacturer?

Answer:

Yes, we are a professional manufacturer which has more than 5 workshops.


2. Question: How about the service?

Answer:

1). reply it at once if from Ali-trade manager, if by email, it replies it within 12 hour

2). deliver max. days within 15 days

3). 24 hours for after-sale service

4). more than 12 years experience in this kind of machine field

5). fluent English, communication barrier-free


3. Question: What's the guarantee?

Answer:

1). Our guarantee for 18 months.

2). 24 hour’s technical support by email or calling

3). English manual and video tutorial

4). 2 year quality guaranty for the machine (excluding the consumables)

5). We will provide the consumable parts at an agency price

6). 24 hours online service each day, free technical support.


4. Question:  Do you provide equipment operation training?

Answer:

A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.


5. Question: if our price is higher than another company or factories?

Answer:

please check, what is the difference of the machine parts, service, and guarantee, especially the machine inner electric parts, sometimes, if machines have a breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.


6. Question: How long is the delivery time?

Answer:

For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients' specific requirements, it would be 15 to 30 days.


7.Question: What is the payment?

Answer:

Any payment method you want, such as L/C, T/T, D/P, West-union, and so on.


CNC Automatic Glass Working Processing Center For Glass

CNC Automatic Glass Working Processing Center For Glass
