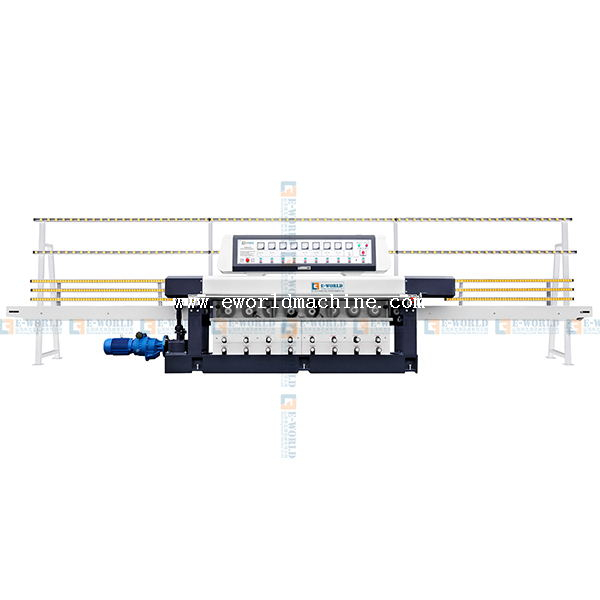

Glass Straight Line Pencil Round Edging Machine

Glass Straight Line Pencil Round Edging Machine

Quantity:
  • EWD7320
  • Eworld

 Glass Straight Line Pencil Round Edging Machine

Glass Straight Line Pencil Round Edging Machine

Product Description

1. ISO standard.
2. 7 spindles.
3. Excellent grinding and polishing effect.
4. Easy to operate and maintain
5. Glass Straight round Edging Machine, is suitable for pencil/OG edging of various thickness of glass by means of different shape wheels

6. Sturdy structure enables 24 hours running without stop.

7. Hundreds of edging machines have been made and our experience on edging would be shared with you without any reservation.

Functions:

working for pencil/OG edging of various thickness of glass by means of different shape wheels.

The rough grinding, fine grinding as long as polishing could be finished at one time. The same thickness of glass sheet can be process continually.

The brightness of polished pencil edge would be close to the original glass;

This machine is easy to operate and has good performance.

Glass typeFloat glass for furniture, building, door, windows, home appliances etc

Feature:



1.High standard control system, easy operation;



2. Heavy duty foundation & beams: cast steel,annealing treatment;



3. Famous motor and electricity component;



4. Thicken chain transmission system, can loading 600kg big size thick glass;

  Beveling machine equipt synchronous belt PU chain transmission system



5.  Various high quality import grinding wheels.

Suit for grind mirror, mosaic,  spell mirror,Low-e glass, float glass, laminated glass, tempered glass etc,.



Technical parameter:

Min. glass size: 80*80mm

Glass thickness: 3-19mm

Processing speed: 0.8-5.5m/min

No. of spindles: 7pcs

Installed power: 15.65 kw

Voltage: 380V 50HZ

Dimension: 7000*1000*2500mm

Weight: 2800 kgs
