Manual Glass Mosaic Cutting Machine For Straight Line Cutting

Manual Glass Mosaic Cutting Machine For Straight Line Cutting

Quantity:
  • JQZ1212

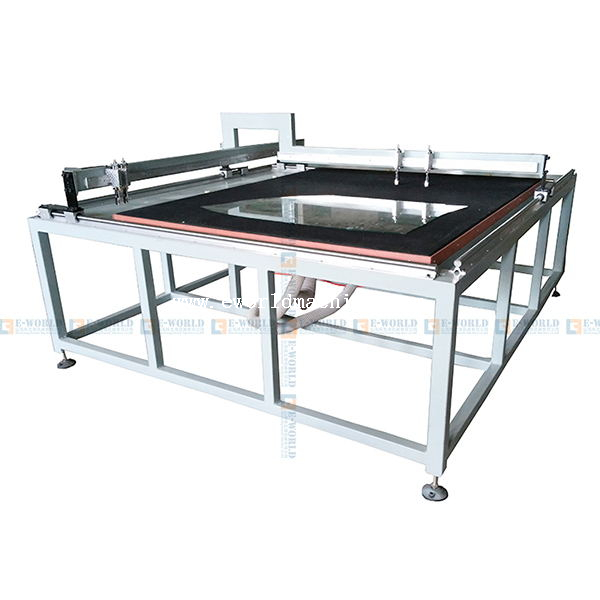

Manual Glass Mosaic Cutting Machine For Straight Line Cutting


Feature



This Glass Cutting machine are specially designed for cutting rectangular glass with high accuracy and efficiency. The minimum cutting size is 20x20mm.
The distance between cutting boxes can be adjusted manually,adjust the space of cutter rack,then fix it to the beam and make cutting,it can equip with blowing and suction accordingly to requirement.The material of tabletop is strong metal structure with blanket .

Technical parameter:



1. high efficiency and easy operation to cut with multi-cutting and cutting box can increase accordingly.

2. Cutter holder with sel-lubricating, and easy to change the cutter wheel.

3. high precision,long using life and attractive appearance.

Technical parameter:

Outline dimension: 1750*2200*950mm

Tabletop size: 1400*1800mm(L*W)

Glass sheet size: 1200*1200mm

Minimum cutting size: 20*20mm

Cutting glass thickness: 1-12mm

Cutting accuracy: parallelism: from -0.15 to +0.15

               Catercorner  from -0.20 to +0.20

Weight:600 KG
