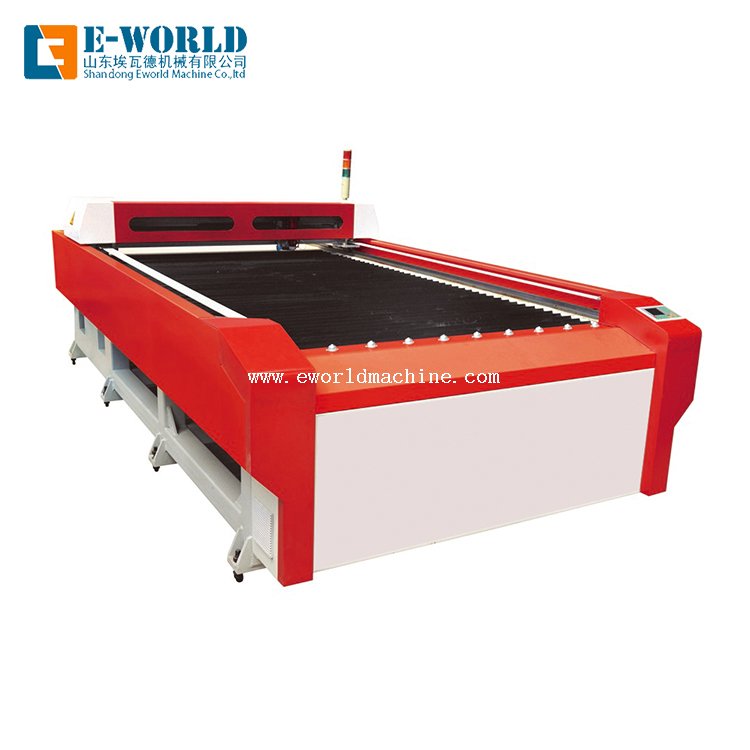

Multifunctional Mixed Laser Metal Cutting Machine

Multifunctional Mixed Laser Metal Cutting Machine,For Engraving & Cutting non-metal and metal material.
But can not cut aluminum and copper,because aluminum and copper reflect light.

Quantity:
  • GT1325
  • Eworld
  • 8475291900

Multifunctional Mixed Laser Metal Cutting Machine

Multifunctional Mixed Laser Metal Cutting Machine

Applicable

For Engraving & Cutting non-metal and metal material.

But can not cut aluminum and copper,because aluminum and copper reflect light.

Laser head 2

Metal cutting sample

Parameter

Type

               GT-1325

Engraving Area

            1300mmx2500mm

Laser Power

150W Laser tube,can reach 180W.

Laser Type

CO2 Laser Tube

Engraving speed

0~1000mm/s

Cutting speed

0~600mm/s

Resetting positioning accuracy

0.01mm

Cutting depth

Stainless steel max can cut 1.5mm,carbon steel can cut max 2mm,MDF max can cut 12mm,Acrylic max can cut 25-30mm thick,plywood can cut 15-20mm......many materials.

Minimum Shaping Character

1.0×1.0mm

Power supply

220V±10% 50HZ or 110V±10% 60HZ

Gross power

1200W

Rail

PMI or HIWIN square rail made in Taiwan

Electric parts

OMRON electric parts made in Japan

Software supported

ArtCut, CorelDraw, PhotoShop, AutoCAD

Graphic format supported

PLTDXFBMPJPGGIFPGNTIF

Engraver for Curve surfaces

(Yes/No)

No (we can add an Rotary attachment on the Laser Engrave/Cutting Machine,

then the machine can engrave on Cylinder)

Water Cooling: (Yes / No)

Yes

Maximum Height of Materials to

Engrave (mm)

350mm(Up and down by motor)

Laser Tube (life hours)

8000-10000hours

Equipment Dimensions

2550*1880*1390mm

Assistant Equipment

Water pump

Exhaust Fan

Red Dot Pointer

Optional Spare Parts

Up-Down table

Rotary System

Blade/flat/honeycomb work table

Recommended

Spare parts

Laser Tube and Lens
