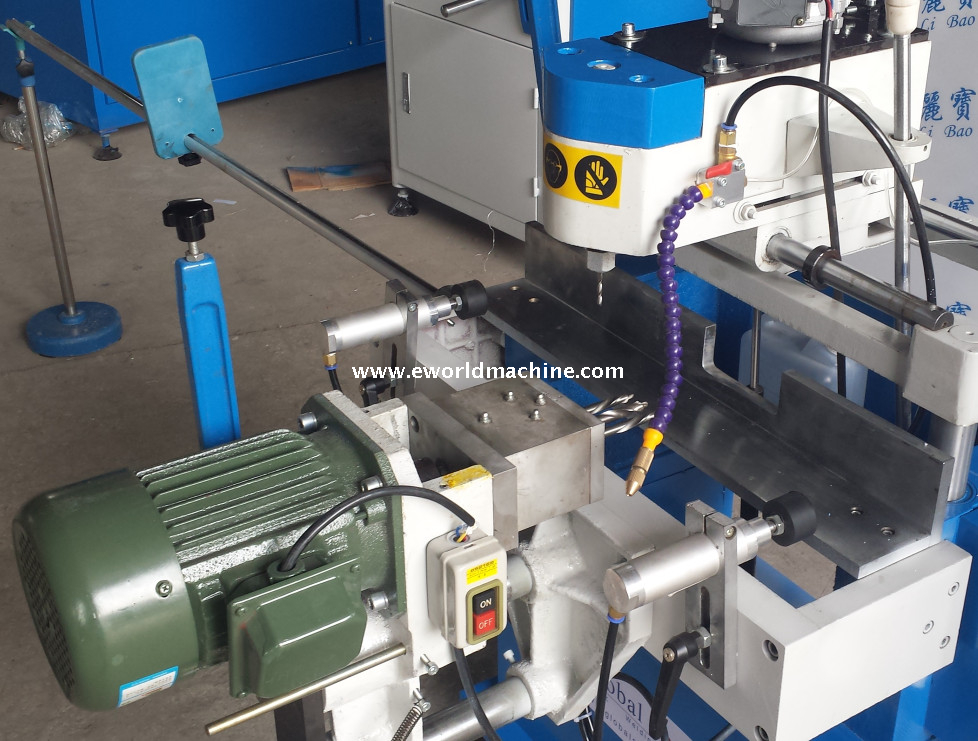

PVC Window Lock Hole Copy Routing Machine

It is a special machine used for processing transmission device installing holes hardware and grooves for PVC/UPVC/plastic/Vinyl and aluminum doors and windows.

Quantity:
  • SZJ01
  • Eworld

We are professional manufacture for the PVC Window Lock Hole Copy Routing Machine.The window manufacture as follows:

Cutting profile(double head cutting machine)-----Welding the profile and make them together(use welding machine,such as one head,two head,three head or four head welding machine-----Clean the seam after welding( use corner clean machine)-----glazing bead installation----- V cutting------Lock hole with copy milling-----water slot making ,some may need arc bending if there is arc window making,some need the screw install and feeding machine up to the different customer's requirement.
PVC Window Lock Hole Copy Routing Machine


The PVC Window Copy Routing Machine for making UPVC windows doors as follows,you can tell us the production capability so that our sales worker can give you the advice and make the right machine quotation for you.


  Cutting saw LSJ-350A Single head cutting saw

SJ02-3500 Double mitre saw for PVC profile

Glazing bead saw

LJVW-60 PVC V Cutting saw

SJV-45 Mullion Saw
Welding machine DHJ02 Single angle welding machine

WHL02-3500.2 Two head welding machine

HJ02-3500.3/3A Three head welding machine

HJ02-4500.4/ 4A Four head welding machine

WHL-3500H Two head welding machine( seamless)

Three head welding machine(seamless)

Four head welding machine(seamless)
Milling machine DZX 01-100 Single axis copy routing machine

SX01-100 Double axis copy routing machine for PVC profile

SSKC02-100 PVC win-door lock hole processing machine

End milling machine

Cap milling machine

SCX 02 Water slot milling machine

Portable internal/external corner milling machine


Corner cleaning machine SQ06-120 Surface PVC corner cleaning machine

SQJ01-120 PVC corner cleaning machine

CNC Automatic corner cleaning machine( 3 Cutters)

CNC Automatic corner cleaning machine( 5 Cutters)

SQJ05-120 PVC Win-door V corner cleaning machine
PVC arc bending machine SYH1800 PVC Arc bending machine
Screw fixing machine One head

Two head


Before you buy the Lock Hole PVC Window Copy Routing Machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage

1. Product Description



1).It is a special machine used for processing transmission device installing holes and grooves for PVC/UPVC/plastic/Vinyl and aluminum doors and windows.



2).It consists of long horizontal holes, and the copy routing of vertical long holes.



3).The belt is accelerated to achieve the high milling speed (12000 r/min).



4).With the pneumatic driving system,it can process the water slots. Both vertical and horizontal  processing is available with only one clamping. One time clamping can achieve 2 working procedures which ensures the precise position between holes and grooves efficiently. 1 cutter is for  the lock hole milling, 3 cutters are for the copy-router milling. This machine can also make water slot milling.



5).The lock hole milling machine has two funtions: copy-routing, lock hole milling, sometimes, you donot need to buy the copy-routing machine, just buy this lock hole milling machine is enough. This machine can also make Aluminum window profile.



6).Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.



 2.Technical parameters



Model number

SZJ01

Working air pressure

0.4~0.6Mpa

Air consumption

30L/min

Power supply

380V 50Hz

Input power

1.85kw (0.75kw,1.1kw)

Copy-routing range

300×100mm

Outside dimension

1000×1130×1500mm

weight(about)

250kg
