Small Size Glass Washing Machine

Hundreds of our washing machines are now being operated in hundreds of glass fabricators which require high cleanliness of glass for packing  and delivery, or for preparation of tempering, laminating and coating. Heavy spot and stain can be removed easily. We provide many different standard size of washing machine and any size out of out standard model is on request.
Availability:
Quantity:
  • E-WD800

  • Eworld

卧式清洗机

Overview


Quick Details

Applicable Industries: Manufacturing Plant

After Warranty Service: Video technical support, Online support, Field maintenance and repair service

Local Service Location: None

Showroom Location: None

Condition: New

Machine Type: Glass Washing and Drying Machine

Production Capacity: 20Sets/Month

Place of Origin: Shandong, China

Brand Name: Eworld Machine

Voltage: 110v/380v or As request

Power: 4KW

Dimension(L*W*H): 2800*1500*1100mm

Weight: 1100KGS

Certification: CE&ISO

Warranty: 1 Year

After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Key Selling Points: Easy to Operate

Glass Thickness: 1-40mm

Machinery Test Report: Provided

Video outgoing inspection: Provided

Marketing Type: Ordinary Product

Warranty of core components: 1 Year

Core Components: Pressure vessel, Motor, Bearing, Gear, PLC, Pump, Engine, Gearbox

Max glass size: 800MM*800MM

Min glass size: 10*10mm

Personalize: Acceptable

Usage: Glass Factory

Seaport: Qingdao Port

Components: Stainless Steel And Good Design

After-sale services: A whole set and one year warranty

Difficulty or Easy in use: Easy

Certificate: Can be provided

The charging numbers of the battery: Once a week


Supply Ability

Supply Ability: 20 Set/Sets per Month


Packaging & Delivery

Packaging Details: Wooden Package Seaworthy Package

Port: Qingdao Port, China Main Port

Picture Example:

Lead Time:

Quantity(Sets) 1-1 >1
Est. Time(days) 30 To be negotiated


Product Description


详情卧式


Brief introduce

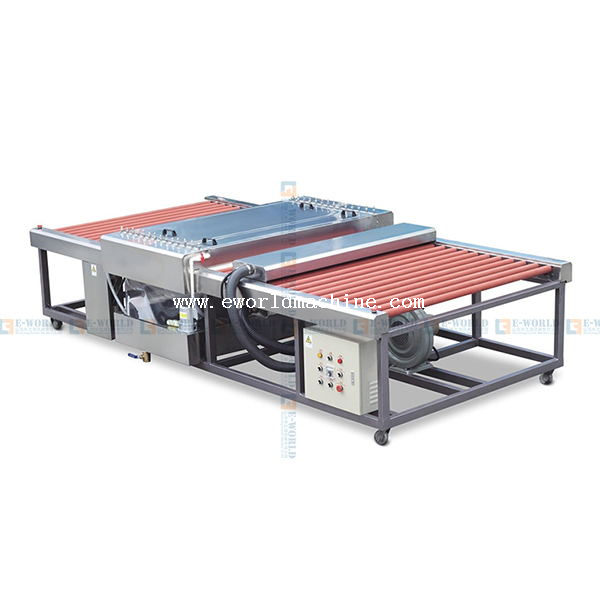

1) This Horizontal Glass Washing Machine is designed for cleaning flat glass with thickness 3-12mm. The machine adopts a horizontal structure, and consists of an in-feed, washing, drying, and out-feed section and air blower case and electric control box, which is easy to operate with good cleaning effect, reliable performance.


2) Adopts 3 pair brushes,2 pair sponge roller, and one pair air knife hot wind drying system. The multi-functional combination of the independent blower, cycling water, and hot air makes the operation more convenient.


3) All the cleaning parts and installation (including heating flange, temperature sensors, pipe, tank, etc.) are made of high-quality stainless steel material. It can be anti-corrosion, the water cycle doesn’t plug, not rust.


4) Sucking water rollers are made of quality polymer material, It has a strong capacity to suck water, longer life.


5) The rubber roller is made up of special rubber, formed by grinding, good wear resistance, anti-aging, high accuracy.


6) Water tanks with steel plates can freely push and pull to prevent the dust submerged water source, imported drive, and step-less speed regulation.


Technical parameter

Dimension: 1500*1500*800mm

Power: 380 v

Frequency: 50 Hz

Total power: 3 KW

Working speed: 3-5m/min

Max Glass width size:1200mm

Mini glass size: 10*10mm

Glass thickness:3-12mm

Total weight: 600kg

Brush: 3 pairs

Water tank: one

Sponge: 3 pairs

Hot knife: one pair



BXWJ800 Glass washing and drying machine

Introduction:

Hundreds of our washing machines are now being operated in hundreds of glass fabricators which require high cleanliness of glass for packing  and delivery, or for preparation of tempering, laminating and coating. Heavy spot and stain can be removed easily. We provide many different standard size of washing machine and any size out of out standard model is on request.

glass washing machine is designed for washing the fat glass. The processing speed is adjusted by variable motor with horizontal structure, four pairs of brushers and three pairs of sponge rollers make the performance of machine reliable. The temperature of hot-air can be set in advance. Different design meets customers’ requirements

 2.Feature

•All the cleaning parts and installation (including heater, temperature sensors, pipe, tank, etc.) are made of high-quality stainless steel material. It can be anti-corrosion, the water cycle doesn’t plug, not rust.

•Adopt filtered water systems cycle, The clear and turbid water is distributary, and realize conservation of water.
•There
are 8 pcs brush cleaning match, forced brushing to make the glass cleanness better.
6 pcs sucking water rollers are made of the quality polymer material, It has a strong capacity to suck water, longer life.
•The rubber roller is made up of special rubber ,formed by the grinding, good wear resistance, anti-aging, high accuracy.
•The slide
 way tank with telescopic can freely drive,very convenient to input water and inspect the water quality.
•Water tanks with
stainless steel plate can freely push and pull to prevent the dust submerged water source.
•The shelf is made of high-quality carbon steel material
 or metal. The thickness of tube is 2.5mm . The shelf is handled to spray and coat.



3.Techincal parameter:

Power: 380 v/220V

Fequency: 50 hz

Total power: 9 KW

Working speed: 3-5m/min

Max Glass width size:750*1500mm

Mini glass size: 50*50mm

Glass thickness:3-12mm

Total weight: 800kg

Total dimension: 2700*1200*1000mm

Brusher:8 pcs·

Stainless steel Water tank: one

Sponge: 6 pcs
