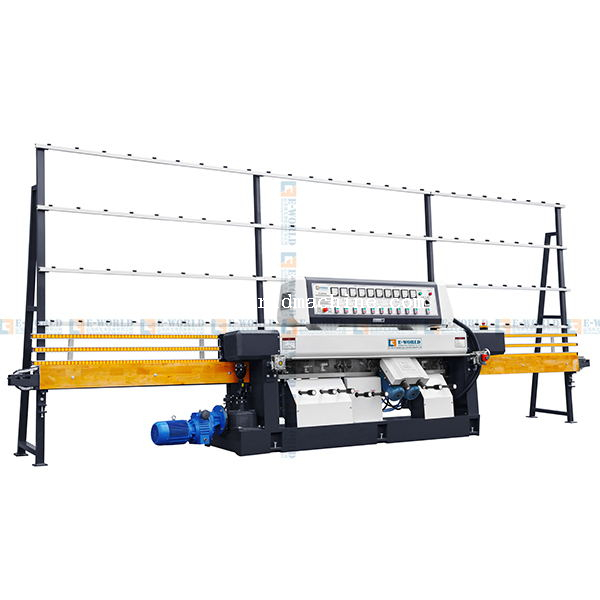

45 angle glass straight edging and polishing machine

Complete the coarse grinding, accurate grinding, and polishing of straight-line hemline and corner angle, at a time with different size and thickness of flat glass.
1.2 When adjusting the thickness of the different processing, the pre-chamfering grinding head can be moved synchronously as fore beam.
1.3 Simple to operate and maintain.
1.4 An ideal for the complete processing of glass.
1.5 With 9 spindles, PLC controller if needed.
1.6 Got CE approval, and are strictly according to the CE standard.

Quantity:
  • E-LD9325-45

Basic Info.

Model NO.:

E-LD9325-45

Price


Certification:

CE

Type:


Export Markets:

North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Western Europe

Additional Info.

Trademark:

EWORLD

Packing:

Packed in Wooden Case, Seaworthy Package

HS Code:

8464201000

Production Capacity:

10 Sets/ Month


E
-LD9325-45  glass straight edging machine



Basic Info.

Model NO.:

E-LD9325-45

Type:

Glass Edging and Polishing Machine

Export Markets:

North America, South America, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe

Packing:

Packed in Wooden Case, Seaworthy Package

HS Code:

8464201000



Product Description

1. ISO standard.
2. 9 spindles.
3. Excellent grinding and polishing effect.
4. Easy to operate and maintain
5.E-LD9325-45 Glass Straight line Edging Machine, is suitable for processing straight-line edging of glasses.
6. Sturdy structure enables 24 hours running without stop.

7. Hundreds of edging machines have been made and our experience on edging would be shared with you without any reservation.

Functions:

Processes rectilinear glass plates in various sizes and thicknesses;

The grinding (roughing), finishing resin and fillets can be performed simultaneously;

The same thickness as the glass sheet can be continuously processed, so that the machine allows having a larger volume of production lines hardening processes, rolling processes and other processing.

Glass typeFloat glass for furniture, building, door, windows, home appliances etc


1. Brief introduction
1.1 Complete the coarse grinding, accurate grinding, and polishing of straight-line hemline and corner angle, at a time with different size and thickness of flat glass.
1.2 When adjusting the thickness of the different processing, the pre-chamfering grinding head can be moved synchronously as fore beam.
1.3 Simple to operate and maintain.
1.4 An ideal for the complete processing of glass.
1.5 With 9 spindles, PLC controller if needed.
1.6 Got CE approval, and are strictly according to the CE standard.
2. Technical parameter
Quantity of motors: 9 sets
Feeding speed: 0.5-7m/min
Minimum grinding size: 50mm * 50mm
Thickness of the processed glass: 3mm-25mm
Power: 19.75 kw
Voltage (can be customized-made): 380V/50Hz or customized
Exteanal dimension(L * W * H): 7.0m * 1.0m * 2.5m
Packing size: 3.8m * 1.3m * 1.8m
Weight: 2600kg.
