Glass Straight Line Edging Machine for Grinding Polishing

Glass Straight Line Edging Machine for Grinding Polishing

Processes rectilinear glass plates in various sizes and thicknesses;

The grinding (roughing), finishing resin and fillets can be performed simultaneously;

The same thickness as the glass sheet can be continuously processed, so that the machine allows having a larger volume of production lines hardening processes, rolling processes and other processing.

Quantity:
  • E-LD4325

Glass Straight Line Edging Machine for Grinding Polishing

Basic Info.

Model NO.:

E-LD4325

Price


Certification:

CE

Type:


Export Markets:

North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Western Europe

Additional Info.

Trademark:

EWORLD

Packing:

Packed in Wooden Case, Seaworthy Package

HS Code:

8464201000

Production Capacity:

10 Sets/ Month


Specifications

Small glass edging machine
4 spindles
Speed stepless control
Electric controlling
More wheels acceptable



4 spindles, able to process flat edging with 45 degree arris.



Functions:



Processes rectilinear glass plates in various sizes and thicknesses;



The grinding (roughing), finishing resin and fillets can be performed simultaneously;



The same thickness as the glass sheet can be continuously processed, so that the machine allows having a larger volume of

production lines hardening processes, rolling processes and other processing.



Technical data



Item

Specification

Maximum flat edging level:

3mm

Maximum arrising width:

2.5mm

Arrise angle:

45°

Max. glass size:

2440x3660mm

Min. glass size:

60x60mm

Glass thickness:

3-25mm

Working speed

0.7-7.0m/min

Overall dimension

6000x1000x2500mm

Worktable height

750mm

Weight

1800kg

Installed power

9.85kw



Main Part description



Machine basement, cast steel

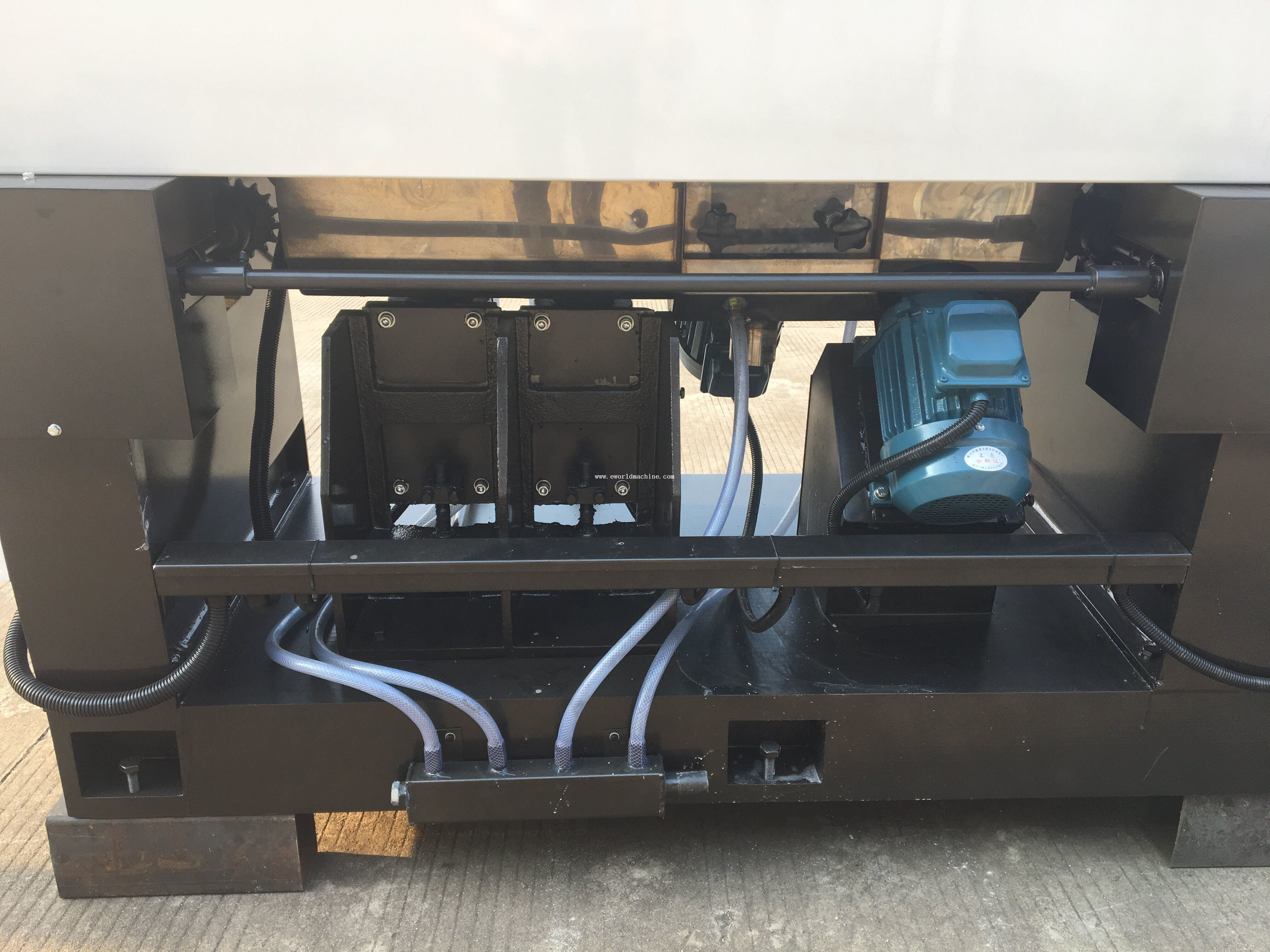

Motors for spindles: Chinese brand, 2840Rpm/min for diamond wheel, Resin wheels, Yew wheel; For felt wheel the speed is 1400rpm/min



Cycloid-pin wheel: Chinese brand

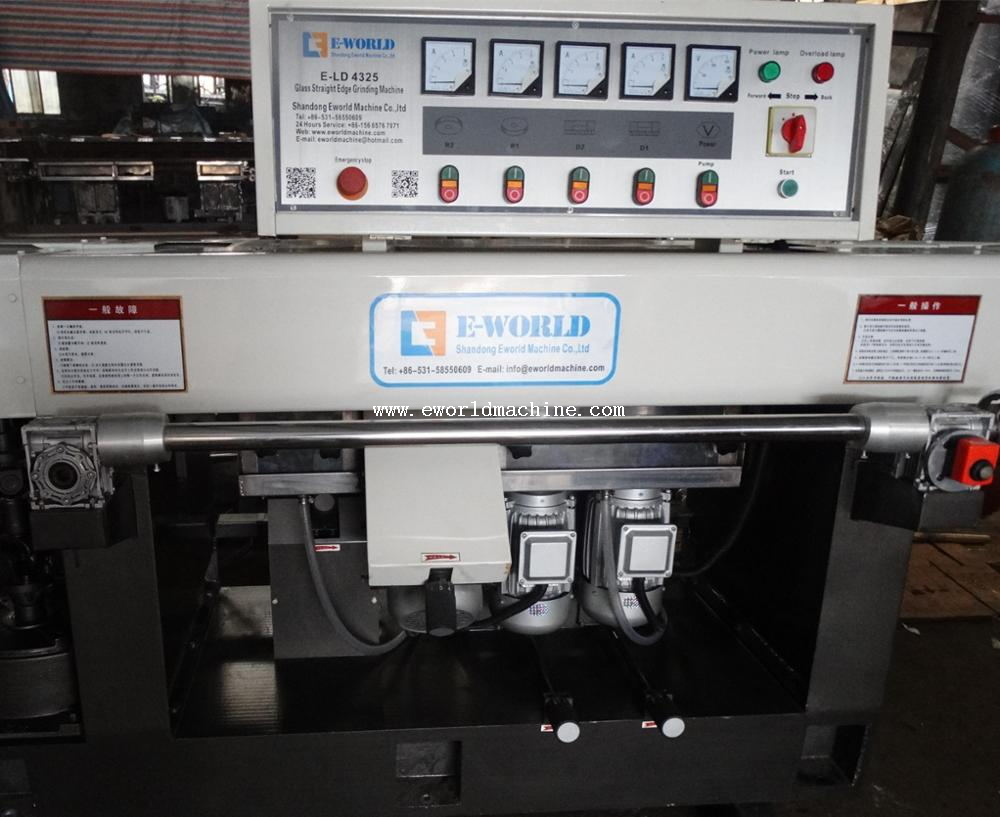

Control system: electric



Speed control: stepless speed control



Wheels arrangement:



#

Wheels

#

Wheels

1

Diamond wheel, for bottom edge

3

Diamond wheel, for arris

2

Resin wheel, for bottom edge

4

Diamond wheel, for arris
