Aluminium Window and Door Automatic Corner Crimping Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
以下为这款铝门窗组角机的优化方案。图片编号、原图识别和Alt均放在对应配图位置,英文内容可直接复制。

本页已核对:6张顶部产品图、10张详情图。根据现有素材,采用4个详情标签页,不额外增加缺少素材的案例板块。

一、TKD设置
字段 可直接复制的英文内容
Title Single-Head Aluminum Corner Crimping Machine Supplier-xscast
Keywords Single-head Aluminum window and door crimping machine; Hydraulic Aluminum window and door crimping machine; Foot-operated Aluminum window and door crimping machine
Description We join aluminum window and door profiles with 90-degree corner crimping. Explore the single-head setup, positioning tools and specifications for your frames.


Title:60字符;Description:158字符,包含空格及标点。Keywords保留原产品分类词“Aluminum window and door crimping machine”。

二、详情分类及图片安排
切换标签名称 展示内容 图片安排
Product Features 90°角码连接、双侧组角机构、定位夹紧、脚踏及控制面板 D01、D02,可结合顶部细节图
Technical Specifications 型号、电源、功率、气耗、压力、尺寸和重量 原有文字参数表
Company & Certificates 公司介绍、厂区、车间、证书、展会和客户交流 D03—D08
Delivery & FAQs 包装运输、安装培训、售后、选型和采购问答 D09、D10及原FAQ文字


顶部展示区单独保留H1、简述、产品图、型号及询价按钮。详情标签内部从H2开始。
三、顶部产品介绍
Single-Head Aluminum Window and Door Corner Crimping Machine
Our single-head aluminum corner crimping machine joins prepared window and door profiles into frames. It is designed for 90-degree corner connections using an internal aluminum corner cleat and opposing crimping blocks.

The machine photographs show the corner-positioning area, clamping mechanism, profile supports, control panel and foot pedal. This configuration allows operators to position the profiles and complete corner joining as part of the frame assembly process.

Send us your profile cross-sections, corner cleat details and production requirements. We can help you review the tooling, machine configuration and local power supply requirements.
  • LZJ02-120

  • Eworld

  • 8475291900

Availability:
Quantity:

Aluminum Corner Crimping for 90-Degree Frame Connections

Join Aluminum Profiles With Internal Corner Cleats

The machine is designed for corner joining in aluminum-alloy window and door production. An aluminum corner cleat is inserted into the prepared profile cavities, and the opposing crimping blocks deform the profiles at the connection points.

This operation brings the two profile members together to form a 90-degree frame corner. The profile shape, corner cleat and crimping tool positions should be reviewed together before confirming the machine setup.

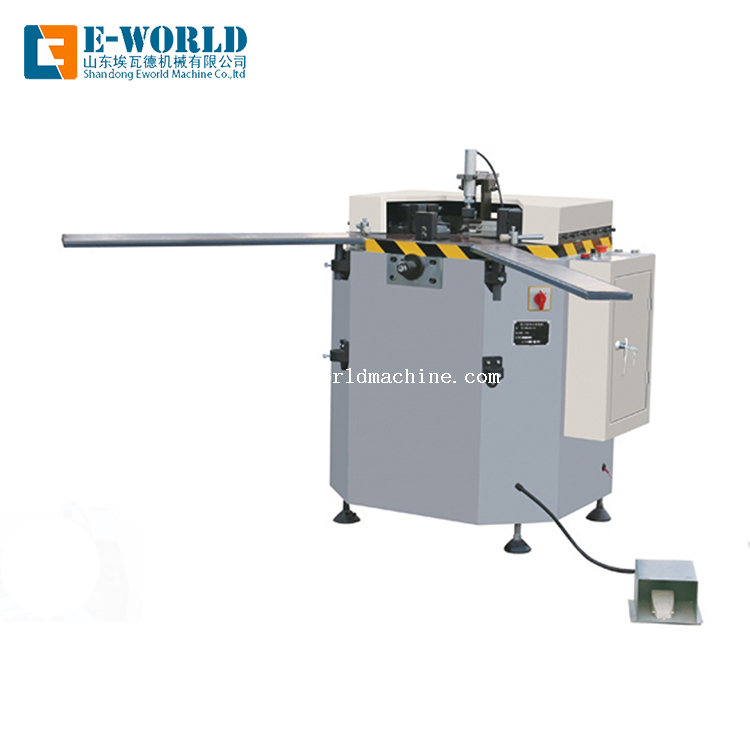

Single-head aluminum corner combining machine with support arms and a foot pedal

Opposing Crimping Blocks and Profile Positioning

The work area contains opposing crimping blocks, positioning tools and an upper clamping assembly. These components support the profile members while the corner connection is formed.

Before selecting the tooling, provide the profile cross-section and corner cleat drawing. Confirm the crimping locations and finished joint requirements against the actual profile geometry.

Foot Pedal and Hydraulic Controls

The equipment photographs show a foot pedal, emergency stop, power indicator and hydraulic start control.

These controls form part of the machine’s operating arrangement. Operators should follow the supplied instructions for profile loading, positioning, clamping and the crimping sequence.

Aluminum corner crimping machine details showing joining tools, controls and the electrical cabinet

Profile Support for Window and Door Frame Assembly

The extended support arms help support profile members around the corner-joining area. Review the support arrangement against your frame dimensions and workshop handling requirements.

This machine is used after the profiles have been prepared for assembly. It should be selected as part of the overall cutting, profile preparation and frame-joining workflow.

Aluminum Window and Door Crimping Machine Specifications

Review the electrical supply, compressed-air requirements, listed pressure and installation dimensions before selecting the equipment.

Parameter

Specification

Model Number in the Specification Table

LZJ-02

Voltage

380 V / 50 Hz

Motor Power

1.5 kW

Air Consumption

2 L/min

Maximum Pressure Listed

16 MPa

Air Supply Pressure

0.5–0.8 MPa

Overall Dimensions — L × W × H

830 × 1000 × 1200 mm

Weight

380 kg

Confirm Power Supply and Installation Requirements

Tell us your local voltage and frequency before ordering. We can review the required electrical configuration together with the compressed-air supply and installation space.

The listed maximum pressure and air supply pressure are separate specifications. Confirm their operating definitions and setup requirements in the technical documentation supplied with the machine.

Match the Tooling to Your Aluminum Profiles

For a configuration assessment, provide:

  • Profile cross-section drawings.

  • Corner cleat dimensions and connection details.

  • Window and door frame dimensions.

  • Required production output.

  • Local power supply and compressed-air conditions.

The page uses LZJ02-120, LZJ-02 and LMD-120 in different locations. Confirm the exact model designation and quoted configuration before ordering.

Corner Crimping Machine Delivery, Training and FAQs

Packaging and Shipping Arrangements

The shipping collage shows protective wrapping, wooden packaging, forklift handling and container loading for different machinery.

Confirm the packing method, shipment dimensions, handling requirements and delivery scope for the selected corner crimping machine before dispatch.

Protective wrapping, wooden packaging and container loading for Eworld machinery

Installation, Commissioning and Operator Training

We can discuss engineer-assisted installation, adjustment and operation training. English manuals, video tutorials and remote technical support are also listed in the existing service information.

Confirm the training method, installation responsibilities, support arrangements and consumable supply with the equipment quotation.

Eworld installation, commissioning, technical training and after-sales support team

FAQ

Question:Are you manufacture?

Answer:Yes,we are the professional manufacture which have more than 5 workshops.

Question: How about the service ?

Answer:

1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour

2).deliver max. days within 15 days

3).24 hours for after -sale serive

4).more than 12 years experience in this kind machine field

5).fluent english ,communication barrier free

Question:What’s the guarantee ?

Answer:

1).Our guarantee for 18 months.

2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).2 year quality guaranty for the machine (excluding the consumables)

5).We will provide the consumable parts at an agency price

6).24 hours on line service each day, free technical support.

Q: Do you provide equipment operation training?

Answer:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. Allof our engineers have passport.

Question:if our price is higher than another company or factories ?

Answer:please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts,sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous andreliable parts for the machines inside.

Question:How long is the delivery time ?

Answer:For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.

Question: What is the payment ?

Answer:Any payment method you want,such as L/C,T/T,D/P,West-union and so on.
