Availability: | |
---|---|
Quantity: | |
HLB1600
Eworld
Model NO.: | Horizontal Insulating Glass Production Line |
Price | |
Certification: | CE |
Type: | |
Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Western Europe |
Additional Info.
Trademark: | EWORLD |
Packing: | Packed in Wooden Case, Seaworthy Package |
HS Code: | 8464201000 |
Production Capacity: | 10 Sets/ Month |
BX1600 Horizontal Insulating glass machine
1.BX1600 glass washing and dry machine
1).Main Funtion Intrduction:
1. glass washing machine is a special multifunctional equipment for flat glass cleaning.have good dry effect of cleaning.
2. dry section adopt sponge stick to absorb water
3. washing section and water systerm adopt stainless steel and corrosion-resistant materials
4. recirculating rinse to save water
2).Main Technical Date:
1. total power:8.43KW
2. voltage:
3. working speed:1.2-5m/min
4. min glass dimension:400mm*400mm
5. max glass dimension:1600mm*2500mm
6. max insulating glass thickness:12mm
7. dimension:4000mm*2000mm*1200mm
Note:the machine has following dimension:
BX1200,BX1500,BX1600,BX1800,BX2500
2.BX1600 hot roller press machine
1).Main Funtion Intrduction:
• Adopt halogen heating pipe , high heating efficiency, longer life.
• Adopting the stepless speed regulation mechanism can relize stepless speed regulation and smoothly drive.
• Adopting precision measurement systems can make the upper-lower rubber roller get the exact size needed.
• The incubator produced by the resistant high temperature material is to prevent heat loss.
• Four pairs of two different hardness rubber rollers can ensure to make the whole glass uniform pressure, and make the size of thickness accurate.
•The main components imported ensure stable operation of the equipment, reliable performance..
•The digital display temperature control equipment operate more handy.
• The shelf body is made of the high-quality carbon steel material, which is strong light ,the surface sprayed is anti-rust.
2).Main Technical Date:
Input power: 220V
Frequency: 60HZ
Main axis power: 0.37 KW
Heating stove power: 30KW
Processing glass width: 1600mm
Working glass thickness: < 40mm
Glass conveying speed:0 –6m/min
Dimension: 3800*1800*1200mm
Total weight: about 1000KG
Note:the machine has following dimension:
BX1200, BX1600, BX1800

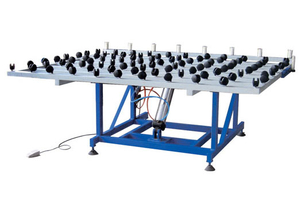

3.Glass assemble table
1).Main Funtion Intrduction:
1.This machine is special designed for installing rubber bar and assembling for saw glass of insulating glass.
2.the machine adopts PLC, accomplish the action circulation of all index units to make glass complete 90-degree angle distributed gynation,locate and lay rubber bar automatically.the table locates through two sides tomake assembly easily.
3.the machine has special-designed hanging-thick table to make glass move smoothly it’s the ideal equipment for producing complex rubber bar insulating glass.
2).Main Technical Date:
Dimendion: 1650*1650*650mm
Power supply: 220V
Max angel: 80 degree
Air pressure: 6KG
Weight 300KG
4. Tilt talbe
it is designed for delivery the finished insulating glass easily
Technical date:
power supply:220v 60hz 3-phase 4-wire
tilt degree:0-80degree
hight:750mm
table size:1200mm*2000mm(as your request)
weight:310KG
*20years factory production experience*3 years machine warranty
*156 exported country experience
*20000 square meters Glass machine&upvc windows machine factory
*Shandong Eworld Machine Co., Ltd.
Shandong Eworld Machine Co., Ltd. is one of the famous and big manufacturers of glass equipment, windows equipment, CNC equipment.
Since its inception in 2002, and after many years of development and growth, the company is now playing a leading role in glass machinery and windows door machine inChina Eworld group has 2 factories, which are located in Jinan City. Advanced products, exquisite techniques, solid working, and cordial services
About glass deep processing machines, we are professional and have full set certificates.For every glass cutting machine, we have
serious quality control for every machine and every parts before it leaves our factory.
Welcome to visit our factory!If you have plan to come to China and see our machines, please contact us at least 15 days in advance
then we can arrange our
schedule and arrange to treat you.
No matter which transport method you choose, we will pick up you.
If you have any questions, please feel free to contact us.
24*7, we always be here !
FAQ
Question:Are you manufacture?
Answer:Yes,we are the professional manufacture which have more than 5 workshops.
Question: How about the service ?
Answer:
1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour
2).deliver max. days within 15 days
3).24 hours for after -sale serive
4).more than 12 years experience in this kind machine field
5).fluent english ,communication barrier free
Question:What’s the guarantee ?
Answer:
1).Our guarantee for 18 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).2 year quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.
Q: Do you provide equipment operation training?
Answer:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. Allof our engineers have passport.
Question:if our price is higher than another company or factories ?
Answer:please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts,sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous andreliable parts for the machines inside.
Question:How long is the delivery time ?
Answer:For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
Question: What is the payment ?
Answer:Any payment method you want,such as L/C,T/T,D/P,West-union and so on.
