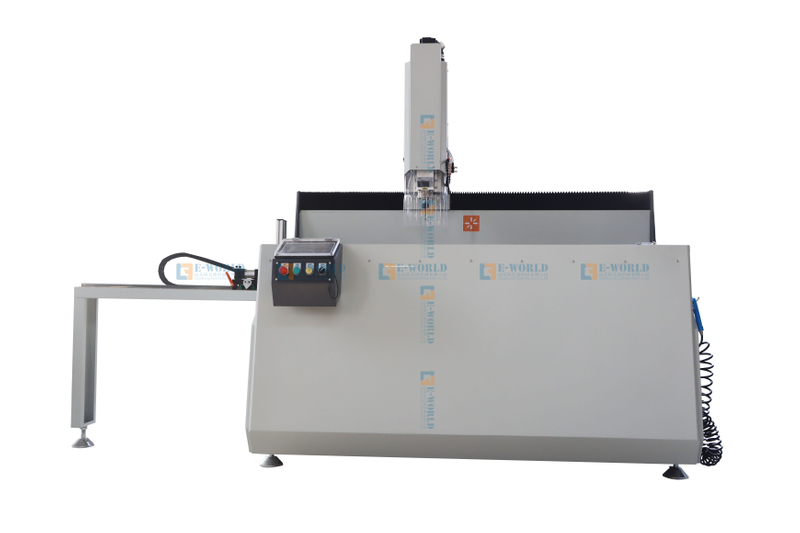

CNC Aluminum Profile Drilling And Milling Machine

Use for Aluminum profiles milling and drilling,water slot,circle hole,deform hole,and flat engraving
Availability:
Quantity:
  • LXG CNC-3500
  • Eworld

cnc钻铣床

Use

Use for Upvc profiles milling and drilling,water slot,circle hole,deform hole,and flat engraving

Product  Description

1.Using advanced industrial CNC systems, friendly human-machine interface, device operation is simple

2.X-axis high-precision helical gears, helical rack, Y-axis, Z axis with high precision ball screw transmission, smooth transmission, high precision

3.Bed made of high strength steel welded structure, completed after thermal aging treatment of machining in one clamping

4.Adopts imported high precision linear guideways, ball screws, gear racks and servo motor, ensuring smooth motion, positioning and processing of high precision

5.High-quality imported high speed spindle ensure stability, stability of rotation noise, cutting ability

6. Automatic conversion process G code programmed software, simple operation, high efficiency, low labor intensity

   IMG_20211104_161945  IMG_0754

Industry Application

Transportation products manufacturing (trains, cars, ships, etc), Medical equipment, bathroom accessories, windows&doors, curtain walls, interior decoration and other industries

Technical Parameters

X-axis stroke

3500mm

Y-axis stroke

300mm

X-axis feed rate

0~60m/min

Y-axis feed rate

0~48m/min

X-axis positioning accuracy

±0.05mm

Y-axis positioning accuracy

±0.05mm

Z-axis stroke

200mm

Repeat location accuracy

±0.02mm

Z-axis feed rate

0~20m/min

Roughness

Ra 6.3 um

Z-axis positioning accuracy

±0.02mm

Spindle Power

5.5kW

Power Specification

380V/50Hz

Spindle Speed

0~18000rpm

Total Power of Machine

8.5kW

Working Pressure

0.60.8MPa

Machine Size

6500x1420x1750mm

Weight

1200kg

Devices are used ER25 collet, clamped milling tool shank diameter is 2~16

Optional ER32 collet clamped milling tool shank diameter is 2~20;

ER40 collet clamped milling tool shank diameter is 3~27


公司简介

*20years factory production experience*3 years machine warranty

*156 exported country experience

*20000 square meters Glass machine&upvc windows machine factory


*Shandong Eworld Machine Co., Ltd.


Shandong Eworld Machine Co., Ltd. is one of the famous and big manufacturers of glass equipment, windows equipment, CNC equipment.
Since its inception in 2002, and after many years of development and growth, the company is now playing a leading role in glass machinery and windows door machine inChina Eworld group has 2 factories, which are located in Jinan City. Advanced products, exquisite techniques, solid working, and cordial services

埃瓦德工厂大门

工厂证书

About glass deep processing machines, we are professional and have full set certificates.For every glass cutting      machine, we have
serious quality control for every machine and every parts before it leaves our factory.

展会

We went to many exhibitions in China to expand our reputation.

客户合影

Welcome to visit our factory!If you have plan to come to China and see our machines, please contact us at least 15 days in advance
then we can arrange our
schedule and arrange to treat you.
No matter which transport method you choose, we will pick up you.
If you have any questions, please feel free to contact us.
24*7, we always be here !

发货我们的服务

FAQ


Question:Are you manufacture?

Answer:Yes,we are the professional manufacture which have more than 5 workshops.


Question: How about the service ?

Answer:

1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour

2).deliver max. days within 15 days

3).24 hours for after -sale serive

4).more than 12 years experience in this kind machine field

5).fluent english ,communication barrier free


Question:What’s the guarantee ?

Answer:

1).Our guarantee for 18 months.

2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).2 year quality guaranty for the machine (excluding the consumables)

5).We will provide the consumable parts at an agency price

6).24 hours on line service each day, free technical support.


Q: Do you provide equipment operation training?

Answer:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. Allof our engineers have passport.


Question:if our price is higher than another company or factories ?

Answer:please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts,sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous andreliable parts for the machines inside.


Question:How long is the delivery time ?

Answer:For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.


Question: What is the payment ?

Answer:Any payment method you want,such as L/C,T/T,D/P,West-union and so on.
