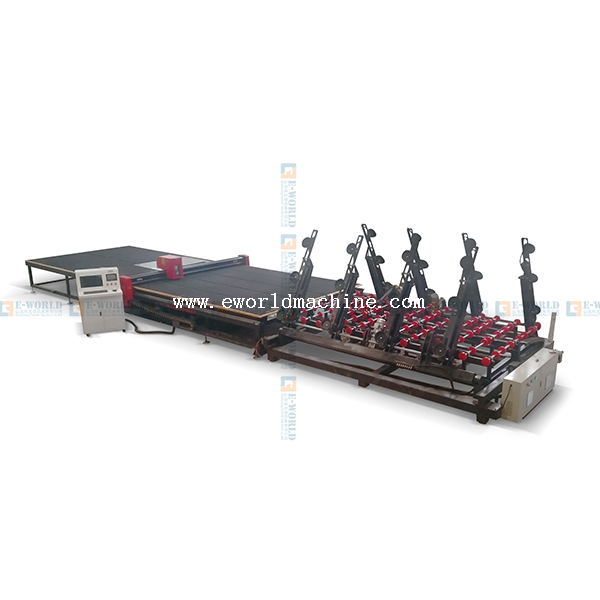

Full CNC Automatic Glass Cutting Production Line

We, as a Manufacturer, Supplier and Exporter, present Fully Automatic Glass Cutting production line. Our machine is available in a number of capacities. Its dimensional accuracy and durability set it apart from the rest. On customers request, we make the customized specifications available. Rest assured of quality as we are very selective about the quality of raw material. Our quality checks ensure we leave no stone unturned in getting our valued customers the flawless quality

Quantity:
  • CNC-L3726
  • Eworld

Basic Info.

Model NO.:

CNC-L3726 Automatic CNC Glass Cutting Production line

Price


Certification:

CE

Type:


Export Markets:

North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Western Europe

Additional Info.

Trademark:

EWORLD

Packing:

Packed in Wooden Case, Seaworthy Package

HS Code:

8464201000

Production Capacity:

10 Sets/ Month







CNCL-3726 Automatic CNC Glass Cutting Production line

Equipment:

1. Equipped with 6 sets of imported cutter wheels and a set of setting tool.

2. A set of stability voltage power supply.

3. A set of best optimized software.

4. A set of computer operating system (including a set of computer and cutting software)



Mechanical

1. The material of the tabletop: Metal tabletop(deformation will not happen)(The smoothness≤±0.2mm/m)

2. Rack/Guides: Imported from Japan and switzerland.

3. Transmission belt/Transmission belt wheels: Barbieri in Italy.

4. Cutter wheels/cutter holder: Samsung in Japan.

5. The tabletop: Industrial blankets imported from Korea (color in black).

6. Turret: It use the pneumatic pressure and the spring pressure at the same time to make the cutting best.



Electrical:

1. It’s operated directly by pc and adopt Microsoft Windows.

2. Voltage: 380v/50Hz. It’s equipped with stability voltage device.

3. Motor: Yaskawa servo motor made in Japan(3 sets) and  operating card imported from America.



Technical parameter:

The cutting accuracy:

Parallelism:≤±0.20mm  catercorner:≤±0.2mm

The cutting speed:

0~120m/minute(can be adjustable)

The outline size:

4000×3200×1100mm;

The max cutting size:

3660×2440mm

The oiling supply method:

Auto oiling.

The positioning system:

Pneumatic positioning system.

The tabletop size:

3800×2600mm

Software:

1.Special cutting soft(It can be used under Windows System).

2.There is a graphic library with hundreds of shapes which is convenient for drawing and operating.

3.There is also a set of Auto CAD drawing software.

4.The optimized software can be selected(Enter the size of the sheet glass directly, then it can cut the glass automatically and it’s not necessary to cut by using CAD drawing).

5.There is a function of auto correcting which can make the cutting accuracy high.

6.There is also a selecting function of cutting path.

7.There is also a function of origin point correcting.

8.Operating Entering: Key board and mouse.
