Full Electric Floor Crane Vacuum Lifter for Glass, Marble, Wood Panel

Full Electric Floor Crane Vacuum Lifter for Glass, Marble, Wood Panel

Quantity:
  • GL500
  • Eworld

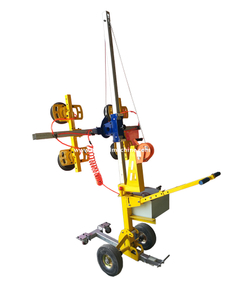

Full Electric Floor Crane Vacuum Lifter for Glass, Marble, Wood Panel

Model: GL500

Product Application

It is suitable for lifting of glass, steel plate, marble and flat plate.
It has four suckers, six suckers, eight suckers, and so on.


Main Features


Electric Vacuum Lifter for Glass, Marble, Wood Panel is made up of two control systems (i.e., the suckers are arranged in two rows), The finished product type of sucker (the arrangement of the type of a sucker) controls the car's elevation and the turning of glass, marble and other planar goods. When operating, it can absorb and lift the flipped plate by controlling the sucker.
It has the functions of walking before and after electric power, electric hydraulic lifting, suction and suction guarantee system, electric flip and so on.


1.Sucker suction guarantee system, if there is a set of suction leakage, another set of suckers can also absorb the cargo, ensure that the normal operation of the car can suck up, lift the flip of the plate.

2.Small product appearance;Easy access to elevators.Clever design;The multifunction key is focused on the control handle.

3.Mobile convenience;Electric walking, electronic stepless speed regulation, smooth walking, high power drive motor, ensure the safety of the carrying glass.

4.It is convenient to charge and equipped with intelligent charger, which can be used to supply the electric quantity at any time.


Full Electric Floor Crane Vacuum Lifter for Glass, Marble, Wood Panel

Capacity: 500kg

Lifting height: 3700mm

Height Forward Extension:610mm

Electric hydraulic tilting forwards & backwards from vertical to horizontal thru: 180deg

Manual rotating: 360deg

Battery: 2*12V/120Ah

Charger: 24V/15A

Drive motor: 24V/700W

Lift motor: 24V/2000W

Drive speed(with or without load): 3.5km/4.5km/h

Lift speed(with or without load): 13mm/18mm/s

Down speed(without load): 19mm/s

Packing size: 2600mm(L)*960mm(W)*2000mm(H)  N.W: 1000kg
