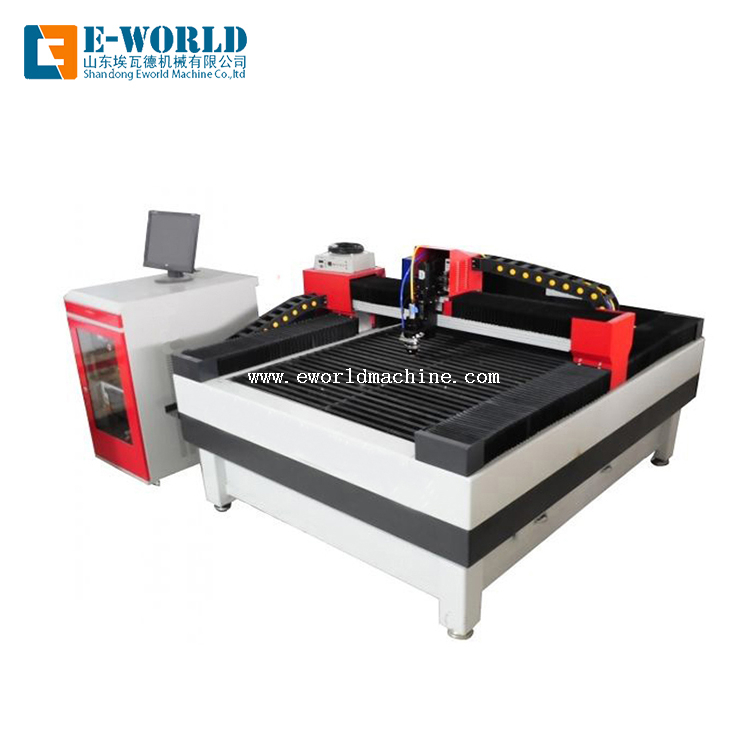

High Speed Fiber Metal Engraving Laser Marking Machine

High Speed Fiber Metal Engraving Laser Marking Machine,Laser cutting is a technology that uses a laser to cut materials, and is typically used for industrial manufacturing applications, but is also starting to be used by schools, small businesses, and hobbyists. Laser cutting works by directing the output of a high-power laser most commonly through optics. The laser optics and CNC (computer numerical control) are used to direct the material or the laser beam generated.

Quantity:
  • DW1530
  • Eworld
  • 8475291900

Fiber Laser Cutting Engraving Machine for Carbon Steel


Laser cutting is a technology that uses a laser to cut materials, and is typically used for industrial manufacturing applications, but is also starting to be used by schools, small businesses, and hobbyists. Laser cutting works by directing the output of a high-power laser most commonly through optics. The laser optics and CNC (computer numerical control) are used to direct the material or the laser beam generated. A typical commercial laser for cutting materials would involve a motion control system to follow a CNC of the pattern to be cut onto the material. The focused laser beam is directed at the material, which then either melts, burns, vaporizes away, or is blown away by a jet of gas,  leaving an edge with a high-quality surface finish. Industrial laser cutters are used to cut flat-sheet material as well as structural and piping materials.


Fiber LASER CUTTING Advantages:


1, Cost saving on power consumption/ only 20-30% of co2 laser cutting machine under same power.
2, Flexibility and precision cutting of simple or complex parts
3, Adopts imported world brand fiber laser/Life time over 100,000hrs
4, Imported servo motor and gearing system ensure precision cutting
5, High quality cut with no extra finishing required
6, Higher cutting speed and efficient, speed of cutting plate over 10 meters per minute
7, Non contact cut which means no marks or contamination of the material
8, Ability to cut virtually any sheet metal

Applicable Materials:
Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.

Applicable Industry:
It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.

Type

Description of Functions & Features

Laser generator

DW- 1530

Fiber  Laser Cutting Machine

1. IPG Laser Generator from Germany

2. 500w or 1000w Pulse Laser System

3. Professional Laser Cutting Operation System

4. Gantry CNC Platform (Effective Working Area: 1500*3000mm)

5. Original Panasonic Servo Motor; Taiwan HIWIN Ball Screw &Guide Rail; Repeat Location Accuracy ±0.02mm; Cutting Accuracy=< ±0.08mm

6. Refrigerating System: overtemperature protection, temperature stability±0.5℃, environmental protection single-cycle water-cooling machine

IPG 1000W

IPG 1000W

Add rotary



Notes:

a, Quality guarantee period: one year

b, Delivery:45 days

c, Payment terms: 50% as deposit,50% before shipping  or other
