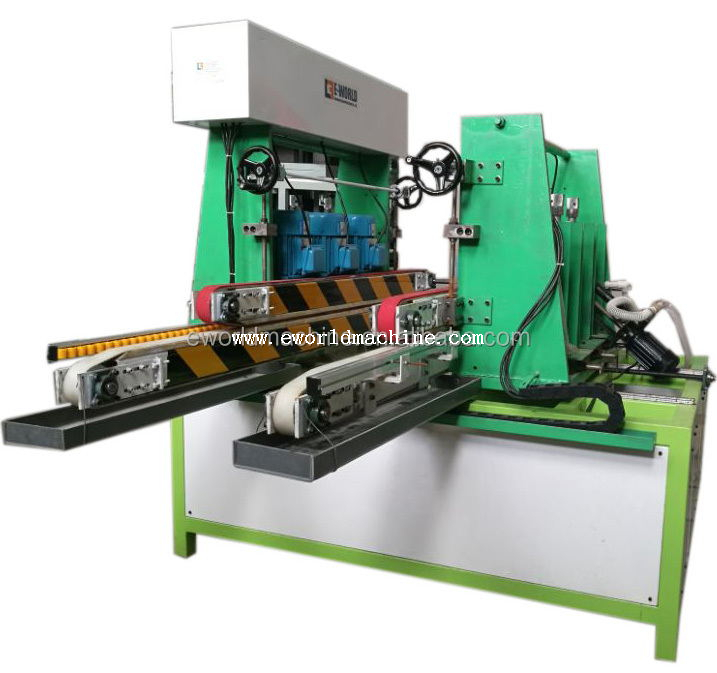

High-speed Glass Double Side Straight Line Edge Grinding Machine

High-speed glass double side straight line edge grinding machine

Quantity:
  • EWD3010
  • Eworld

High-speed glass double side straight line edge grinding machine


Basic Info.

Model NO.:

EWD3010

Price


Certification:

CE

Type:


Export Markets:

North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Western Europe

Additional Info.

Trademark:

EWORLD

Packing:

Packed in Wooden Case, Seaworthy Package

HS Code:

8464201000

Production Capacity:

10 Sets/ Month

Double Sides Straight Line Glass Edging Machine

Feature

Double edge glass grinding machine is economical,efficient equipment with high technique.It adopt ball screw and linear guide rail to have nice repeat positioning,Main convey driver adopts stepless gear ,Glass convey adopts ring synchronous belt to be sure have smooth transmission, accurate positioning

Technical parameter:

1 Volt:380V/50HZ

2 Speed:0~5m/min

3 Min size:300X300 mm

4 Max width:1000mm

5 Glass thickness:3~15 mm

6 Pointedness max thickness2mm

9 Total power:11.5Kw

10 Max weight:1600 Kg

11 Over size:2800mmX2200mmX1700mm

12 Working height:900mm±30mm



二、磨轮分布结构 Wheel position



             wheel

name    parameter

wheel 1

wheel 2

wheel 3

motor

功率(KWpower

1.5*2

1.5*2

1.5*2

Rotating speed(rev/min)

2800

2800

2800

wheel

m size

Ф150  100

Ф150  180

Ф150 180

 Name

Diamond wheel

diamond wheel

 resin wheel

Convey motor

Convey motor 2.2 KW






Main parts structure

Adopt ball screw and linear guide rail to have nice repeat positioning

Main convey driver adopts stepless gear

Main convey axis is located at top to change easily and maintain

Glass convey adopts ring synchronous belt to be sure have smooth transmission,accurate positioning
