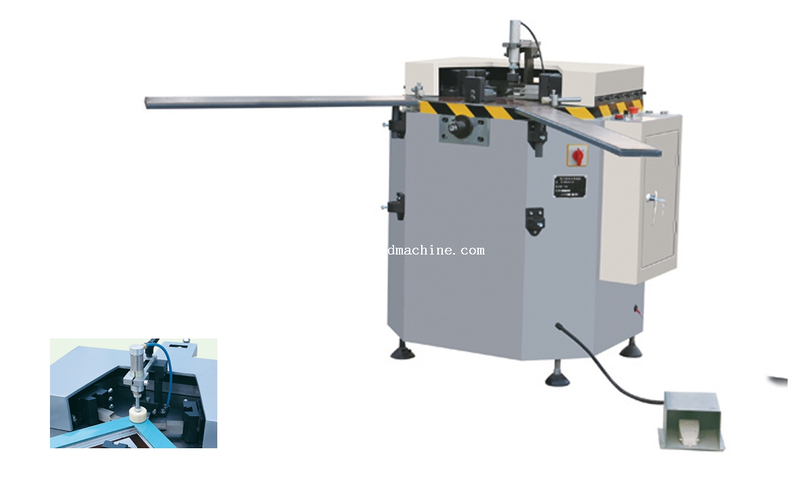

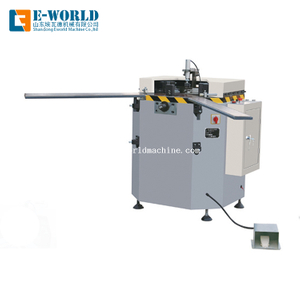

Hydraulic aluminum window and door crimping machine

Hydraulic aluminum window and door crimping machine is used for production line of hi-grade alu-alloy doors and windows. mainly used for extrusion and connection of 90º seam casement window with angle jointing operation, place an angle-alu in cavities of two driven striking blocks punch towards the flute of angle-alu, Extruding the seam of two profiles makes strength,

Quantity:
  • LZJ02-120
  • Eworld
  • 8475291900

Hydraulic aluminum window and door crimping machine

Hydraulic aluminum window and door crimping machine

1).Hydraulic aluminum window and door crimping machineis used for production line of hi-grade alu-alloy doors and windows. mainly used for extrusion and connection of 90º seam casement window with angle jointing operation, place an angle-alu in cavities of two driven striking blocks punch towards the flute of angle-alu, Extruding the seam of two profiles makes strength,

efficiency and precision of the connection higher than using any means for connection.



2).This machine is used for combining the aluminum profile together to be a whole frame after processed.



3).We also have double head corner combining machine, and four corner combining machine, if you need, I can also list in the quotation, but generally, from begining production, use the single head type is enough for your Aluminum window door production.



4).Before you buy aluminum window and door crimping machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.



5).We have in store, if you need, we can ship in short time for you.

corner crimping machine

Technical parameter:

Model number

LZJ-02

Voltage

380V 50Hz

Motor power

1.5 Kw

Air consumption

2L/min

Most pressure

16 Mpa

Air consumption pressure

0.5-0.8 Mpa

Contour dimension(L×W×H)

830×1000×1200mm

Weight

380Kg
