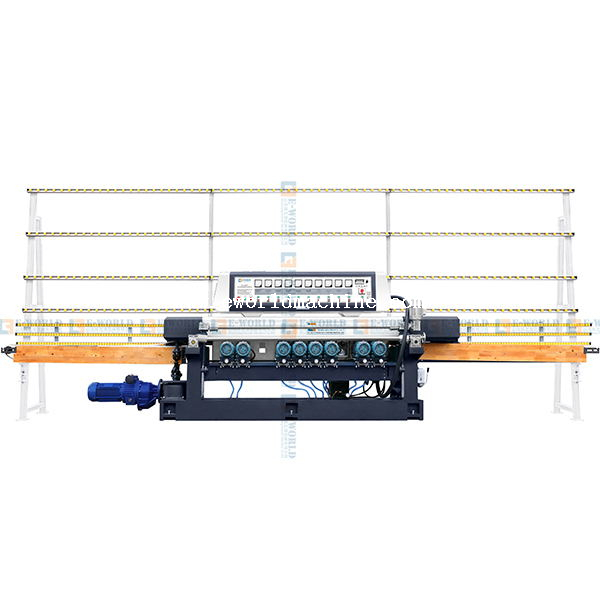

New Design Vertical Type Glass Beveling Machine

Glass Straight-Line Beveling Machine,New Design Vertical Type Glass Beveling Machine
  • E-LD261
  • Eworld

New Design Vertical Type Glass Beveling Machine

Glass Beveling Machine of 9 Motors for Mirror Polishing

Basic Info.

Model NO.:






Glass Bevelling Edging Machine

Export Markets:

North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Western Europe

Additional Info.




Packed in Wooden Case, Seaworthy Package

HS Code:


Production Capacity:

10 Sets/ Month

Product Description

1. CE approved
2. 9 spindles
3. Easy to adjust the angle of the slope and the thickness of the glass
Glass Straight line Bevelling Machine, is suitable for processing the bevel Angle and hemline of glass.



1. Brief introduction
1.1 Adopts the design of 2-wheel grinding, 3-wheel accurate grinding, 3-wheel polishing and 1-wheel hemline repair.
1.2 CVT adjusts the processing speed.
1.3 PLC controller if needed.
1.4 Input and output conveyors adopt timing belt to improve the stability of transmission.
1.5 The finished edge will be as bright and clear as the glass itself.
1.6 Easy to operate and maintain.
1.7 All items have got CE approved,  and are strictly according to CE standard.

2.  Technical parameter
Quantity of motors: 9 sets
Minimum grinding size: 50 mm x 50 mm
Thickness of the processed glass: 3mm - 12mm
Grinding speed: 0.4 - 5m/min
Beveling degree: 0-30°
Beveling width: 1.5mm-40mm
Power: 21kw
Voltage: 380V/50 Hz
Weight: 3500 kg
Packing size: 3.8m χ 1.2m χ 1.5m
External dimension(L x W x H): 7.0m x 1.2m x 2.5m

Machine characters:

l Cast steel machine base

l Single chip control system

l 9 wheels, 1 felt polishing wheel, with cerium oxide, pneumatic polishing assistant.

l Glass thickness, angle adjustment adjusted on control panel

l High speed inducing motor. Speed 2480rppm/min.

l Conveyor chain

l Stainless steel water tank

l Aluminum or steel glass support for option
