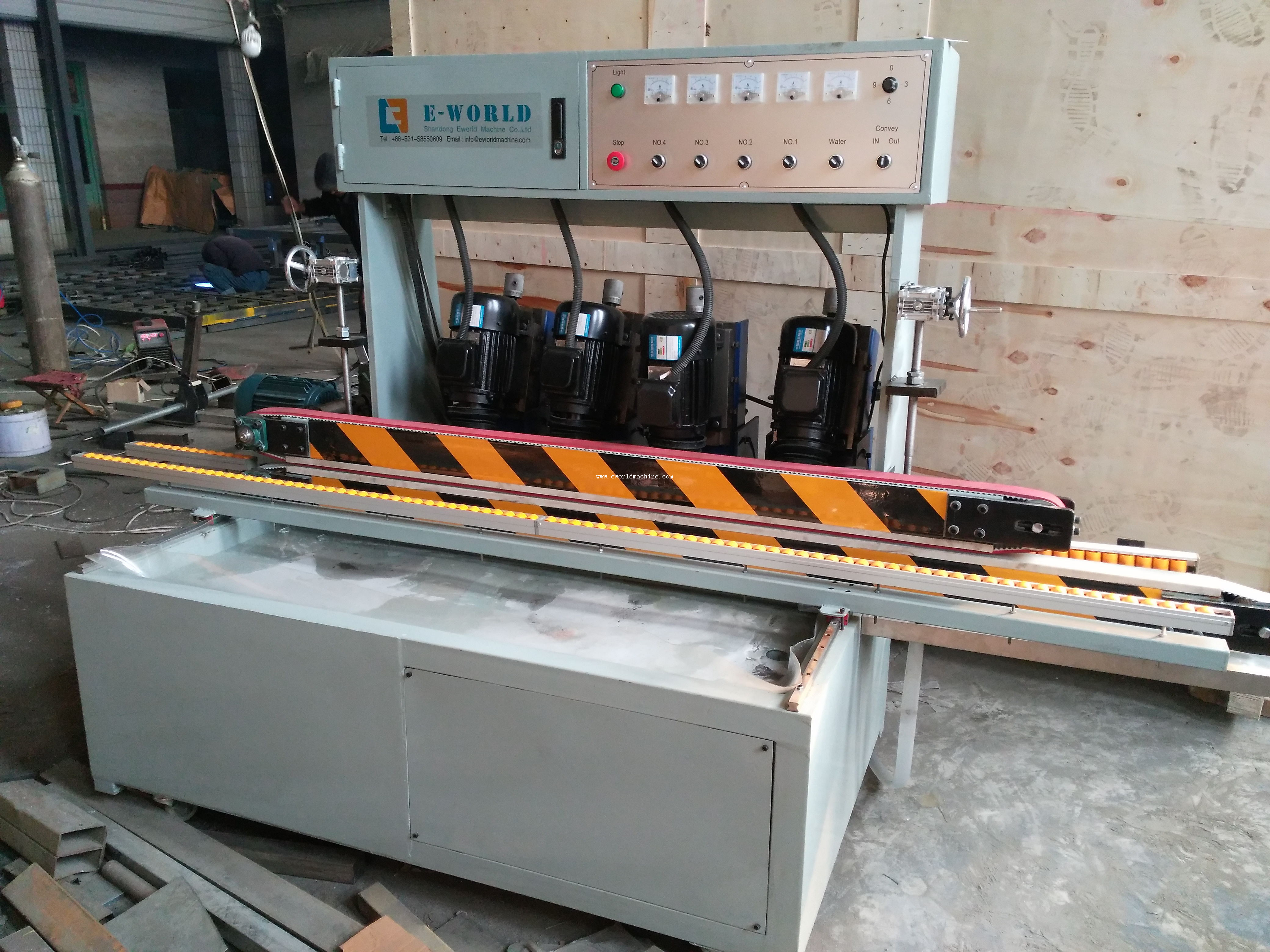

Portable Small Glass Straight Line Beveling Machine
| Quantity: | |
|---|---|
Portable Small Glass Straight Line Beveling Machine
Basic Info.
Model NO.: | H-LD4 |
Price | |
Certification: | CE |
Type: | |
Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Western Europe |
Additional Info.
Trademark: | EWORLD |
Packing: | Packed in Wooden Case, Seaworthy Package |
HS Code: | 8464201000 |
Production Capacity: | 10 Sets/ Month |
1.Introduction
Glass straight edging machine is mainly used for grinding and polishing of different size and thickness of the flat glass edges.
This machine adopts mechanical continuously variable transmission to adjust the processing speed, large tuning range, which can meet the processing requirements of different thickness and sizes and different grades of glass. The machine processing of high precision, convenient operation, simple.
2.Technical parameters
Dimensions (L × W × H): 3000mm × 1300mm × 1800mm
Table height: 1800mm
Total weight: 1700kg
Voltage: 3 P 380V 50HZ
Total power: 9KW
Speed range: 0. ~ 6m/min
Processing parameters:
Processing glass, minimum size: 50 x 50mm
Glass thickness: 3 ~ 15mm
SEVEN grinding wheel for grinding and polishing :
1 #,2 diamond wheel : Rough grinding
3 #, 4 #: resin wheel for fine grinding
