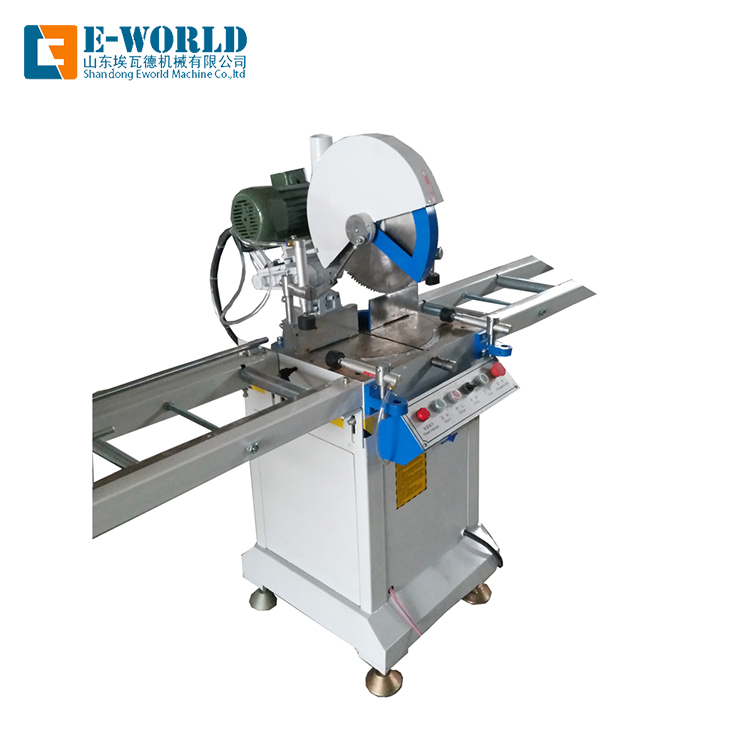

PVC Profile Single Head Cutting Saw

Single head cutting saw is used for processing the aluminum and PVC/plastic profiles at angles of -45º ~90º ~45º , the swaying stable feeder is adopted, and the pneumatic driving system is used in profiles clamping and cutting. It has the features of easy operation and high accuracy

Quantity:
  • DSJ02
  • Eworld

DSJ02 Single Head Cutting Saw :USD 800-1400



This machine is used for processing the aluminum and PVC/plastic profiles at angles of -45º ~90º ~45º , the swaying stable feeder is adopted, and the pneumatic driving system is used in profiles clamping and cutting. It has the features of easy operation and high accuracy.



Note: This cutting saw is mainly used in processing PVC/UPVC/plastic/Vinyl window door, it can make about 15-20 pieces windows doors per 8 hours.


Technical parameters:

Model number

DSJ02

Saw cutting(W H)

160mm  120mm

Main motor power

1.1KW

Main motor rotation speed

2840 r/min

Saw blade dimension

350  30

Saw blade swing angle

90~45

Working voltage

380V 50Hz

Repeat locating length

≤0.05mm

Angle cutting tolerance

±5'

Planeness of cutting surface

≤0.10mm

Cutting profile surface roughness

Ra 12.5Um

Overall dimension(L*W*H)

800*900*1300mm

Machine weight(about)

260KG

Quick Details:

Place of Origin:

Shandong, China (Mainland)

Model Number:

DSJ02

usage:

window door profile cutting

machine type:

window door profile cutting saw

certificate:

CE&ISO

Button and contact:

Schneider

Cutting angle:

-45,45,90

Main motor rotation speed:

2840 r/min

Saw blade dimension:

350 30

Repeat locating length:

≤0.05mm

Angle cutting tolerance:

±5'

Planeness of cutting surface:

≤0.10mm
