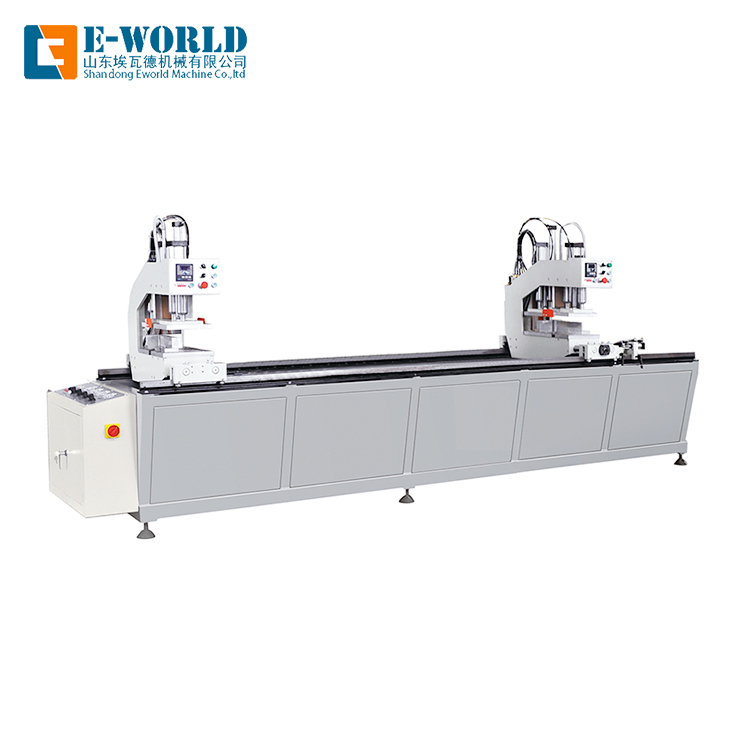

PVC Window Two Head Welding Machine

This machine is one of the necessary equipment for processing PVC window and door.It can complete the whole welding alone.PLC control,stable capability and simple operation.The CM non-oil lubricating bearing and liner moving bearing make high precision and convenient maintaining.The machine has one head that can weld various angles.The two heads can work individually and jointly.It enables welding for many shapes.

Quantity:
  • HJ02-3500.2/2A
  • Eworld


HJ02-3500.2/2.A PVC Win-door 2-head Welding Machine:



Double head welding machine for PVC/UPVC/Plastic/Vinyl window and door



PVC window door welding  machine/Plastic profile welding machine/Vinyl window door welding machinery/Plastic door window making machine/UPVC door window welding machinery/Vinyl door window production machine/PVC UPVC window door farme welding machine/Plastic PVC door window fabrication machine/UPVC profile welder machinery



1.Product Description



1).The machine is used for welding and the combination,used for PVC/UPVC/Plastic/Vinyl profile welding for making window door.with programming control and pneumatic driving systems, it has the features of high reliability, large processing range and easy operation, the two heads can work individually, simultaneously and combinative.



2).This machine can weld about 120 pieces windows doors per day in 8 working hours., if you extend working time, it process more.



3).This machine, it is our common welding machine, if your profile is Europe profile, it is no problem, if your profile is America type profile,it needs to make backup moulds according to the profile sample, so if it is America type profile, it needs customer post the profile sample to us,then we make the moulds according to the sample.



4).If you profile thickness(hight) is higher than 110mm, and also want to use this common welding machine, we can make the welding head higher with some device,but it needs to customer pay some extra charge about this.



5). All machine parts, we use famous brand:



Technical parameters:

Model number

HJ02-3500.2/2A

Power supply

380V /220V 50Hz

Air consumption

100L/min

Motor power

2.5kw

Welding length

400~3300mm

Welding profile height

20~110mm

Welding profile width

120mm

Motor rotational speed

2800 r/min

Operation air pressure

0.4 ~ 0.6Mpa

Contour dimension(L×W×H)

4300×1000×1700mm

Machine weight(about)

950kg

Features:

This machine is one of the necessary equipment for processing PVC window and door.It can complete the whole welding alone.PLC control,stable capability and simple operation.The CM non-oil lubricating bearing and liner moving bearing make high precision and convenient maintaining.The machine has one head that can weld various angles.The two heads can work individually and jointly.It enables welding for many shapes.
