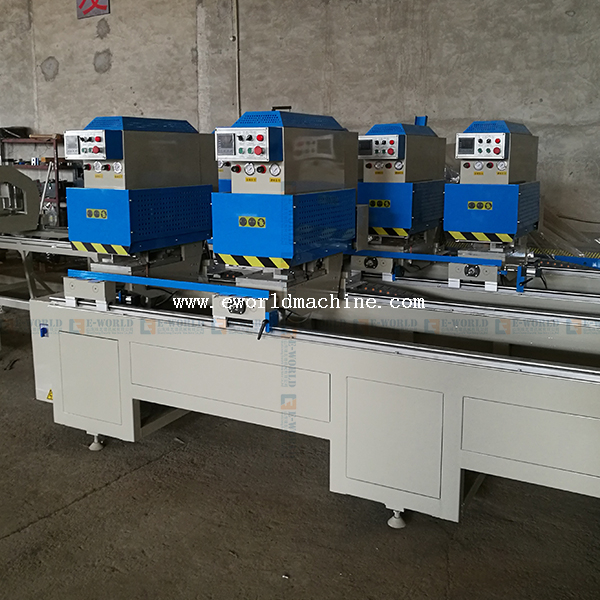

UPVC Door four head welding machine

Availability:
Quantity:

Making use of industrial expertise gained over many years, we keep coming up with products meeting the exact needs of the customers. As a Manufacturer, Supplier and Exporter, we offer yet another quality product in the form of Four Head PVC Window Welding Machine. Our machine is known for its durability and robustness. It is available in a range of specifications and sizes. Lay your hands on it at reasonable rates.

Description :

  • It is a special machine for welding PVC/UPVC/Plastic/Vinyl doors and windows.

  • It can weld and the combination, programming control and pneumatic driving system are used to achieve the high reliability, easy operation and large processing range, The 4 heads can work individually, simultaneously or combinative. This machine suitable for the large production scale. It can make about 50-70 windows in 8 hours per day.

  • If you want to weld the two mullions window frame, you'd better buy this four head welding machine, it can weld the two mullions window frame at one time.

  • This machine, it is our common welding machine, if your profile is Europe profile, it is no problem, if your profile is America type profile, it needs to make backup moulds according to the profile sample, so if it is America type profile, it needs customer post the profile sample to us, then we make the moulds according to the sample.

  • If you profile thickness(height) is higher than 110mm, and also want to use this common welding machine, we can make the welding head higher with some device, but it needs to customer pay some extra charge about this.

  • Here if you want to make variable angle welding, here we can add to install the variable angle welding device to the machine, if you need, we can add this device, it needs to pay little extra cost if you want to weld variable angle.


四头普通焊机

Technical Parameter

Model number HJ02-4500.4/4A
Power supply 380V/220V 50Hz
Input power 4.5 kw
Air Consumption 200L/min
Operation air pressure 0.4 ~ 0.6 Mpa
Welding height 20~110mm
Welding length 400~4300mm
Max. width of profile welded ≤120mm
Max. cut dimension of profile welded 330mm
Contour dimension(L×W×H) 5500×1000×1700mm
Machine weight(about) 1600kg
Model number HJ02-4500.4/4A

产品详情

1.Product Description

1).It is a special machine for welding PVC/UPVC/Plastic/Vinyl doors and windows.

2).It can weld and the combination, programming control and pneumatic driving system are used to achieve the high reliability, easy operation and large processing range, The 4 heads can work individually, simultaneously or combinative.This machine suitable for the large production scale.


公司简介

*20years factory production experience*3 years machine warranty

*156 exported country experience

*20000 square meters Glass machine&upvc windows machine factory


*Shandong Eworld Machine Co., Ltd.

Shandong Eworld Machine Co., Ltd. is one of the famous and big manufacturers of glass equipment, windows equipment, CNC equipment.
Since its inception in 2002, and after many years of development and growth, the company is now playing a leading role in glass machinery and windows door machine inChina Eworld group has 2 factories, which are located in Jinan City. Advanced products, exquisite techniques, solid working, and cordial services

埃瓦德工厂大门

工厂证书

About glass deep processing machines, we are professional and have full set certificates.For every glass cutting      machine, we have
serious quality control for every machine and every parts before it leaves our factory.

展会

We went to many exhibitions in China to expand our reputation.

客户合影

Welcome to visit our factory!If you have plan to come to China and see our machines, please contact us at least 15 days in advance
then we can arrange our
schedule and arrange to treat you.
No matter which transport method you choose, we will pick up you.
If you have any questions, please feel free to contact us.
24*7, we always be here !

运输我们的服务

FAQ


Question:Are you manufacture?

Answer:Yes,we are the professional manufacture which have more than 5 workshops.


Question: How about the service ?

Answer:

1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour

2).deliver max. days within 15 days

3).24 hours for after -sale serive

4).more than 12 years experience in this kind machine field

5).fluent english ,communication barrier free


Question:What’s the guarantee ?

Answer:

1).Our guarantee for 18 months.

2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).2 year quality guaranty for the machine (excluding the consumables)

5).We will provide the consumable parts at an agency price

6).24 hours on line service each day, free technical support.


Q: Do you provide equipment operation training?

Answer:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. Allof our engineers have passport.


Question:if our price is higher than another company or factories ?

Answer:please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts,sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous andreliable parts for the machines inside.


Question:How long is the delivery time ?

Answer:For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.


Question: What is the payment ?

Answer:Any payment method you want,such as L/C,T/T,D/P,West-union and so on.
