Vertical Insulating Glass Machine for Washing And Drying

Horizontal Insulating Glass Production Line,This production line including glass washing machine,hot press machine,glass assemble table,glass tilting table

Quantity:
  • HLB1600
  • Eworld

Model NO.:

Horizontal Insulating Glass Production Line

Price


Certification:

CE

Type:


Export Markets:

North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Western Europe

Additional Info.

Trademark:

EWORLD

Packing:

Packed in Wooden Case, Seaworthy Package

HS Code:

8464201000

Production Capacity:

10 Sets/ Month


BX1600 Horizontal
Insulating glass machine



1.BX1600 glass washing and dry machine



1).Main Funtion Intrduction:

1. glass washing machine is a special multifunctional equipment for flat glass cleaning.have good dry effect of cleaning.

2. dry section adopt sponge stick to absorb water

3. washing section and water systerm adopt stainless steel and corrosion-resistant materials

4. recirculating rinse to save water

2).Main Technical Date:

1. total power:8.43KW

2. voltage:

3. working speed:1.2-5m/min

4. min glass dimension:400mm*400mm

5. max glass dimension:1600mm*2500mm

6. max insulating glass thickness:12mm

7. dimension:4000mm*2000mm*1200mm

Note:the machine has following dimension:

BX1200,BX1500,BX1600,BX1800,BX2500

2.BX1600 hot roller press machine

1).Main Funtion Intrduction:

• Adopt halogen heating pipe , high heating efficiency, longer life.
• Adopting the stepless speed regulation mechanism can relize stepless speed regulation and smoothly drive.
• Adopting precision measurement systems can make the upper-lower rubber roller get the exact size needed.
• The incubator produced by the resistant high temperature material is to prevent heat loss.
• Four pairs of two different hardness rubber rollers can ensure to make the whole glass  uniform pressure, and make the size of thickness accurate.
•The main components imported ensure stable operation of the equipment, reliable performance..
•The digital display temperature control equipment operate more handy.
• The shelf body is made of  the high-quality carbon steel material, which is strong light ,the surface sprayed is anti-rust.

2).Main Technical Date:

Input power: 220V

Frequency: 60HZ

Main axis power: 0.37 KW

Heating stove power: 30KW

Processing glass width: 1600mm

Working glass thickness: < 40mm

Glass conveying speed:0 6m/min

Dimension: 3800*1800*1200mm

Total weight: about 1000KG

Note:the machine has following dimension:

BX1200, BX1600, BX1800

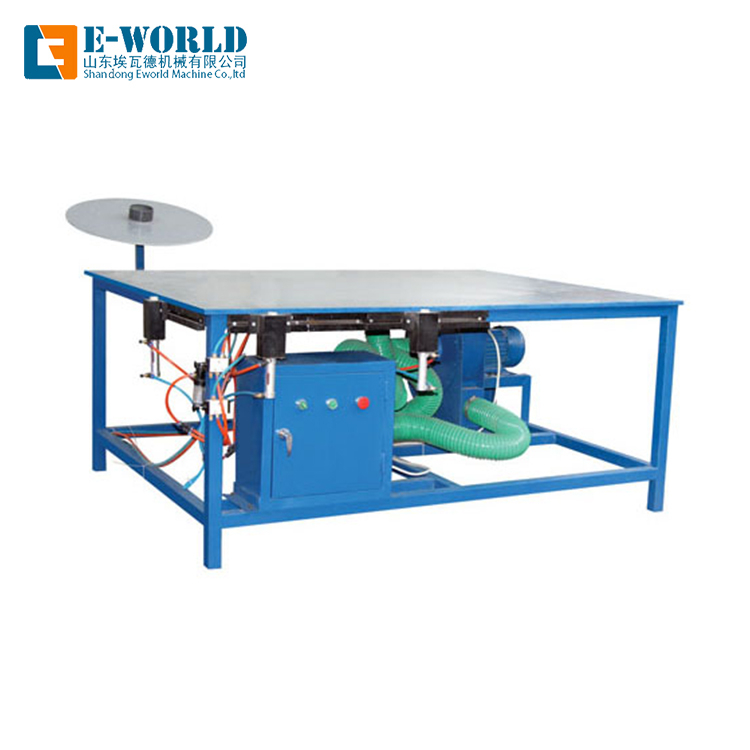

3.Glass assemble table

1).Main Funtion Intrduction:

1.This machine is special  designed for installing rubber bar and assembling for saw glass of insulating glass.

2.the machine adopts PLC, accomplish the action circulation of all index units to make glass complete 90-degree angle distributed gynation,locate and lay rubber bar automatically.the table locates through two sides tomake assembly easily.

3.the machine has special-designed hanging-thick table to make glass move smoothly its the ideal equipment for producing complex rubber bar insulating glass.

2).Main Technical Date:

Dimendion: 1650*1650*650mm

Power supply: 220V

Max angel: 80 degree

Air pressure: 6KG

Weight 300KG

4. Tilt talbe

it is designed for delivery the finished insulating glass easily

Technical date:

power supply:220v 60hz 3-phase 4-wire

tilt degree:0-80degree

hight:750mm

table size:1200mm*2000mm(as your request)

weight:310KG
