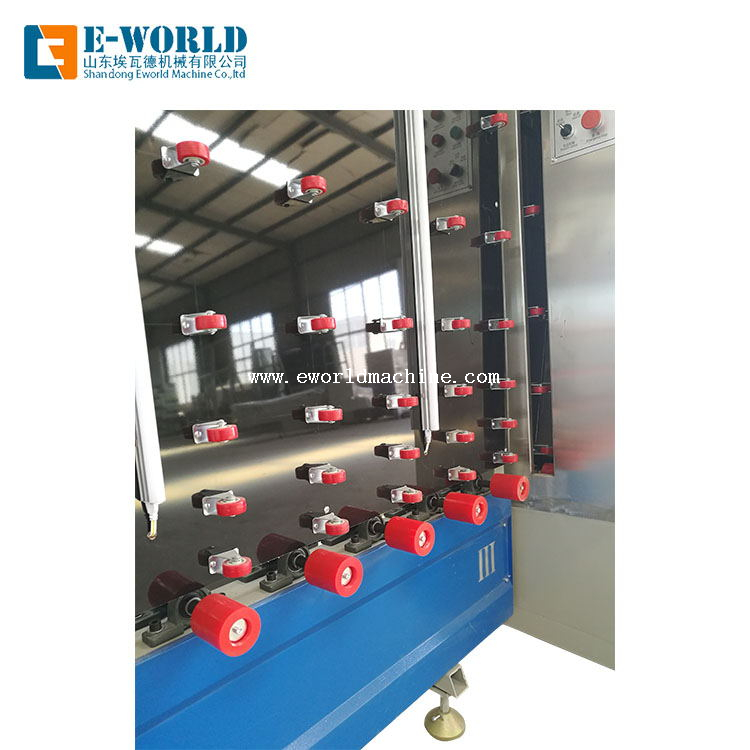

Vertical glass washing and drying machine

Availability:
Quantity:
  • E-LD1600

  • Eworld

  • 8427900000

1600

Overview


Quick Details

Applicable Industries: Manufacturing Plant

After Warranty Service: Video technical support, Online support, Field maintenance and repair service

Local Service Location: Canada, Turkey, United States

Showroom Location: Egypt, Turkey

Condition: New, New

Machine Type: Glass Washing and Drying Machine

Production Capacity: 10sets/month

Place of Origin: Shandong, China, jinan,China(mainland)

Brand Name: Eworld, Eworld

Voltage: 380v 220v

Power: 17kw

Dimension(L*W*H): 3500*700*2200mm

Weight: 1300kg

Certification: ce

Warranty: 1 Year

After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Key Selling Points: Easy to Operate

Glass Thickness: 3-19mm

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Marketing Type: Ordinary Product

Warranty of core components: 1 Year

Core Components: Motor, Bearing, Gear, Pump, Engine

Name: Automatic vertical glass washing machine

Usage: Glass washer with ease

Automatic Grade: Automatic

Color: Customized

Certificate: CE standard

After-sales Service: Full set services

Driven Type: Electric


Supply Ability

Supply Ability: 30 Set/Sets per Month


Packaging & Delivery

Packaging Details: wooden seaworthy case

Port: China Main Port

Picture Example:

Lead Time:

Quantity(Sets) 1-2 >2
Est. Time(days) To be negotiated 30


Product Description


1.Brief Introduction

This is a top quality and sturable glass washing machine,which has advanced technology,high efficiency,and space and labor saver.


2.Features

· It is painted by an electrostatic paint for protection against a rust and scratchs.

· Conic moving gears are made from a special steel alloy.

· Nuts corrosion-proof, apertures for nuts aluminium.

· A working direction of action with left on the right party.

· Brushes from above and from below have adjustment for approach.

· The electro system corresponds to safety rules.

· Heating up plates and water tank from stainless steel.

· Special brushes for reflecting glasses.

· Adjustment of speed of a running tape.

· Covers stainless steel windows.

· LOW-E option

· Power: 380V 50HZ 3 phase or 3 Phase,220v ,60hz

· CE CERTIFICATE for European Union


3.Parameters

Working size :2000*3500mm

Washing thickness:3-12 mm

Brusher: 6 pcs

Hot knife: 1 pair

Sponge roller: 1 pair

Total power: 17 kw

Feeding section:2200*700*2200mm(Length*Width*Height)

Washing and Drying section:2000*1200*2600mm(L*W*H)

Outlet section:2500*700*2200mm(L*W*H)

Can wash LOW-E Glass/Multi-coated glass


1600详情介绍

公司

*20years factory production experience*3 years machine warranty

*156 exported country experience

*20000 square meters Glass machine&upvc windows machine factory

*Shandong Eworld Machine Co., Ltd.


Shandong Eworld Machine Co., Ltd. is one of the famous and big manufacturers of glass equipment, windows equipment, CNC equipment.
Since its inception in 2002, and after many years of development and growth, the company is now playing a leading role in glass machinery and windows door machine inChina Eworld group has 2 factories, which are located in Jinan City. Advanced products, exquisite techniques, solid working, and cordial services


公司

工厂

证书

About glass deep processing machines, we are professional and have full set certificates.For every glass cutting machine, we have
serious quality control for every machine and every parts before it leaves our factory.

展会

We went to many exhibitions in China to expand our reputation.

合照

Welcome to visit our factory!If you have plan to come to China and see our machines, please contact us at least 15 days in advance
then we can arrange our
schedule and arrange to treat you.
No matter which transport method you choose, we will pick up you.
If you have any questions, please feel free to contact us.
24*7, we always be here !

运输

售后


FAQ

Question:Are you manufacture?

Answer:Yes,we are the professional manufacture which have more than 5 workshops.


Question: How about the service ?

Answer:

1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour

2).deliver max. days within 15 days

3).24 hours for after -sale serive

4).more than 12 years experience in this kind machine field

5).fluent english ,communication barrier free


Question:What’s the guarantee ?

Answer:

1).Our guarantee for 18 months.

2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).2 year quality guaranty for the machine (excluding the consumables)

5).We will provide the consumable parts at an agency price

6).24 hours on line service each day, free technical support.


Q: Do you provide equipment operation training?

Answer:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. Allof our engineers have passport.


Question:if our price is higher than another company or factories ?

Answer:please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts,sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous andreliable parts for the machines inside.


Question:How long is the delivery time ?

Answer:For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.


Question: What is the payment ?

Answer:Any payment method you want,such as L/C,T/T,D/P,West-union and so on.



Vertical Glass Washing Cleaning Machine For Float Glass


Eworld Machine produces high-quality machines, also pay attention to the package. The machines will be packed with steel pallet and standard export wooden case, to make sure customer will receive the machines they ordered Intact.

Vertical Glass Washing Cleaning Machine For Float Glass


1.Our Goal

Eworld Machine provides full set services and high-quality but low-price products. We are always looking for long-term cooperation, not a one-time deal.


2.Pre-sale

Eworld provides 24 hours high-quality service. When clients contact Eworld and ask for products, E-World answers at once, except our clerk's sleep, which condition we answer within 10hours. Eworld understands how important it is for the customers to choose a suitable machine, we are ready to come up with the best solution for customers.


3.On-sale

For all your requests, we will supply the best solution to you as soon as possible. If you have any inquiries or problems, please contact us with E-mail, skype, Alibaba, WhatsApp, phone, etc.


Eworld welcome customers to visit the factory, we will pick you up from the airport or train station. Eworld location is convenient to welcome clients because of next to the train station. If you hesitate to buy the machine(I can understand, after all, the machine is not cheap), you can visit E-World’s previous customers in the USA, southeast Asia, etc. You will find the machine is worthy of this price.


4.After-sale service

When customers buy the glass washing machine, E-World promises that the machine will be delivered in 20-25 days after deposit.


E-World arranges commodity packages suitable for the shipment of sea.


E-World provides English instruction about manual guides and video technical support. Any problems pls let us know, and we will give you detailed support and advice.


E-World promises worry-free repair of one whole year after installation, the original fault parts damaged, be free of any charges.


When a serious breakdown and big fault happens, E-World has engineered and they can fly there to solve it.


If you are a glass fabricator, looking for High-quality Vertical automatic glass washing machine for business expansion,


If you have the interest to set up a glass production line as your new business,


Or you have any questions about glass equipment,


Any details information or help you want, please contact with me.
