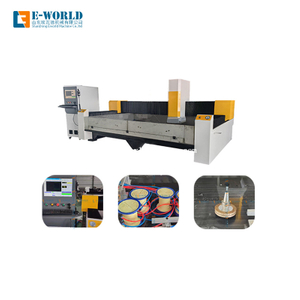

CNC Glass Engraving Machine

This is for Glass engraving,working size 600*900mm

Quantity:
  • W1-6090
  • Eworld

Equipment Features:



1.The overall steel structure welding with tempering aging treatment is strongly undeformed.

 Dragon mobile,



 fixed working table can arbitrarily processing materials.



2.Adopt Taiwan Linear guide rail. The bearing of the lead guide rail is face to face,

ensure a long-term service life and high accuracy



3.Double-nut automatic disappear gap ball-screw.



4 With constant power motor of spindle, powerful cutting capacity and high efficiency.



5.Break point and break knife continue engraving function, can engrave at any place as you need.



6.Intelligent protection work table: Prevention of table damage caused by misoperation or software

 errors.



 Intelligent processing of cross-border protection: preventing machinery from colliding

due to that design layout exceeds process range.



7. Advanced Ncstudio control system, control automatically control and finish for 3D multiple levels

 processing.



Carrying out rapid and smooth 3D processing, carving or cutting. Offline operation can be realized.



8. Good software compatibility, the CAD/CAM design system like type 3/Artcam/Castmate are

compatible.



9. High power frequency changing water cooled spindle, can process hard materials efficiently,

marble ,granite ,glass,stone,etc



Application area:



For stone industry,stone processing industry,art relief,the advertising industry, decoration industry,



ceramic industry marble granite,jade,bluestone,Blackstone and other kinds of stone,and ceramic,

glass,plexiglass,PVC boards,Aluminum panels,bamboo and other materials.







Model

W1-6090

X, Y axis travel

600mm*900mm

Max. Z axis travel

260mm

Max. Feeding height

260mm

Table Size

980mm*1300mm

Power of spindle

2.2kw water cooling

Spindle speed

0-24000rpm

Working mode

Stepper(Rack-and pinion rotating)

Max working speed

25m/min

Table Structure

seamless cast steel

Processing precision

±0.05mm

Repositioning Precision

±0.05mm

Control system

DSP or Ncstudio

Transmission System

XY Axis advanced rack and pinion,Z Axis ball screw

Drive motor

Stepper(Optional:Servo)

XYZ guide rail

linear square guide Rail

Interface

USB

Working holding

By fixture

Working Voltage

AC380/50Hz

Command language

 G code*.u00*.mmg*plt

Software campatibility

 TYP3/Artcam/Castmate/UcancamV9

Surroundings for software

Windows 7/xp
