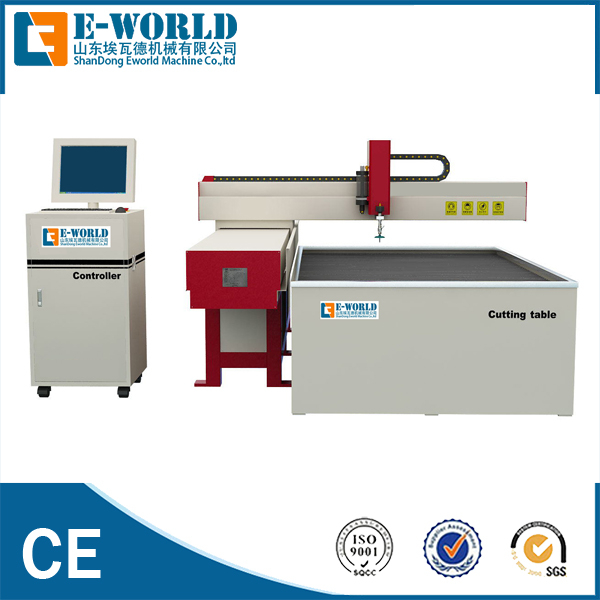

CNC Water Jet Cutting Machine

Water jet cutting machine for metal,glass,marble,stone cutting

Quantity:
  • HD1530
  • Eworld

    Intensifier Pump

1.Pumps are imported from American Accustream company with advanced & reasonable structure and high stability.

2. Integrated heat exchanger, high heat exchange ratio and good effect, control the temperature of the hydraulic oil within the limit

3. Two-stage water filter(5um,1um,0.45um)minimizes the damage of impurities to high pressure seals, nozzles and other parts.

4.Two step-up water supply to make sure the pressure, automatic alarm and protection function when water is inadequate avoid the damage

5.Multiple filter for outlet oil and return oil, pollution alarm, oil cooling and oil temperature alarming ensure the continuous operation

6.Flexible connection between the main motor and pump eliminates eccentricity and absorbs vibration to ensure its long-term reliable operation.

7. Large capacity accumulator, assuring the system pressure much more stable, cutting efficiency much higher

 Model

HD1530

Intensifier

USA imported

Method of Direction Regulation

Electronic Direction Regulation

Max cutting pressure

420MPA

Continuous working pressure

370-390Mpa

Max oil pressure

21Mpa

Max  water discharge

3.8L/min

Max oil discharge

106L/min

Power Source

380V/50HZ

Max diameter of orifice

0.35mm

accumulator capacity

1.2L

The oil pump type

Automatic variable hydraulic pump

                                                                                            Cutting Table

 1. Separate body between cutting table and load-bearing platform prevents interfering cutting accuracy from long-term stress variation to

load-bearing platform.

 2.X beam of cutting table applies the one-off extrusion forming aluminum alloy, light weight, strong steel, not deformed, is the most advanced technology in waterjet cutting machine.

3. Cancelling dustproof cloth on X, Y, Z axis and hiding Y axis towline greatly improve the machine life and save the maintenance cost.

4. Motor and ball screw are directly connected by flexible coupling. It can absorb vibration energy reversible and with higher drive accuracy compared with other torsional rigid coupling.

5. Using high-quality international brand ball screw, linear guide transmission structure to ensure the moving speed and accuracy of the cutting head.

6. The cutting head is with casting structure and concrete structure. The metal parts have been specially processed to eliminate traces of deformation and to maintain long-term mechanical precision.

 Item

 Character

Machine type

Cantilever style

Process dimension

 1500mm*3000mm

Way of drive

 Servo drive( drives and motors are Yaskawa brand from Japan

Ball screw and linear guide

 ABBA brand from Taiwan

Z-axis travel journey

150mm

Controlling accuracy

0.01mm

Cutting accuracy

0.1mm

Re-position accuracy

0.02mm

Max traveling speed

6000mm/min

                                                                                          CNC Controller

1. Industrial control computer: high reliability, convenient man-machine dialogue, real-time control of the cutting process

2. CNC control, apply 19 inch LCD. facilitate operators to observe and reduce visual fatigue.

3.Appropriate height of operating desk, reasonable display angle, and 180-degree horizontal rotation for easy operation and viewing

4. Replace the relay with PLC, with a computer communications, flexible control

5. Professional waterjet cutting software, easy to operate , easy to learn, and practical.

6. Adapt industry wireless handle ,make the tool setting easy ,exact.

7. Support DXF file ,can use AUTOCAD to produce DXF file

8. use IPC and the professional software based on windows XP
