Multi-head Combination Drilling Machine

Special for drilling of Aluminum window,curtain wall profile,suitable for long profile processing and mass production. Suitable for the profile less than 250*250mm,Max processing length 5000mm, pneumatic-hydraulic damp feeding system.

Quantity:
  • LJZX-04
  • Eworld

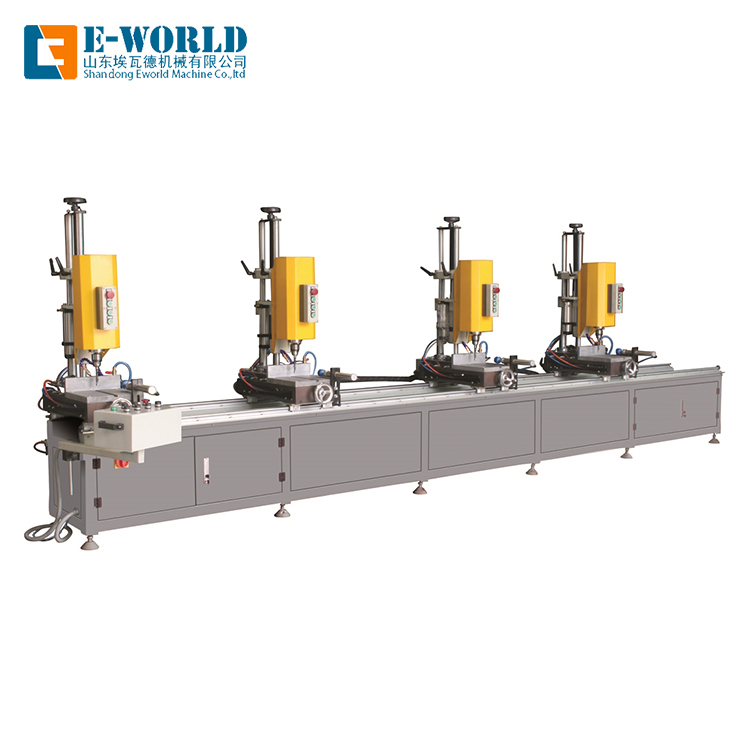

LJZX-04 Four-head Combination Drilling Machine:



Special for drilling of Aluminum window,curtain wall profile,suitable for long profile processing and mass production. Suitable for the profile less than 250*250mm,Max processing length 5000mm, pneumatic-hydraulic damp feeding system.

Technical parameter:

model

LJZX-04

Main motor power

4X0.75KW

Working voltage

380V 50HZ

Overall dimension(L*W*H)

5500*1100*1800mm

weight

880KG

Operation air pressure

0.5-0.8MPa

Max/Min distance between each group holes

500-300mm

Max processing profile section size

250*250mm

Max drilling hole diameter

13

Drilling head feeding travel

125mm

Worktable size(L*W)

300*220mm

Tolerance of drilling position

≤0.3mm
