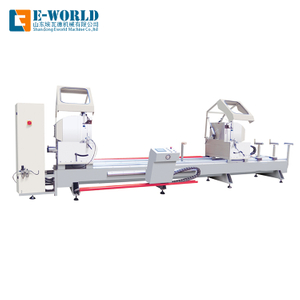

Aluminum Window Machine Double Head Cutting Machine

Double head cutting saw is used for aluminum profile cutting.
2. The linear guiding pair ensured steady processing accuracy.
3. Saw blade rotate smoothly due to high accuracy main spindle.

Quantity:
  • LJB2-450*3700
  • Eworld

LJB2-450*3700 Double Miter Saw System:

1.Features

Used for aluminum profile cutting.

2. The linear guiding pair ensured steady processing accuracy.

3. Saw blade rotate smoothly due to high accuracy main spindle.

4. Uniform speed feeding and smooth motion due to airdraulic damping cylinder.

5. It has feature of easy operation, reliable performance, advanced technique and convenient maintenance ect.

6. Right head moving saw blade give accurate processing and high efficiency.

7. Imported carbide saw blade give accurate processing and high efficiency.

8. Two head can work together or single, when together work , one tine. can cut off the required length and angle

Technical parameter:

Model SSJ 06-3700

Power Supply 3 Phase

Operation Air Pressure 4~6 kgs

Cutting Motor Power 2 x 2HP

Motor Rotary Speed 2800 r/min

Air Consumption 200 L/min

Blade Specification Φ450×4.0×3.5×30.0×120

Cutting Length max3700mm / Min400mm

Cutting Width max 120mm

Cutting Height max 200mm

Cutting Angle -45° - 90° - 45°

Cutting Angle Allowance ± 5'

Cutting Speed 0-3m/min

Cutting Profile Surface Planeness ≤ 0.1mm

Cutting Profile Surface Rougness Ra 12.5µm

Contour Dimension 4500mm x 1100mm x 1400mm

Net/Gross Weight 1500 kgs / 1900 kgs
