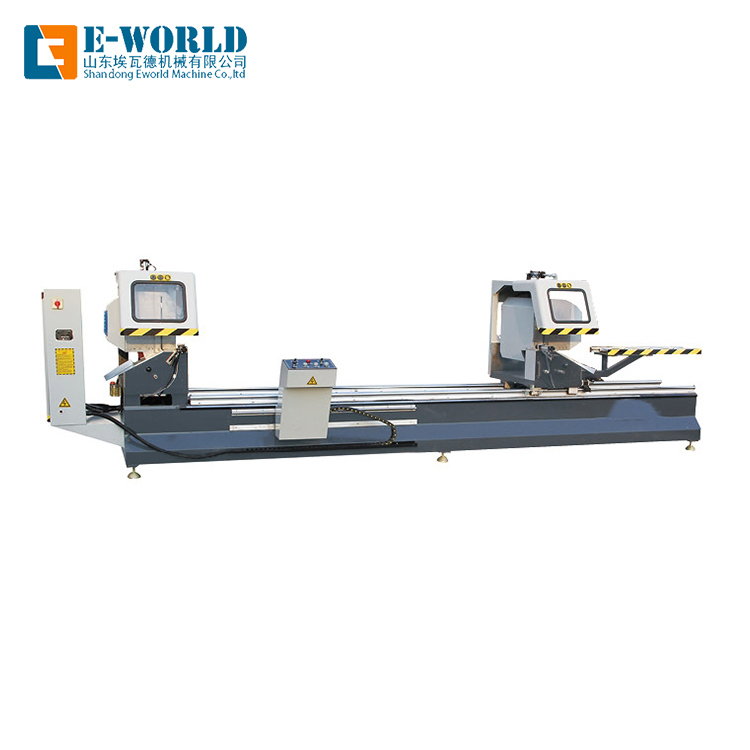

Aluminum Profile Cutting Machine

Double-head Saw machine is used for cutting aluminum profiles. The main spindle is manufactured by the specialized manufacturer. And the imported linear bearing motional pair is used to move the head horizontally. The blade feeding is hydraulic damping drive with large processing range. And the maximum cutting length is 3700mm. The cutting angle is 45 angle and 90 angles

Quantity:
  • LJZ2-450*3700A
  • Eworld

LJZ2-450*3700A Double head cutting saw:



1.Introduction

Double-head Saw machine is used for cutting aluminum profiles. The main spindle is manufactured by the specialized manufacturer. And the imported linear bearing motional pair is used to move the head horizontally. The blade feeding is hydraulic damping drive with large processing range. And the maximum cutting length is 3700mm. The cutting angle is 45 angle and 90 angles



2.Feature

1.Imported carbide saw blade gives accurate processing and high endurance.



2.Imported linear guide rail and linear bearing motion pair ensures steady processing accuracy.



3.Saw blade rotates smoothly due to high accuracy main shaft.



4.Uniform speed feeding and smooth motion due to airdraulic damping.



5.Auto-opening guard shield ensures saft operation.



6.Auto-induction middle profile supporter and following convenient mak the loading and clamping convenient.



7.Adopts imported linear guide pair,with high accuracy and long service life. 45°and90°cutting is available

3.Technical parameter



MODEL

LJZ2-450*3700A

Input voltage

230/460V /3/60Hz

Input power

3Kw

Air pressure

0.5~0.8MPa/ 120psi

Air consumption

60L/min

Motor rotation speed

2800r/min

Cutting length

400~3700mm

Cutting length tolerance

+ 0.005

Cutting angles

90, 45

Cutting width

10~120mm

Cutting height

10~200mm

Saw feeding speed

0~3m

Saw blade standard

450mmx4.4x30xZ120

Overall dimensions

4.5x1.2x1.4m
