| Quantity: | |
|---|---|
Quick Details
Applicable Industries: Manufacturing Plant
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
Showroom Location: None
Condition: New
Machine Type: Insulating Glass Production Line
Production Capacity: 10sets
Place of Origin: Shandong, China
Brand Name: Eworld Machine
Voltage: 220v Or 380v or As request
Power: 1.67kw
Dimension(L*W*H): 3500mm*500mm*874mm
Weight: 150Kg
Certification: CE&ISO
Warranty: 1 Year
After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points: Sustainable
Glass Thickness: 3-25mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Pressure vessel, Motor, Bearing, Gear, PLC, Pump, Engine, Gearbox
Name: Insulating Glass Production Line
Application: Making insulating glass
Personalize: Acceptable
Brand Name: Eworld Machine
Seaport: Qingdao Port
Max glass size: 2500*3500mm
Min glass size: 350*500mm
Desiccant: 0.4~0.8mm
Alu spacer width: 1-25mm
Alu spacer thickness: 6.5
Supply Ability
Supply Ability: 10 Set/Sets per Month
Packaging & Delivery
Packaging Details: Seaworthy Wooden Package
Port: Qingdao Port, China Main Port
Picture Example:
Lead Time:
| Quantity(Sets) | 1-1 | >1 |
| Est. Time(days) | 15 | To be negotiated |
Eworld Machine
1. Usage

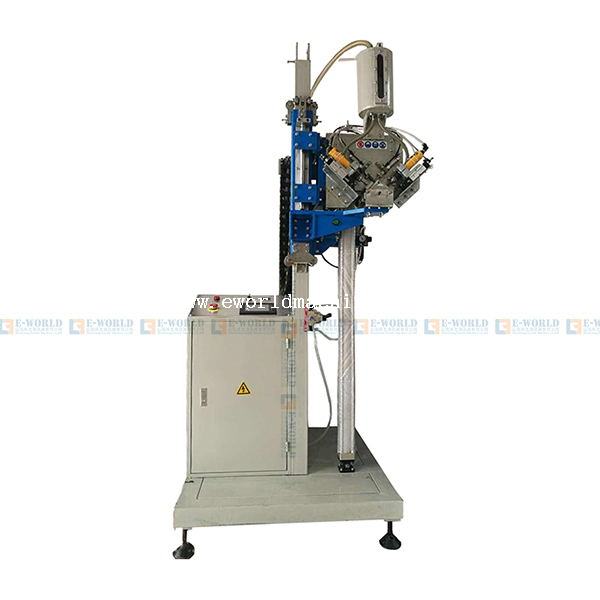

An automatic Desiccant Filler is used to inputting the desiccant into the aluminium spacer. The whole work procedure is controlled by PLC. The pouring is achieved under the closed condition in order to avoid humidity and dust. It features a simple structure and easy operation. Put the aluminium spacer into the bottler for several seconds. It is excellent equipment in producing Double Glazing Glass with aluminium spacer.
2. Main specification
| Desiccant | mm | 0.4~0.8 |
| Alu spacer thickness | mm | 6.5 |
| Alu spacer width | mm | < 25 |
Spacer dimensions | Max (mm) | 1800×2500 |
| Min (mm) | 200×200 | |
Power | V | 380/220 |
| Hz | 50 | |
| Ai source pressure | Mpa | 0.6~0.7 |
Overall dimension | Length(mm) | 1000 |
| Width(mm) | 1000 | |
| Height(mm) | 3100 |
3. Main structure
This machine is mainly made up of a frame, machine head, desiccant bottle (including automatic lifting device), automatically controlled system and pneumatic system. The machine frame contains two parts, move the frame to relative height if the alu spacer is big. The frame moving can be achieved by adjusting the lifting cylinder, which is easy to operate and stable.
*20years factory production experience*3 years machine warranty
*156 exported country experience
*20000 square meters Glass machine&upvc windows machine factory
*Shandong Eworld Machine Co., Ltd.
Shandong Eworld Machine Co., Ltd. is one of the famous and big manufacturers of glass equipment, windows equipment, CNC equipment.
Since its inception in 2002, and after many years of development and growth, the company is now playing a leading role in glass machinery and windows door machine inChina Eworld group has 2 factories, which are located in Jinan City. Advanced products, exquisite techniques, solid working, and cordial services
About glass deep processing machines, we are professional and have full set certificates.For every glass cutting machine, we have
serious quality control for every machine and every parts before it leaves our factory.
We went to many exhibitions in China to expand our reputation.
Welcome to visit our factory!If you have plan to come to China and see our machines, please contact us at least 15 days in advance
then we can arrange our
schedule and arrange to treat you.
No matter which transport method you choose, we will pick up you.
If you have any questions, please feel free to contact us.
24*7, we always be here !
FAQ
Question:Are you manufacture?
Answer:Yes,we are the professional manufacture which have more than 5 workshops.
Question: How about the service ?
Answer:
1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour
2).deliver max. days within 15 days
3).24 hours for after -sale serive
4).more than 12 years experience in this kind machine field
5).fluent english ,communication barrier free
Question:What’s the guarantee ?
Answer:
1).Our guarantee for 18 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).2 year quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.
Q: Do you provide equipment operation training?
Answer:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. Allof our engineers have passport.
Question:if our price is higher than another company or factories ?
Answer:please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts,sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous andreliable parts for the machines inside.
Question:How long is the delivery time ?
Answer:For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
Question: What is the payment ?
Answer:Any payment method you want,such as L/C,T/T,D/P,West-union and so on.
