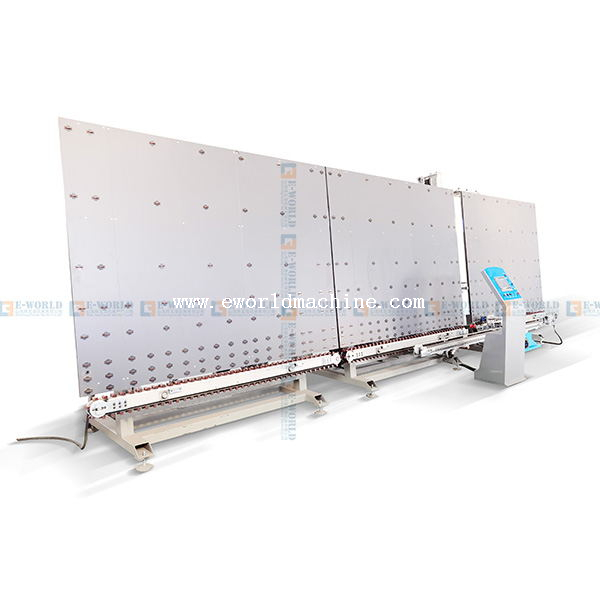

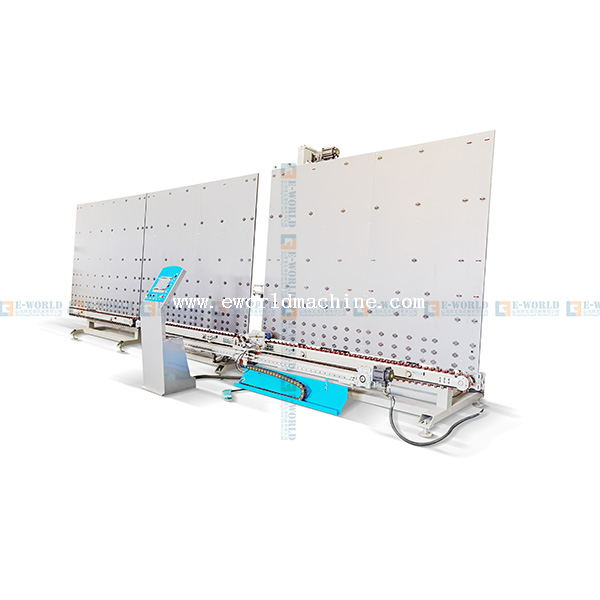

Automatic Insulating glass sealing extruder machine

We are a leading Manufacturer, Supplier and Exporter of Insulating Glass Sealing Extruder Machine. The machine is manufactured making use of high grade raw materials. We make our glass-sealing machine available in different specifications at request of customers. Its dimensional accuracy, precise design and easy operability make it suitable for different purposes in various industries. This excellence is offered at pocket friendly rates.

Quantity:
  • SMT2000
  • Eworld

We are a leading Manufacturer, Supplier and Exporter of Insulating Glass Sealing Machine. The machine is manufactured making use of high grade raw materials. We make our glass-sealing machine available in different specifications at request of customers. Its dimensional accuracy, precise design and easy operability make it suitable for different purposes in various industries. This excellence is offered at pocket friendly rates.



Specifications :

  • CNC control system

  • Fast and easy change extruding nozzle.

  • Automatically test all relative parameters

  • Got CE


Brief introduction :

  • High automation, suitable for glass deep processing enterprise to use.

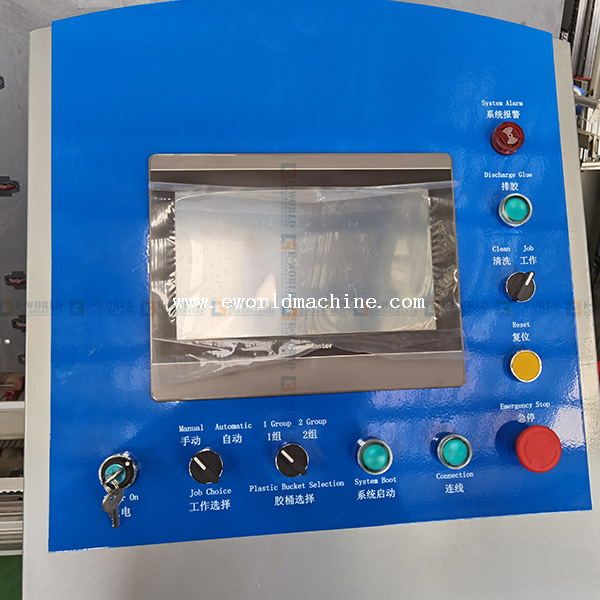

  • Whole machine adopt man-machine interface, the operation is more convenient and intuitionist with the simplified thinking design interface.

  • The glass edge and corner is full without air bubbles, smooth surface.

  • Using two sets of independent sealant supply system (including the mixing device); two kinds of sealants switch in one-key operation easily.

  • The third section can restore glass to improve the efficiency effectively. Support three-layer glass sealant.

  • Servo control system adopts world famous brand (Japan Anchuan), the performance is stable.

  • Synchronous belt transmission to make the glass being transferred smoothly with accurate positioning


Features :

  • Applying CNC control system with 9-axis servo motors movement to reach fast and continuous sealing for insulating glass.

  • Servo motor drive hydraulic pumps to control accurate calculation and rate of flow to get precise ratio.

  • Automatically and accurately check sealing depth and spacer width, control sealing quantity

  • Applying rinse system with basic material, 0.16 liter mixer making little quantity of waste.

  • Automatic corner trimming function.

  • Perfect chain driving style ensure glass convey stable and clean.

  • Available for polysulfide/silicon/polyurethane. one/two components at option

  • Fast and easy change extruding nozzle.

  • Free option for straight line and irregular shape

  • Automatically test all relative parameters



Quick Details

ConditionNewMachine Type:Insulating Glass Production LineProduction Capacity:0-45m/min
Voltage380V 50HZPower(W):18KWDimension(L*W*H):10800*4000*3300mm
Weight3000KgCertification:CEWarranty:12months
After-sales Service ProvidedEngineers available to service machinery overseasmin glass size:350*500mmmax glass size:2000*3000mm
Sealing depth2-10 mmsealing width:6-20mmsealing speed straight line:5-40m/min
Conveying weight120Kg/minsulaing glass thickness:12-48mmmax glass thickness:15mm
Air pressure0.5-0.7MPasqueeze pressure:32 MPa
