LMZ-100*3500
Eworld

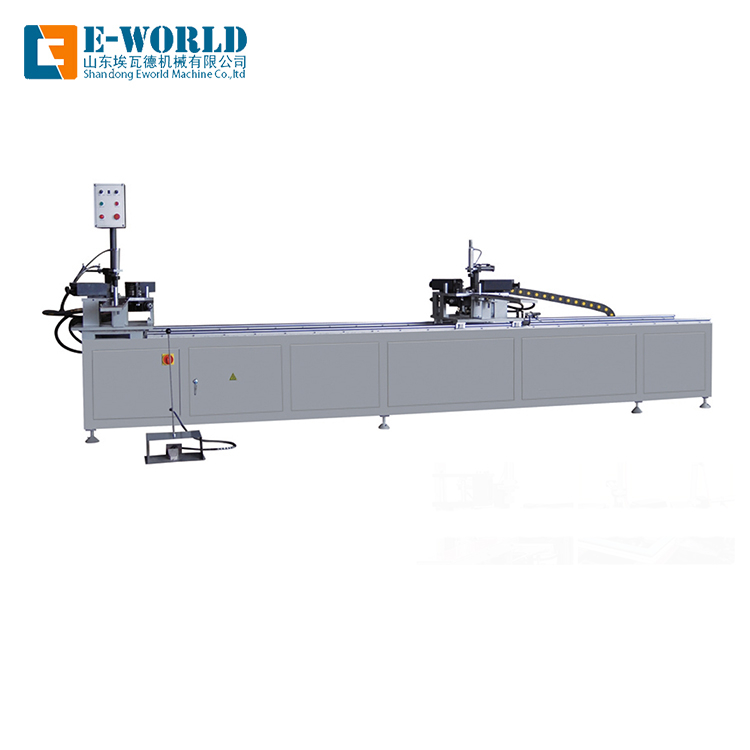

LMZ-100*3500 Double-head Corner Combining Machine
1).The machine can be used to assemble aluminum doors and windows and can complete punching and riveting connection of two corners in one operation with high production efficiency.
2).The clamping and positioning device can be adjusted vertically and is applicable to profiles of various sizes and sections with excellent universality, High-precision linear bearing motional pairs are adopted with high precision of corner combining the hydraulic system is adopted with big punching and reveting force and high strength of corner connection.
3).We also have single head combining machine, if your production is not large, in begining you can use the single head combining machine is ok.
4).Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.
| |
| |
Power supply | 380V 50Hz |
Rated oil pressure | 18Mpa |
Operation air pressure | 0.4 ~ 0.6Mpa |
Air consumption | 0.2 L/min |
Oil tank volume | 40 L |
Corner combining cylinder stroke | 0 ~ 50mm |
Max. processing frame size | 3000mm / 1800mm |
Min. processing frame size | 450×450mm |
Profile processing width | ≤100mm |
Machine weight(about) | 600kg |
Quick Details: | |
1.Place of Origin: Shandong, China (Mainland) 2.Model Number: lmz-100*3500 3.After-sales Service Provided: Engineers available to service machinery overseas 4.application: Aluminum door window making 5.usage: aluminum profile corner combining 6.certificate: CE&ISO 7.Button and contact: CHINT 8.Machine colour: any colour or as your required 9.Corner combining cylinder stroke:0~50mm 10.Max. processing frame size: 3000mm / 1800mm 11.Min. processing frame size: 450*450mm 12.Profile processing width: ≤100mm | |
*20years factory production experience*3 years machine warranty
*156 exported country experience
*20000 square meters Glass machine&upvc windows machine factory
*Shandong Eworld Machine Co., Ltd.
Shandong Eworld Machine Co., Ltd. is one of the famous and big manufacturers of glass equipment, windows equipment, CNC equipment.
Since its inception in 2002, and after many years of development and growth, the company is now playing a leading role in glass machinery and windows door machine inChina Eworld group has 2 factories, which are located in Jinan City. Advanced products, exquisite techniques, solid working, and cordial services
About glass deep processing machines, we are professional and have full set certificates.For every glass cutting machine, we have
serious quality control for every machine and every parts before it leaves our factory.
We went to many exhibitions in China to expand our reputation.
Welcome to visit our factory!If you have plan to come to China and see our machines, please contact us at least 15 days in advance
then we can arrange our
schedule and arrange to treat you.
No matter which transport method you choose, we will pick up you.
If you have any questions, please feel free to contact us.
24*7, we always be here !
FAQ
Question:Are you manufacture?
Answer:Yes,we are the professional manufacture which have more than 5 workshops.
Question: How about the service ?
Answer:
1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour
2).deliver max. days within 15 days
3).24 hours for after -sale serive
4).more than 12 years experience in this kind machine field
5).fluent english ,communication barrier free
Question:What’s the guarantee ?
Answer:
1).Our guarantee for 18 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).2 year quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.
Q: Do you provide equipment operation training?
Answer:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. Allof our engineers have passport.
Question:if our price is higher than another company or factories ?
Answer:please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts,sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous andreliable parts for the machines inside.
Question:How long is the delivery time ?
Answer:For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
Question: What is the payment ?
Answer:Any payment method you want,such as L/C,T/T,D/P,West-union and so on.
