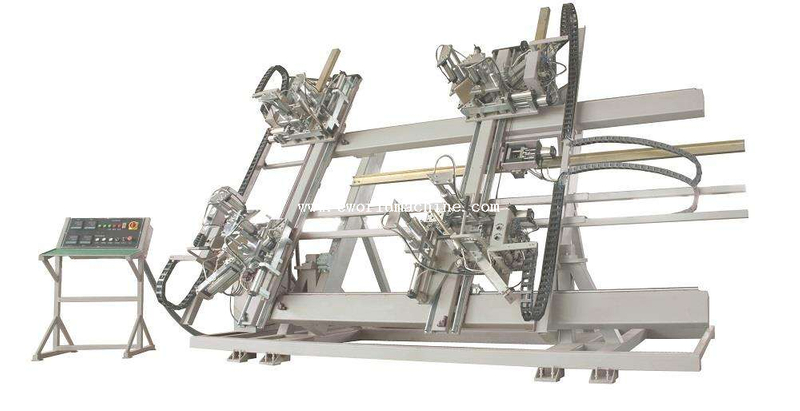

High Precision Automatic Four Corner Welding Machine
High Precision Automatic Four Corner Welding Machine High Precision Automatic Four Corner Welding Machine

loading

High Precision Automatic Four Corner Welding Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • SHP4-CNC-3000

  • E-WORLD

  • 8465990000

Color:
Dimension:
Availability:
Quantity:

Product Description:

  1. One working cycle,one frame fully automatically.

  2. The advanced IPC controlling system guarantee user-friendly operation,high precision, long life service,easy link to other machines or production units.

  3. Auto positioning by word wide famous brand AC servo motor.

  4. Import linear bearing system kept the running stable.

  5. Size tolerance compensation is available to increase welding precision.

  6. Easy profile loading through pre-setting the insertion position.

  7. Profile fixture ordered separately can meet various height profile's processing requirment.

  8. Special profile fixture is easy to change, for high corner strength and later good cleaning.

  9. Special "Know-How”technique keep the high corner strength.

Technical Parameter:


Model SHP4-CNC-3000
Input Power 7KW
Power Supply 380V/220V
Air Pressure 0.4-0.6MPa
Air Consumption 200L/min
Welding Height 25-160mm
Welding Width 130mm
Welding Range 300*300-1800*3000
Overall Size 5000*2000*2860mm
