Four Layers EVA Glass Laminating Machine Glass Processing Machine
Share to:
Our four-layer EVA glass laminating machine is designed for producing laminated glass with EVA film and selected decorative interlayers. Alongside conventional glass-to-glass lamination, it can be used to develop decorative combinations incorporating silk, fabric and metallic braid.

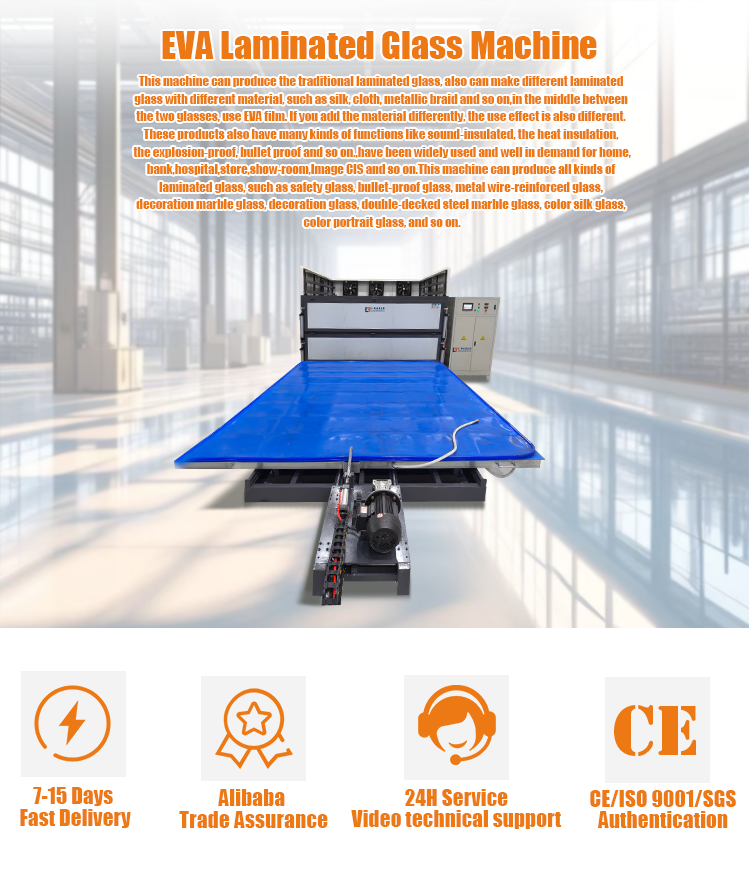

The machine shown on this page features an extended loading arrangement, a blue silicone vacuum bag and a separate control cabinet. We offer several model sizes to accommodate different glass dimensions and workshop requirements.
Send us your maximum glass size, proposed glass construction and production requirements. We can help you compare the available configurations and identify the details needed for an equipment quotation.
This machine can produce the traditional laminated glass, also can make different laminated glass with different material, such as silk, cloth, metallic braid and so on,in the middle between the two glasses, use EVA film. If you add the material differently, the use effect is also different. These products also have many kinds of functions like sound-insulated, the heat insulation, the explosion-proof, bullet proof and so on.,have been widely used and well in demand for home,bank,hospital,store,show-room,Image CIS and so on.This machine can produce all kinds of laminated glass, such as safety glass, bullet-proof glass, metal wire-reinforced glass, decoration marble glass, decoration glass, double-decked steel marble glass, color silk glass, color portrait glass, and so on.
Four-Layer EVA Glass Laminating Machine Features
Our EVA glass laminating machine is intended for glass-to-glass lamination and selected decorative interlayer combinations. The photographs below show the equipment layout, loading frame, vacuum bag and process-setting interface, helping you review the configuration before selecting a model.
Extended Loading Frame for Glass Preparation

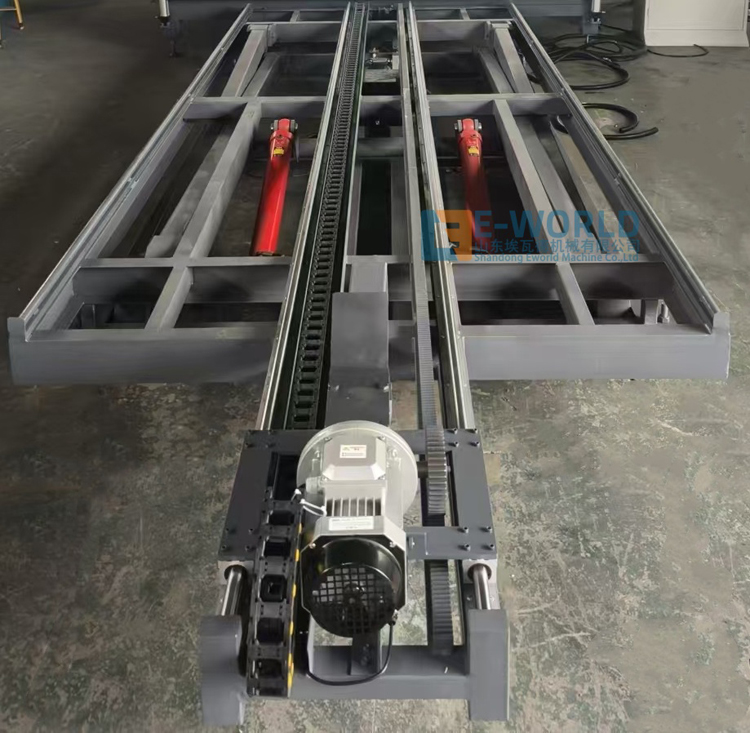

The loading-frame photographs show the guide rails, front-mounted motor and lifting cylinders. This arrangement provides access to the loading area in front of the lamination chamber.
When planning installation, consider the glass dimensions, tray movement and space needed for material handling. Share your available workshop space and preferred loading method with us so we can review the arrangement.
Chamber Access and Vacuum Bag Positioning

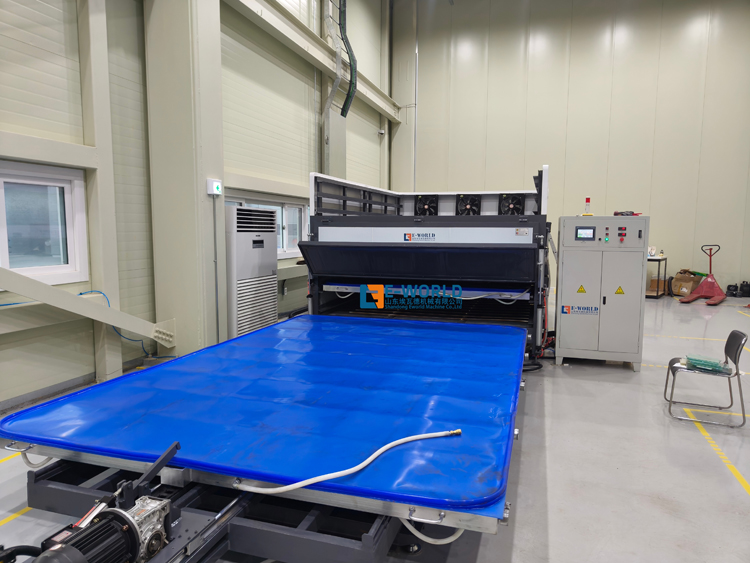

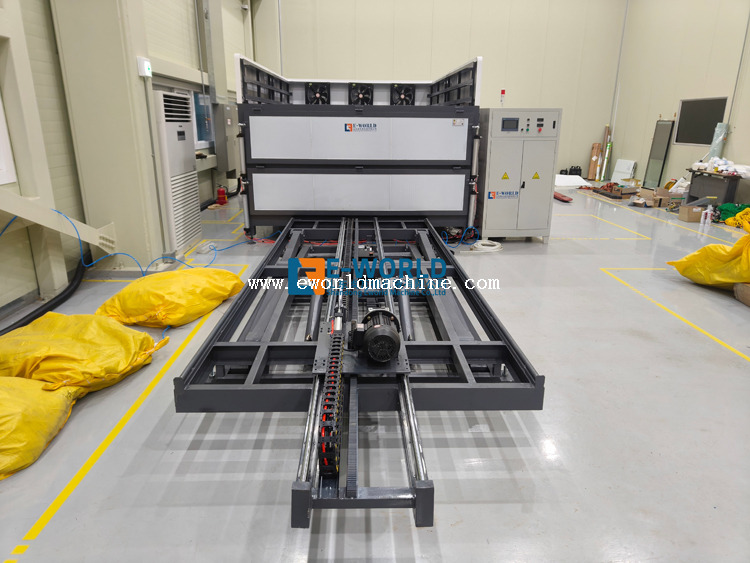

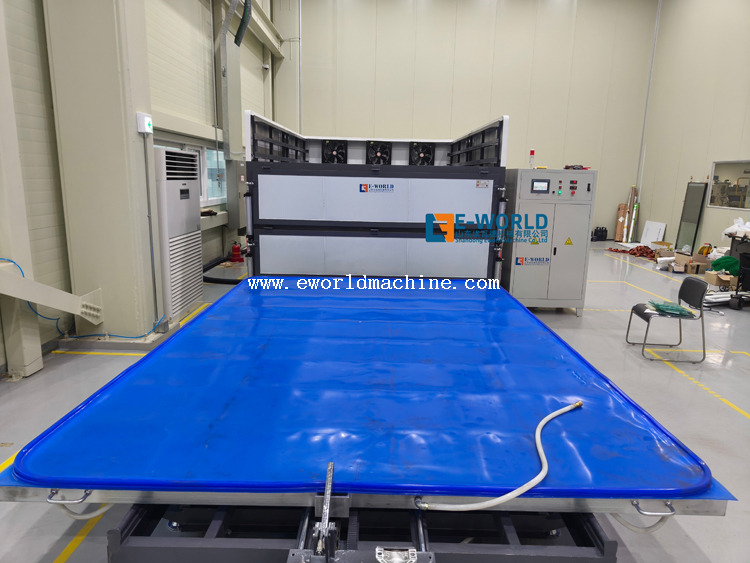

The open-door photograph shows the loading tray extending in front of the furnace. The blue vacuum bag and its hose connection are visible in the front-view photograph.
These details help illustrate the preparation area and vacuum bag positioning. The operating sequence should follow the instructions supplied for the selected machine and glass construction.
Temperature and Holding-Time Settings for EVA Lamination
The illustrated control interface displays temperature and holding-time settings across multiple processing stages. Operators can review these settings when preparing a process for a particular glass and interlayer combination.
The values visible in the photograph are examples on the screen. Processing settings should be confirmed for the EVA film, glass construction and decorative materials being used.
Silicone Vacuum Bag and Sealing Detail

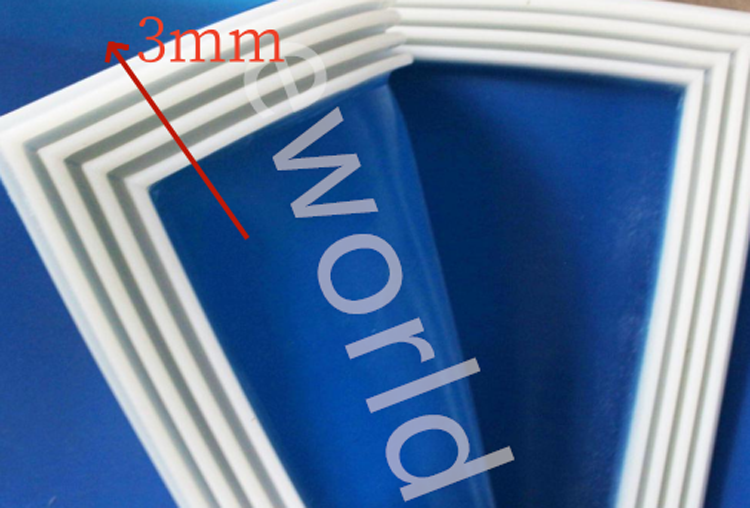

The close-up photograph shows the silicone vacuum bag corner and sealing profile, with a 3 mm thickness annotation.
Check the bag dimensions, sealing condition and connection details against the selected machine configuration. Confirm compatibility before ordering replacement vacuum bags or related consumables.
Compare EVA Glass Laminating Machine Specifications
We list three models below for comparison. Select a machine by reviewing maximum glass size, heating power, total power, vacuum bag quantity, blower quantity and overall equipment dimensions.
Model
Maximum Glass Size (mm)
Heating Power (kW)
Total Power (kW)
Vacuum Bags (Qty.)
Blowers (Qty.)
Machine Dimensions (mm)
W1-2030-4
2000 × 3000
42
53
4
4
7400 × 2350 × 1250
W1-3624-4
3660 × 2440
81
94
4
4
8800 × 2750 × 1250
W1-2540-4
2500 × 4000
81
94
4
6
9400 × 2850 × 1250
Choose a Model for Your Glass Size and Workshop
Start with the largest panel you intend to process. Then review the equipment dimensions, extended loading area and electrical requirements.
For a configuration assessment, send us:
Maximum and minimum glass dimensions.
Glass layer arrangement and total thickness.
EVA film and decorative interlayer details.
Required production output.
Available floor space and local power supply.
Model confirmation: Please confirm the relationship between the displayed W1-2540-4AD model and the W1-2540-4 specification before ordering.
EVA Laminated Glass Applications and Decorative Interlayers
Decorative Glass With Silk, Fabric and Metallic Braid
The machine can be used to develop decorative laminated glass incorporating silk, cloth or metallic braid between glass layers with EVA film.
Different inserts create different visual effects. Material compatibility and processing conditions should be reviewed through sample preparation before production.
Glass Balustrades and Decorative Panel Examples
The application collage shows a glass staircase balustrade, a glass panel edge and decorative panels with different finishes.
Use these examples to discuss your intended appearance and glass construction. Application suitability depends on the complete glass assembly, installation requirements and relevant testing.
Discuss Performance Requirements for Your Glass Assembly
The original product information refers to sound insulation, thermal insulation, explosion resistance and bullet resistance. These properties depend on the complete glass construction and must be supported by the relevant design and testing.
If your project requires a specified performance level, provide the applicable standard and acceptance criteria so the proposed glass assembly and process can be reviewed.
Eworld Glass Processing Equipment and Project Support
Factory and Equipment Supply
Shandong Eworld Machine Co., Ltd. provides glass processing equipment, window and door equipment, and CNC equipment.
For EVA glass lamination projects, we help customers review machine sizes, proposed glass constructions and workshop requirements. Contact us to discuss the equipment specification and the information needed for your quotation.
Quality Management and Machinery Documents
The document collage displays quality management and machinery conformity documents.
Ask us for the documents applicable to the exact machine model and configuration under consideration. Review document scope, model coverage and validity against your purchasing requirements.
Exhibition Meetings and Customer References
The exhibition collage shows Eworld booth activities and visitor meetings, including the 2023 Türkiye exhibition.
The customer-reference collage contains visitor photographs and review screenshots relating to different equipment. For this product, request references relevant to EVA glass lamination and your intended application.
EVA Glass Laminating Machine Service and FAQs
Workshop Planning, Installation and Training
We provide equipment consultation and can discuss workshop floor planning, equipment layout and connections with other glass processing machines.
Our service information includes engineer-assisted installation, adjustment and operation training, together with English manuals and video tutorials. Confirm the service scope and delivery arrangements for your selected configuration before ordering.
Which Glass Sizes Can the Listed Models Process?
The listed maximum glass sizes are 2000 × 3000 mm, 3660 × 2440 mm and 2500 × 4000 mm. Compare the specifications and confirm the exact model and configuration with us.
Can the Machine Process Decorative Interlayers?
The product information lists silk, fabric and metallic braid as decorative inserts used with EVA film. Review the proposed material combination and sample results before starting production.
Do You Provide Operation Training?
We can discuss installation, adjustment and operation training arrangements. English manuals and video tutorials are also listed in our service information. Confirm the training method and scope in your quotation.
What Are the Delivery Time and Payment Options?
Delivery depends on the selected model, configuration and production schedule. Contact us to confirm the current lead time and payment arrangements before placing an order.
What Warranty and Technical Support Are Available?
Please request the warranty terms for the selected machine, including covered components, exclusions, consumable supply and technical support arrangements. The agreed terms should be recorded in the quotation and purchase agreement.
Request an EVA Glass Laminating Machine Configuration
Send us your glass dimensions, layer arrangement, EVA film details, decorative inserts and local power supply. Include your workshop layout if you need help reviewing installation space.
