HP3624

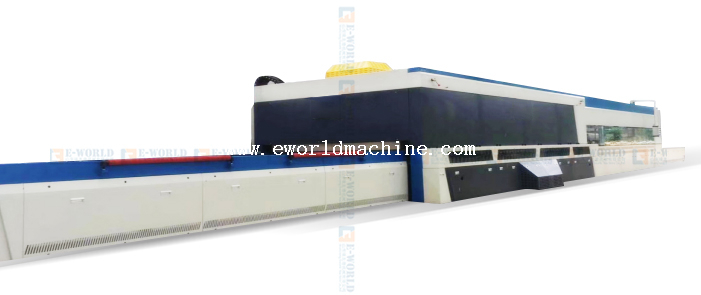

Glass Tempering furnace is composed of loading section 、heating section 、 flat tempering section ,and unloading section , besides that , it also includes : high pressure centrifugal fan , air supply pipe ,air collector 、gas pipe 、electrical control cabinet and operating table etc .
The operators place the glass sheets on the loading section ,then press down the button, then the transmission system will automatically send the glass sheets on the rollers into the heating furnace ; The furnace transmission system can keep the glass sheets continuous moved forward on the siliceous ceramic rollers and also can get even heating to up to an uniform temperature ( the required temperature may various for different glass sheets ); after out of the furnace , the glass sheets enter the high pressure section in certain speed and get fast cooling and tempering and then be sent to high pressure section and be cooled to room temperature ; finally the tempered glasses are sent to the unloading section for the operators receiving the tempered glass 、packaging and put them to the warehouse .
1、glass standard
maximum loading capacity 3600mm × 2400mm(4~19mm)
Minimum loading capacity 300mm × 200 mm
glass thickness 4~19mm
2、glass type
Suitable for clear float glass, tinted float glass, clear figured glass
3、tempered glass standard :Meet GB 15763.2-2005
4、生产能力:Productivity :( for reference)
thickness(mm) | 4 | 5 | 6 | 8 | 10 | 12 | 15 | 19 |
load/hour | 19 | 15 | 12 | 10 | 9 | 7 | 6 | 4 |
5、total heating power :518 KW ,Transformer: 630KVA
6、blower power : 220KWBIG BLOWER
7、TOTAL POWER 758 KW
8、Air compressor: 7KG/CM2, 0.8M3/min
9:Rate of finished product ≥98%
the error of the stree uniformity : The stress is little than 13Mpa for one piece of tempered glass,the stress is 7Mpa should be less than 7Mpa for one piece of half tempered glass
The stress pattern should be evenness, the glass margin area and middle part should have no obvious and centralized massive burning nether obvious optical distortion and edging phenomenon.
Requirement to the glass sheets: non – viewable air bubble. Non sundries; meet the standards of the super quality float glass; the glass should be chamfered, quality edged, washed and dried up.
*20years factory production experience*3 years machine warranty
*156 exported country experience
*20000 square meters Glass machine&upvc windows machine factory
*Shandong Eworld Machine Co., Ltd.
Shandong Eworld Machine Co., Ltd. is one of the famous and big manufacturers of glass equipment, windows equipment, CNC equipment.
Since its inception in 2002, and after many years of development and growth, the company is now playing a leading role in glass machinery and windows door machine inChina Eworld group has 2 factories, which are located in Jinan City. Advanced products, exquisite techniques, solid working, and cordial services
About glass deep processing machines, we are professional and have full set certificates.For every glass cutting machine, we have
serious quality control for every machine and every parts before it leaves our factory.
We went to many exhibitions in China to expand our reputation.
Welcome to visit our factory!If you have plan to come to China and see our machines, please contact us at least 15 days in advance
then we can arrange our
schedule and arrange to treat you.
No matter which transport method you choose, we will pick up you.
If you have any questions, please feel free to contact us.
24*7, we always be here !
FAQ
Question:Are you manufacture?
Answer:Yes,we are the professional manufacture which have more than 5 workshops.
Question: How about the service ?
Answer:
1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour
2).deliver max. days within 15 days
3).24 hours for after -sale serive
4).more than 12 years experience in this kind machine field
5).fluent english ,communication barrier free
Question:What’s the guarantee ?
Answer:
1).Our guarantee for 18 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).2 year quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.
Q: Do you provide equipment operation training?
Answer:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. Allof our engineers have passport.
Question:if our price is higher than another company or factories ?
Answer:please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts,sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous andreliable parts for the machines inside.
Question:How long is the delivery time ?
Answer:For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
Question: What is the payment ?
Answer:Any payment method you want,such as L/C,T/T,D/P,West-union and so on.
