Horizontal Insulating Heavy Duty Glass Cleaning Machine

Horizontal Insulating Heavy Duty Glass Cleaning Machine

Quantity:
  • E-WD2000
  • Eworld

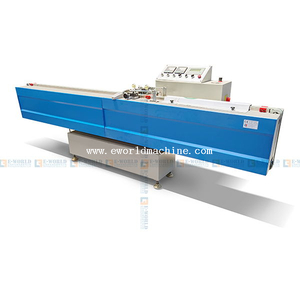

Horizontal Insulating Heavy Duty Glass Cleaning Machine


Glass Washing Machine Description
Glass washing machine is a key equipment in a glass processing factory. After been cut into exact sizes, glass should be washed and dried before transmitted into tempering/bending furnace and other processing machineries.

Horizontal glass washer features

The machine adopts horizontal structure, and consists of in-feed, washing, drying and out-feed section and air blower case and electric control box.

All inside machine frame is made of good quality metal, washing section uses channel steel. Sheet metal components and protection covers adopt stainless steel.


There are 3 pairs of brushes2 pairs sponge roller,2 pairs hot knife in washing section, which are transmitted by strong power motors

The bearings, in two ends of rubber roller, stand by aluminum alloy bar which is convenient to unload.



Eworld Machine Factory has developed various types of horizontal and vertical washing machine meeting diversified client requirements.

3.Technical parameter

Power supply:380v

Frequency: 50hz

Total power: 14.5 kw,

Work speed: 0-10.0m/min

Min glass size:200*400mm

Max glass size:2000*3000mm

Glass thickness:3--12mm

Dimension:4500*2250*1200mm

Weight:  2000 KG
