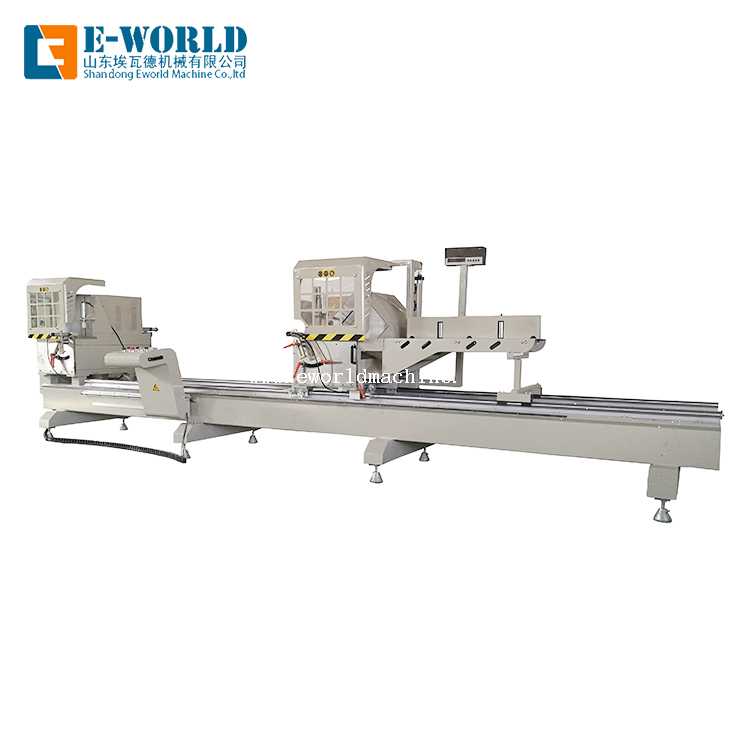

NC Meter Display Aluminum Profile Cutting Machine

NC Meter Display Aluminum Profile Cutting Machine(Digital display) is used for cutting aluminum profiles. The main spindle is manufactured by the specialized manufacturer. And the imported linear bearing motional pair is used to move the head horizontally. The blade feeding is hydraulic damping drive with large processing range. And the maximum cutting length is 4200mm. The cutting angle is 22.5 angle ,45 angle and 90 angles

Quantity:
  • LJZ2-500*4200
  • Eworld
  • 8475291900

NC Meter Display Aluminum Profile Cutting Machine

NC Meter Display Aluminum Profile Cutting Machine

1.Introduction

NC Meter Display Aluminum Profile Cutting Machine(Digital display) is used for cutting aluminum profiles. The main spindle is manufactured by the specialized manufacturer. And the imported linear bearing motional pair is used to move the head horizontally. The blade feeding is hydraulic damping drive with large processing range. And the maximum cutting length is 4200mm. The cutting angle is 22.5 angle ,45 angle and 90 angles



2.Feature

1.Imported carbide saw blade gives accurate processing and high endurance.



2.Imported linear bearing motion pair ensures steady processing accuracy.



3.Saw blade rotates smoothly due to high accurant main shaft.



4.Uniform speed feeding and smooth motion due to airdraulic damping.



5.Auto-opening guard shield ensures saft operation.



6.Auto-induction middle profile supporter and following convenient mak the loading and clamping convenient.



7.Adopts imported linear guide pair,with high accuracy and long service life.22.5°\45°and90°cutting is available

 17

Display Aluminum Profile Cutting Machine

3.Technical parameter



MODEL

500*4200

Input voltage

3 P380v,50hz

Input power

4.4Kw/6.5HP

Air pressure

0.5~0.8MPa/ 120psi

Air consumption

200L/min

Motor rotation speed

3400r/min

Cutting length

400~4200mm

Cutting length tolerance

+ 0.05

Cutting angles

90, 45, 67.5 degrees

Cutting angle tolerance

+0.1

Cutting width

10~130mm

Cutting height

10~300mm

Saw feeding speed

0~3m/min=0-120

Saw blade standard

500mmx4.4x30xZ120

Overall dimensions

5.5x1.7x1.6M
