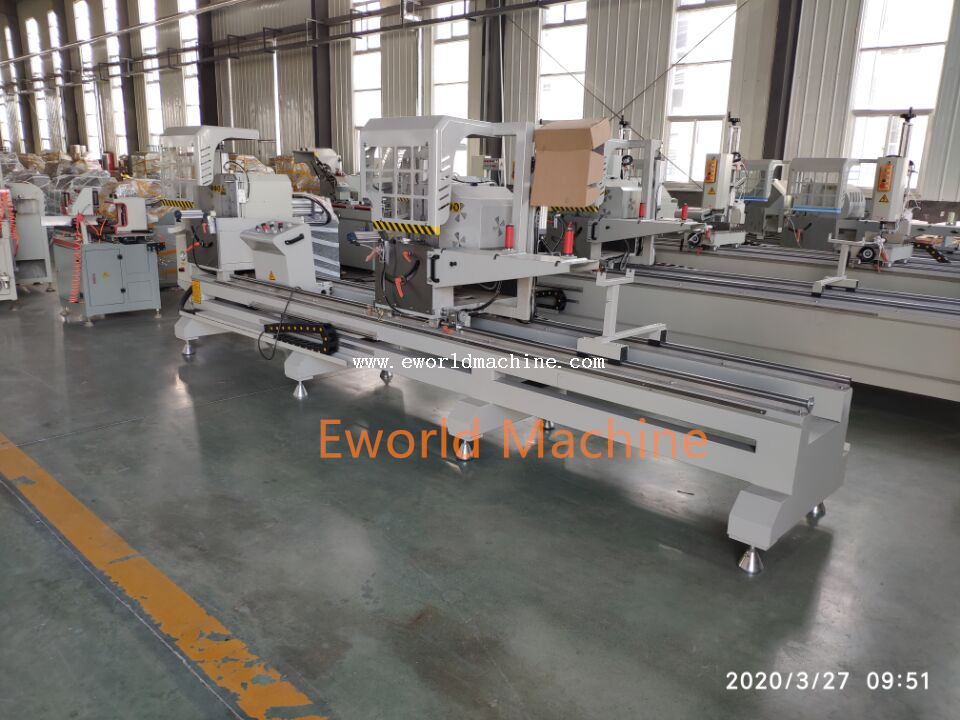

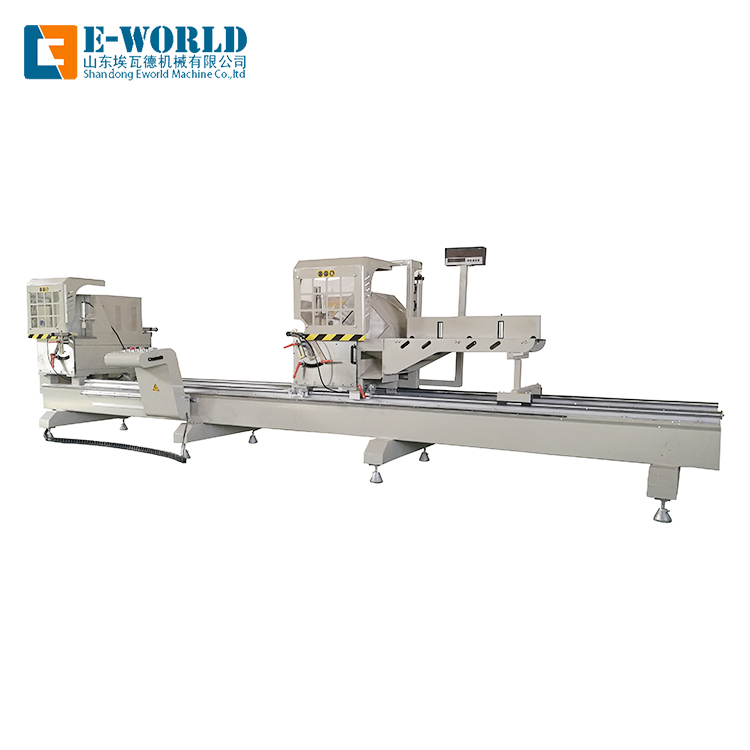

Digital Display Aluminum Profile Double Miter Saw

1.Introduction

Double-head precision miter Saw machine(Digital display) is used for cutting aluminum profiles. The main spindle is manufactured by the specialized manufacturer. And the imported linear bearing motional pair is used to move the head horizontally. The blade feeding is hydraulic damping drive with large processing range. And the maximum cutting length is 4200mm. The cutting angle is 22.5 angle ,45 angle and 90 angles

2.Feature

1.Imported carbide saw blade gives accurate processing and high endurance.

2.Imported linear bearing motion pair ensures steady processing accuracy.

3.Saw blade rotates smoothly due to high accurant main shaft.

4.Uniform speed feeding and smooth motion due to airdraulic damping.

5.Auto-opening guard shield ensures saft operation.

6.Auto-induction middle profile supporter and following convenient mak the loading and clamping convenient.

7.Adopts imported linear guide pair,with high accuracy and long service life.22.5°\45°and90°cutting is available

3.Technical parameter

MODEL 500*4200

Input voltage 3 P，380v,50hz

Input power 4.4Kw/6.5HP

Air pressure 0.5~0.8MPa/ 120psi

Air consumption 200L/min

Motor rotation speed 3400r/min

Cutting length 400~4200mm

Cutting length tolerance + 0.05

Cutting angles 90, 45, 67.5 degrees

Cutting angle tolerance +0.1

Cutting width 10~130mm

Cutting height 10~300mm

Saw feeding speed 0~3m/min=0-120

Saw blade standard 500mmx4.4x30xZ120

Overall dimensions 5.5x1.7x1.6M
