CNC-500*4200
Eworld

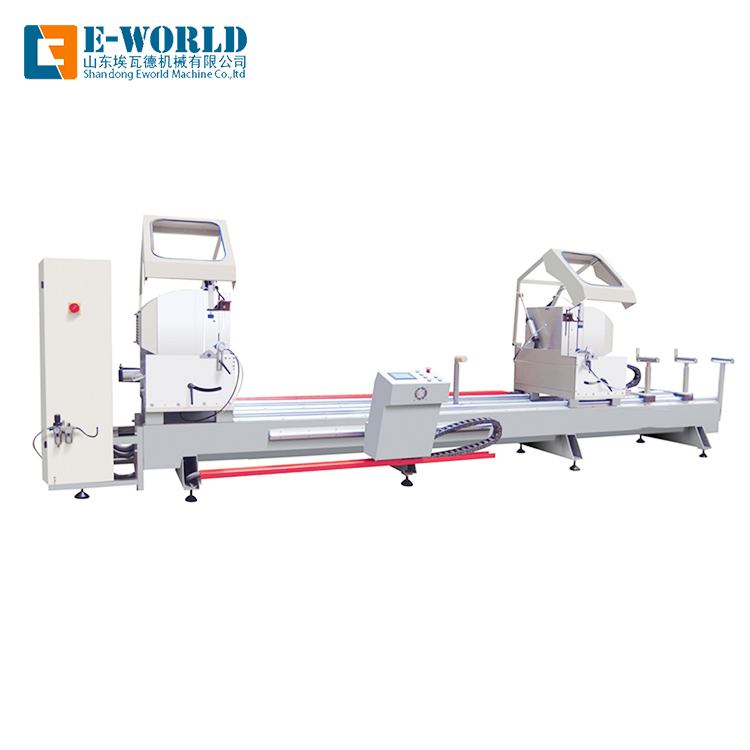

CNC aluminum profile double head cutting saw
Introduction
Miter Saws work equipment used for cutting. Miter saws are very important for various types of carpentry work. They are used to create the perfect piece to form the elbow and the side frame. Basic miter saw that has a limited capacity cuts. Miter saws that have different types to provide the most versatile cutting options. But, from various types of miter saw, double miter saw is the most applications.
Why should you choose miter double saw? double miter saw technology uses two saw blades that provide two complementary bevel miter cuts without resetting the head. This feature will obviously vary depending on manufacturer but usually double miter saws provide such benefits as follows:
· Enable the production of continuous production and repetitive high volume
· Provide minute variations in the cutting
· May calibrated scales and fences
· Hold the tweezers,
· Dust filters, connection port or an internal system to collect dust
This tool is an integral component of how double miter saw equipment will function, whether built by a machine, you can achieve, as bolster precision, smooth cutting, reducing waste of materials, the ability to cut wood, plastic, and various metals. In addition to providing manufacturers May:
· Improved features include semi-automatic
· Locking Security
· Front service access for maintenance and easy changeovers
This Advantage of double miter saw products. You can compare that with another type miter saws. Do not hesitate, to purchase this product, because it will help facilitate your work.
01.Control :
The user-friendly control panel installed on the various models ,runs on bearing and allows corrected positioning of the moving cutting heads according to cutting specifications.The work cycle is optimized through creation of the cutting lists thus reducing scrap as well as workpiece loading/unloading times
FEATURES:
Two heads with cutting angles 90, 45, 67.5 (22.5) degrees are available.
Automatic feed and cycle run.
Touch screen and NC control system, with high accuracy.
Digital display with high positioning accuracy.
Cushioned pneumatic clamping by push button.
Rack and pinion drive on traveling head with digital positioning.
SPECIFICATIONS:
MODEL | LJZ2-CNC-500*4200 |
Input voltage | 3 P,380V ,50HZ |
Input power | 4.4Kw/6.5HP |
Air pressure | 0.5~0.8MPa/ 120psi |
Air consumption | 200L/min |
Motor rotation speed | 3400r/min |
Cutting length | 400~4200mm |
Cutting length tolerance | + 0.005 |
Cutting angles | 90, 45, 67.5 degrees |
Cutting angle tolerance | +、-0.1 |
Cutting width | 10~130mm |
Cutting height | 10~300mm |
Saw feeding speed | 0~3m/min |
Saw blade standard | 500x4.4x30xZ120 |
Overall dimensions | 6.3x1.7x1.6M |
*20years factory production experience*3 years machine warranty
*156 exported country experience
*20000 square meters Glass machine&upvc windows machine factory
*Shandong Eworld Machine Co., Ltd.
Shandong Eworld Machine Co., Ltd. is one of the famous and big manufacturers of glass equipment, windows equipment, CNC equipment.
Since its inception in 2002, and after many years of development and growth, the company is now playing a leading role in glass machinery and windows door machine inChina Eworld group has 2 factories, which are located in Jinan City. Advanced products, exquisite techniques, solid working, and cordial services
About glass deep processing machines, we are professional and have full set certificates.For every glass cutting machine, we have
serious quality control for every machine and every parts before it leaves our factory.
We went to many exhibitions in China to expand our reputation.
Welcome to visit our factory!If you have plan to come to China and see our machines, please contact us at least 15 days in advance
then we can arrange our
schedule and arrange to treat you.
No matter which transport method you choose, we will pick up you.
If you have any questions, please feel free to contact us.
24*7, we always be here !
FAQ
Question:Are you manufacture?
Answer:Yes,we are the professional manufacture which have more than 5 workshops.
Question: How about the service ?
Answer:
1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour
2).deliver max. days within 15 days
3).24 hours for after -sale serive
4).more than 12 years experience in this kind machine field
5).fluent english ,communication barrier free
Question:What’s the guarantee ?
Answer:
1).Our guarantee for 18 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).2 year quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.
Q: Do you provide equipment operation training?
Answer:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. Allof our engineers have passport.
Question:if our price is higher than another company or factories ?
Answer:please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts,sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous andreliable parts for the machines inside.
Question:How long is the delivery time ?
Answer:For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
Question: What is the payment ?
Answer:Any payment method you want,such as L/C,T/T,D/P,West-union and so on.
